Fluid Line/Hose: Service and Repair

ATF Cooler Hoses Replacement

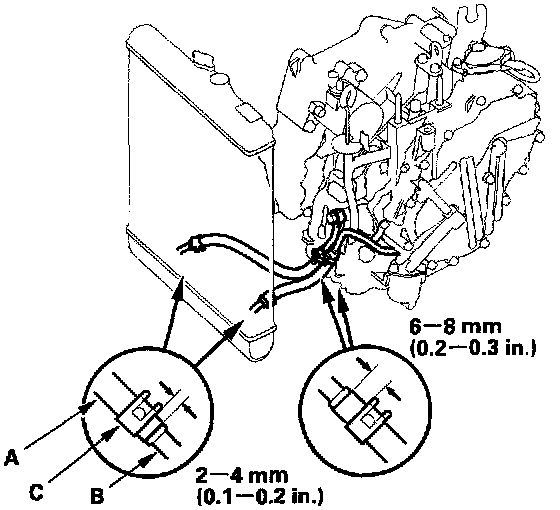

1. Lubricate hose and line joints with ATF, then install the ATF cooler hoses (A) to the ATF cooler lines (B).
2. Secure the ATF cooler hoses with the clips (C) in the position shown.
