Shift Lock Solenoid Replacement
Shift Lock Solenoid Replacement1. Remove the front console.
2. Disconnect the shift lock solenoid connector.

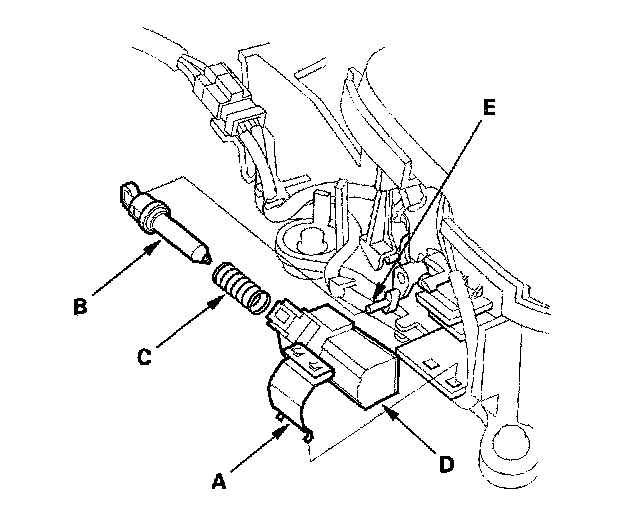

3. Pry the shift lock solenoid clamp (A) with a screwdriver, and remove it.
4. Remove the shift lock solenoid.
5. Install the shift lock solenoid plunger (B) and plunger spring (C) in the new shift lock solenoid (D).
6. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop (E).
7. Secure the shift lock solenoid with the solenoid clamp.
8. Connect the shift lock solenoid connector.
9. Install the front console.
