Center Console Rear Cover Replacement
Center Console Rear Cover ReplacementNOTE: Take care not to scratch the center console.
1.
Remove the center console.
2.

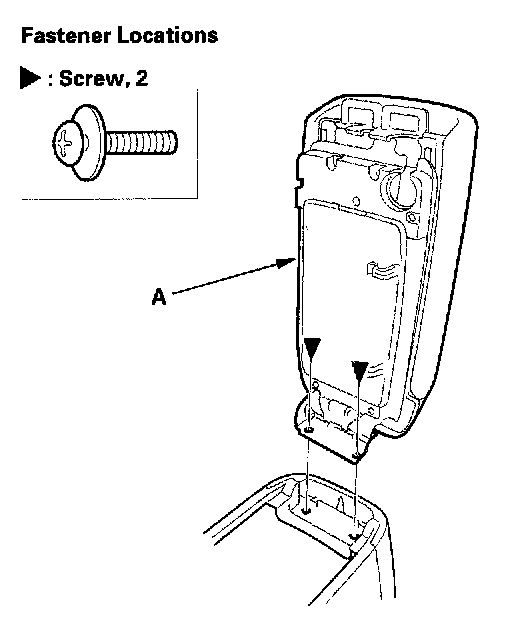

Open the armrest (A) and remove the hinge mounting screws, then remove the armrest.
3.

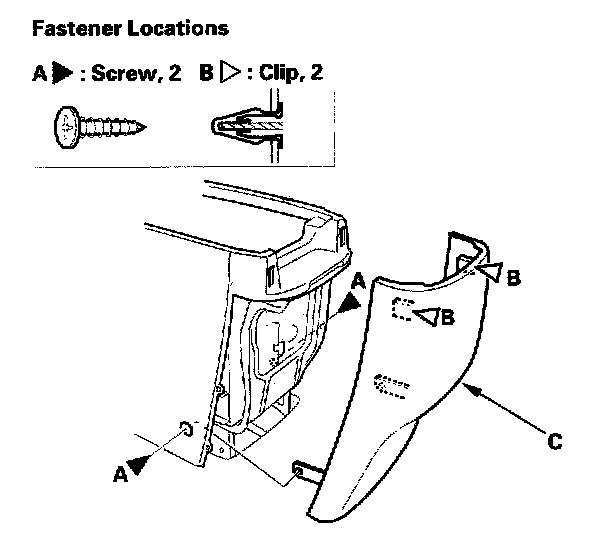

Remove the screws (A) and detach the clips (B) then remove the center console rear cover (C).
4.
Install the cover the reverse order of removal.
