Child Seat Tether Attachment: Service and Repair

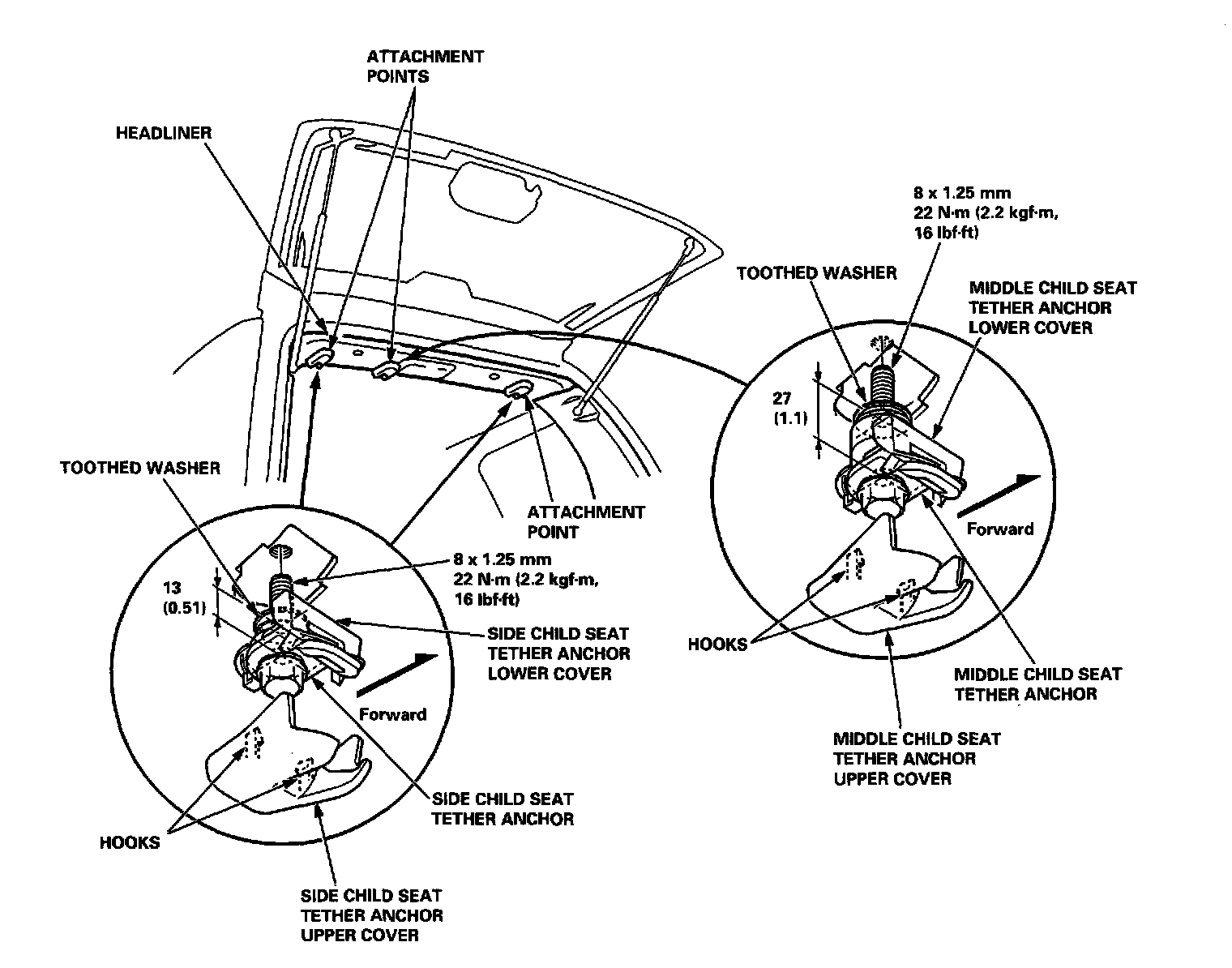

Child Seat Tether Anchor Removal/Installation




1. Release the hooks, and remove the child seat tether anchor covers from the anchors on the rear of the headliner. The middle cover is different than the side covers.
2. Remove the child seat tether anchors. Do not remove the toothed washers from the tether anchors. The middle anchor is different than the side anchors.
3. Install the anchors in the reverse order of removal. The anchor with the longer spacer goes in the middle.
