Symptom Related Diagnostic Procedures

Symptom Troubleshooting Index

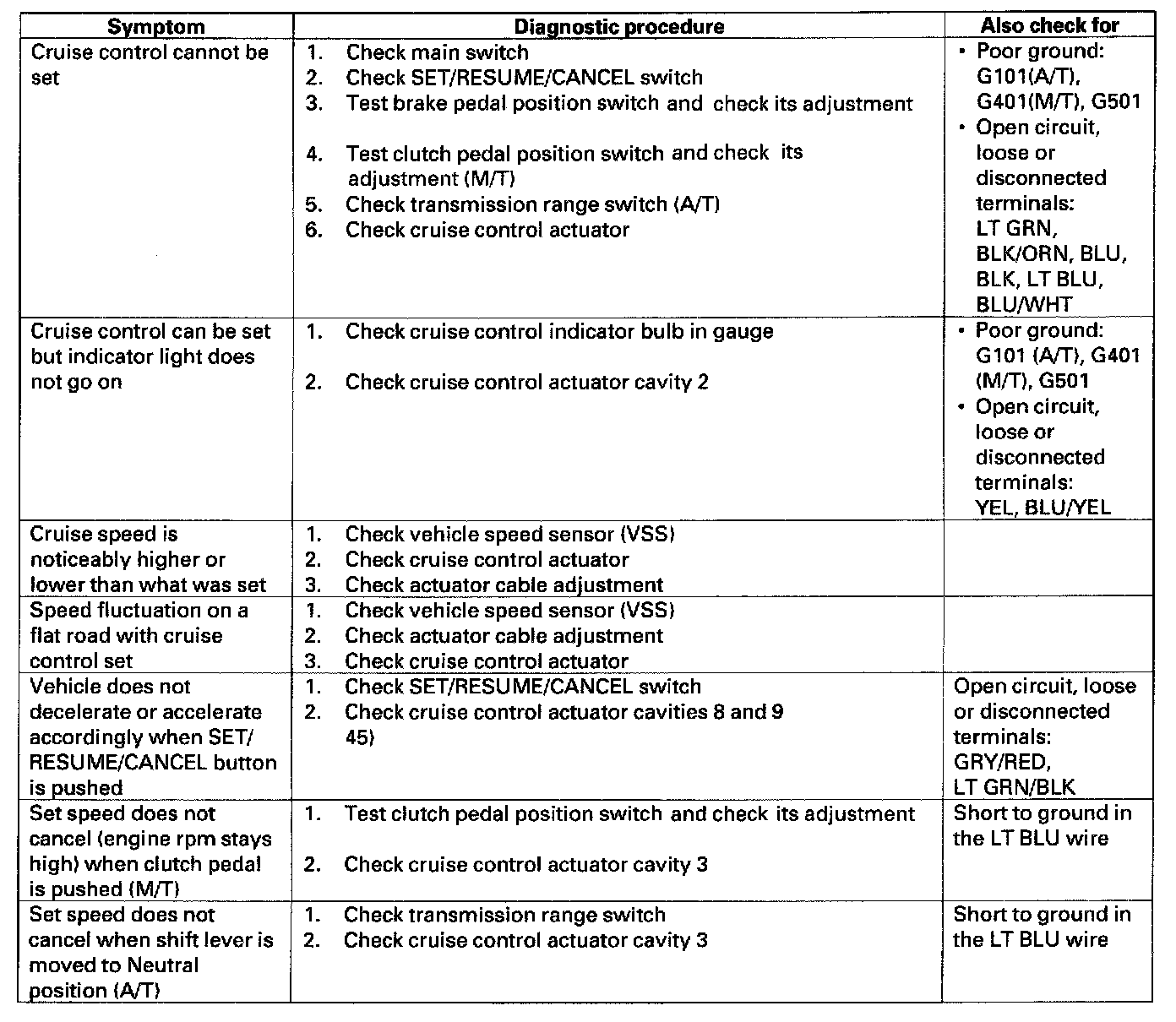

Symptom Troubleshooting Index Part 1:

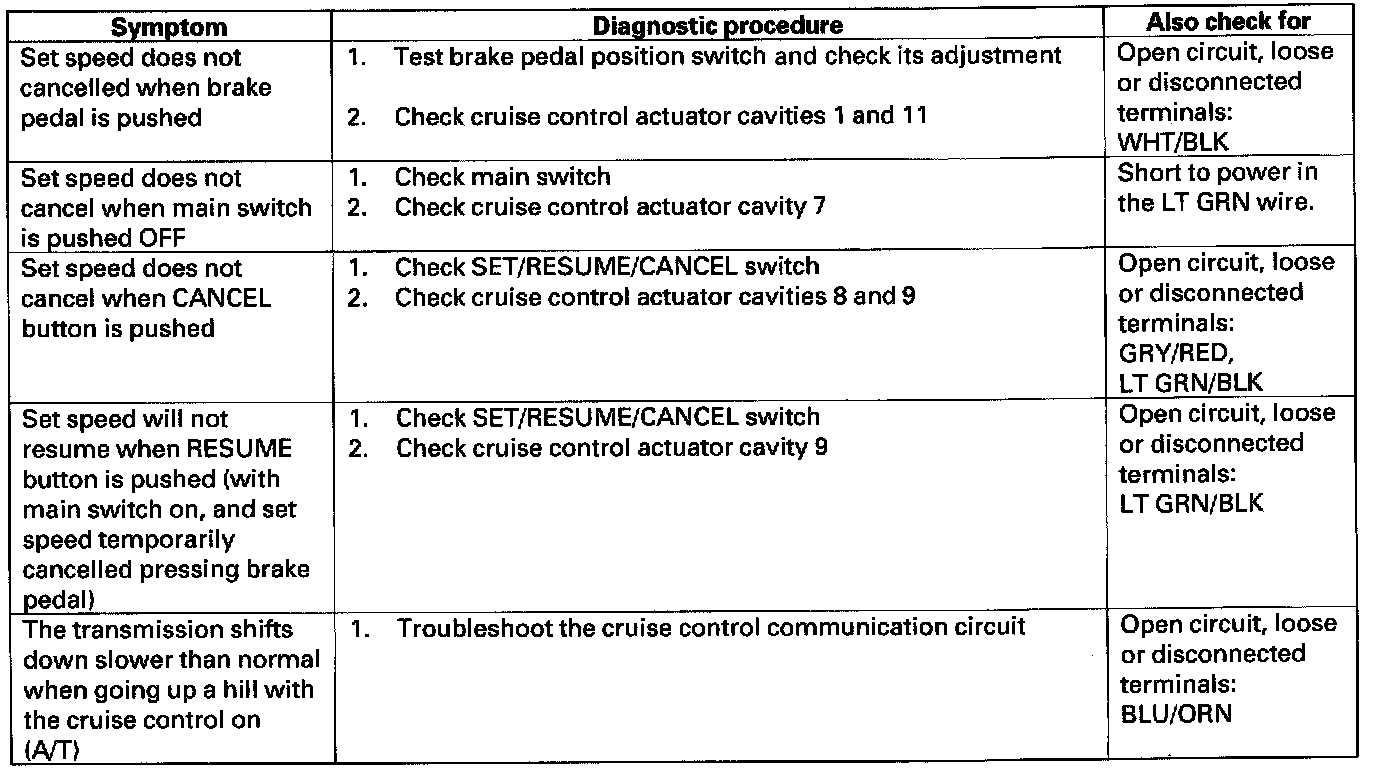

Symptom Troubleshooting Index Part 2:




Except 2-door D17A1, D17A2 engines:

NOTE:
- The numbers in the table show the troubleshooting sequence.
- Before troubleshooting.
- check the No.10 (7.5 A) and No.4 (10 A) fuses in the under-dash fuse/relay box, and the No.7 (15 A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.

Symptom Troubleshooting Index Part 1:

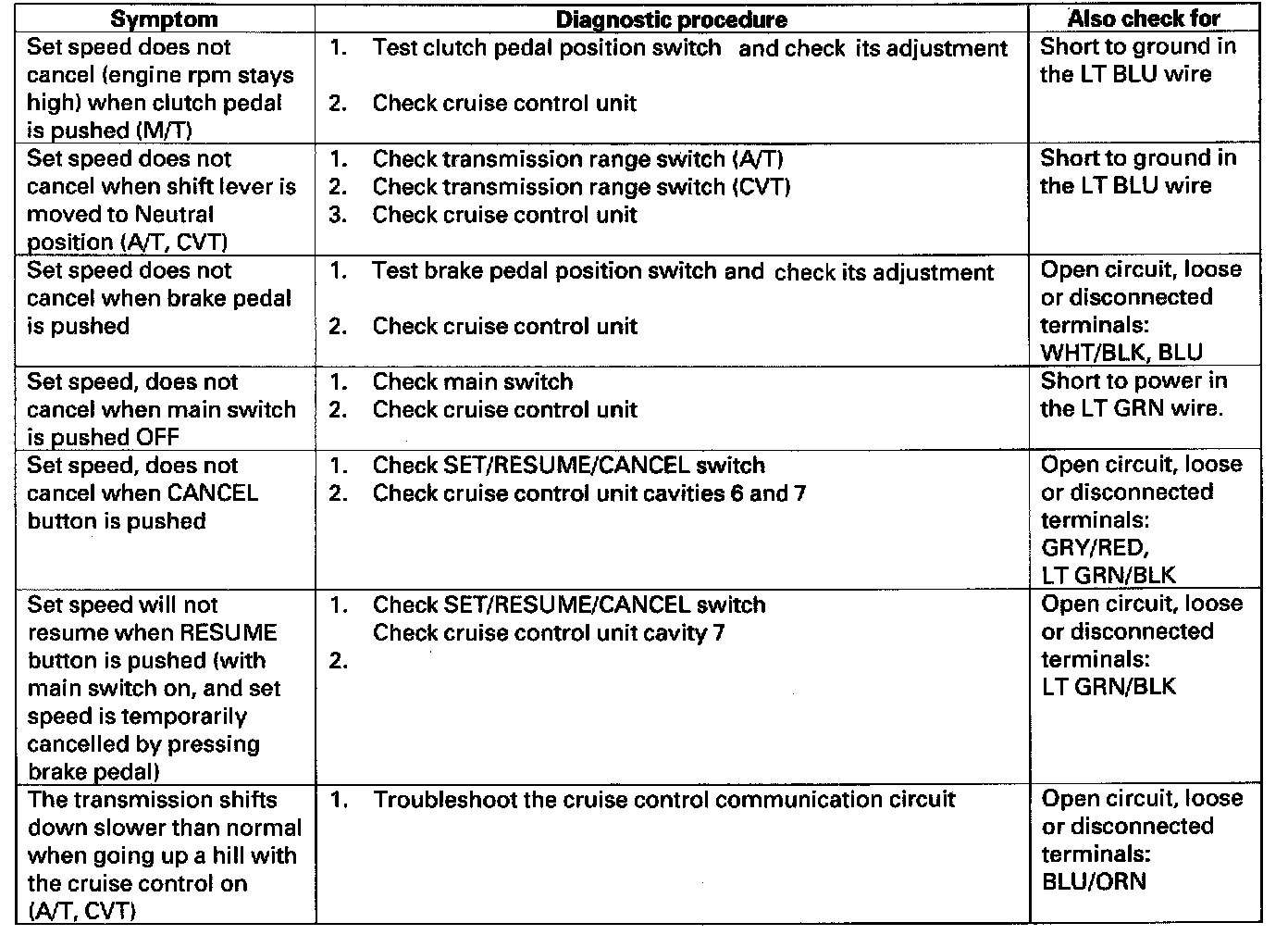

Symptom Troubleshooting Index Part 2:




2-door D17A1, D17A2 engines:

NOTE:
- The numbers in the table show the troubleshooting sequence.
- Before troubleshooting.
- check the No.10 (7.5 A) and No.4 (10 A) fuses in the under-dash fuse/relay box, and the No.7 (15 A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.
