Symptom Related Diagnostic Procedures

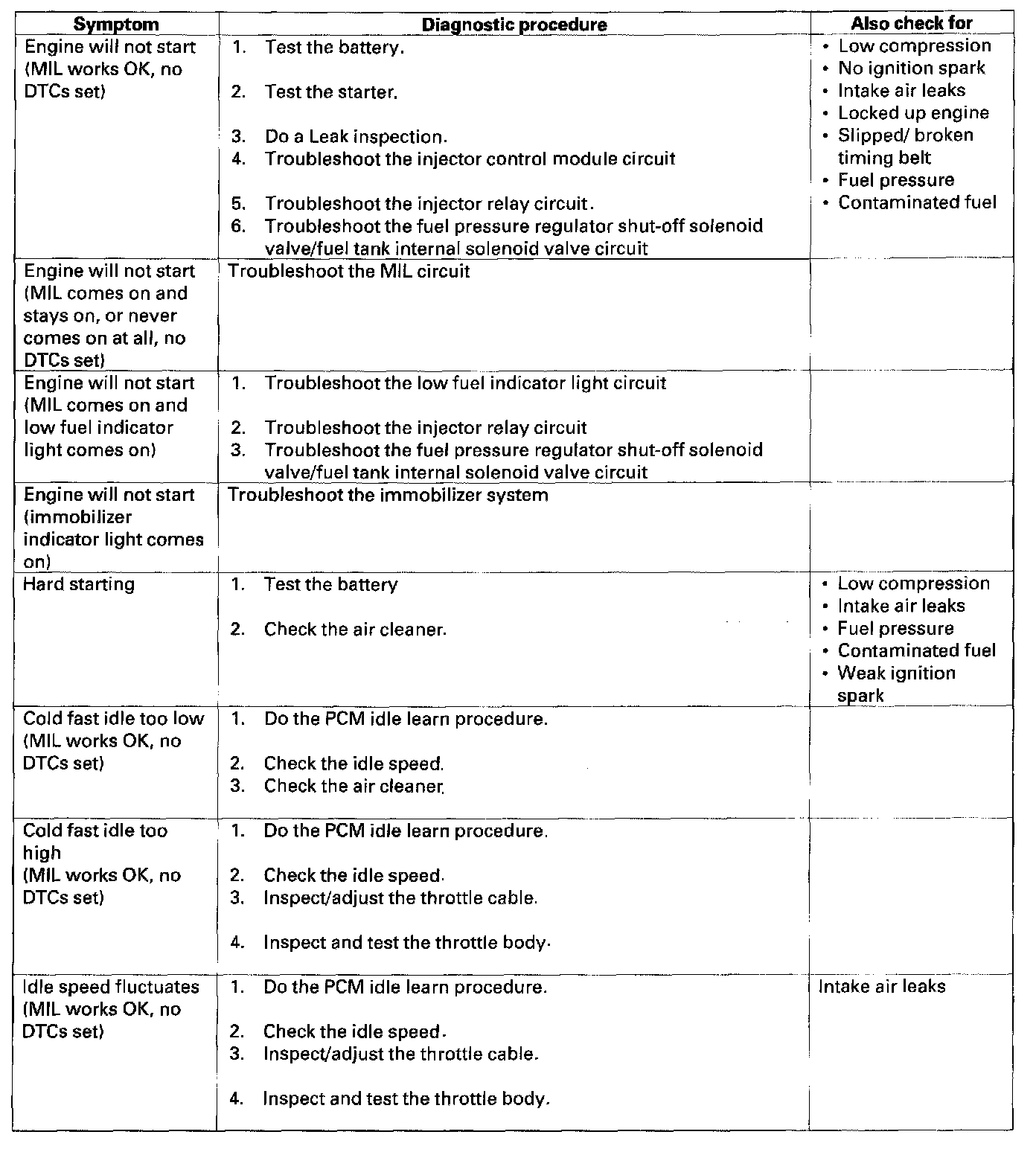

Symptom Troubleshooting Index Part 1:

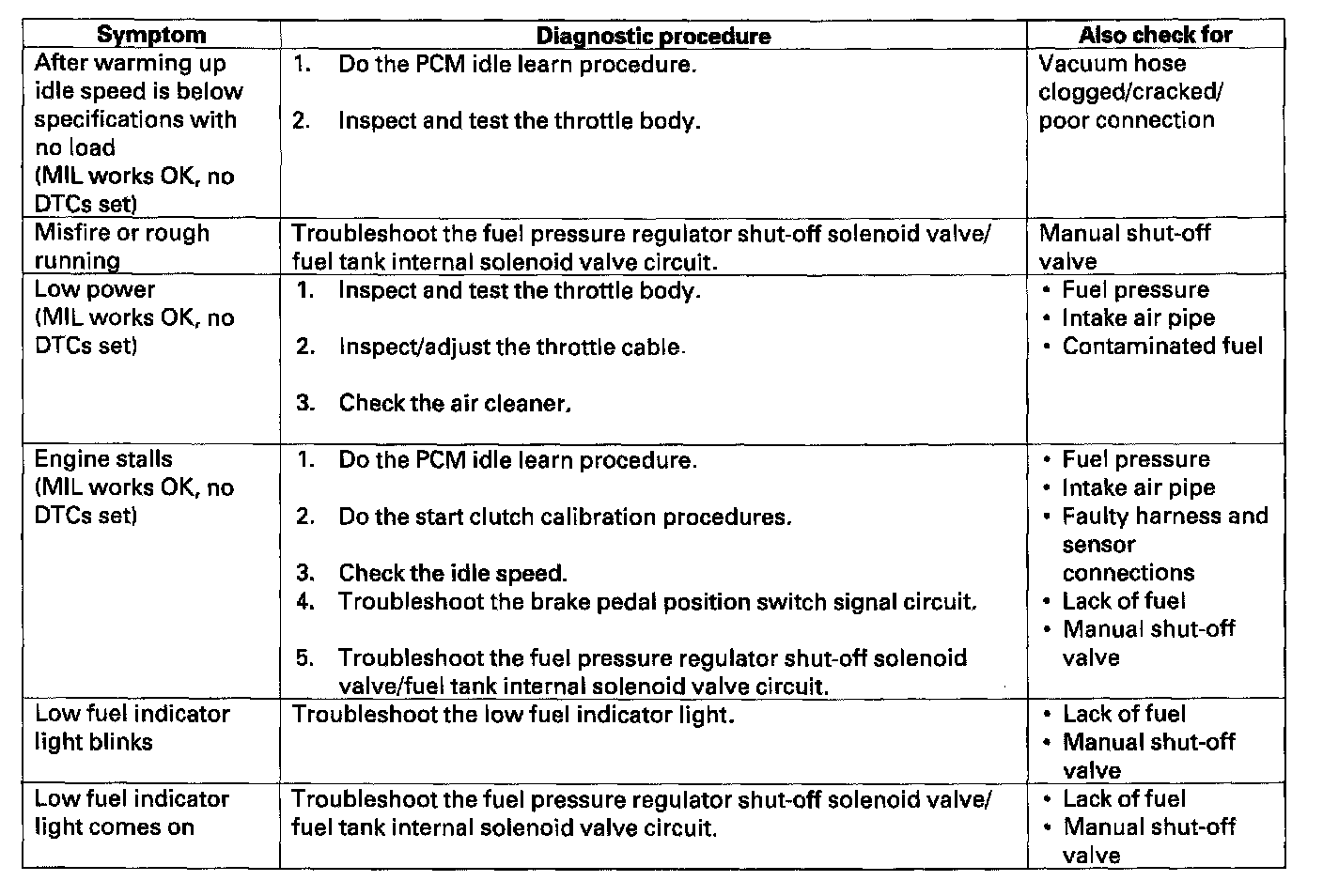

Symptom Troubleshooting Index Part 2:
Symptom Troubleshooting IndexWhen the vehicle has one of these symptoms, check the Diagnostic Trouble Code (DTC) with the scan tool. If there is no DTC, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.
