CVT Start Clutch Pressure Control Valve Assembly Replacement

CVT Start Clutch Pressure Control Valve Assembly Replacement

NOTE: If the CVT start clutch pressure control valve assembly and the CVT speed change control valve assembly at a same time, refer to CVT Speed Change Control Valve Assembly Replacement.

1. Remove the lower valve body assembly.

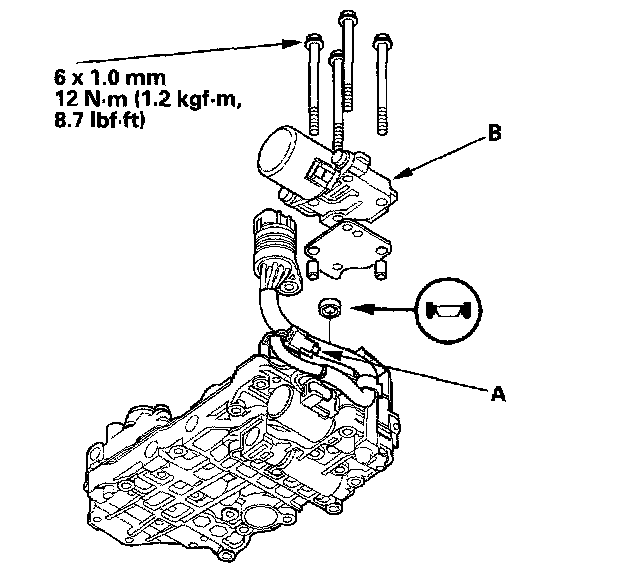

2. Disconnect CVT start clutch pressure control valve assembly connector (A).
3. Remove the four bolts, and remove the CVT start clutch pressure control valve assembly (B).
4. Install the new valve assembly (four bolts).
5. Connect CVT start clutch pressure control valve assembly connector.
6. Install the lower valve body assembly to the transmission.
