Honda
>>
2003
>>
Odyssey V6-3.5L
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

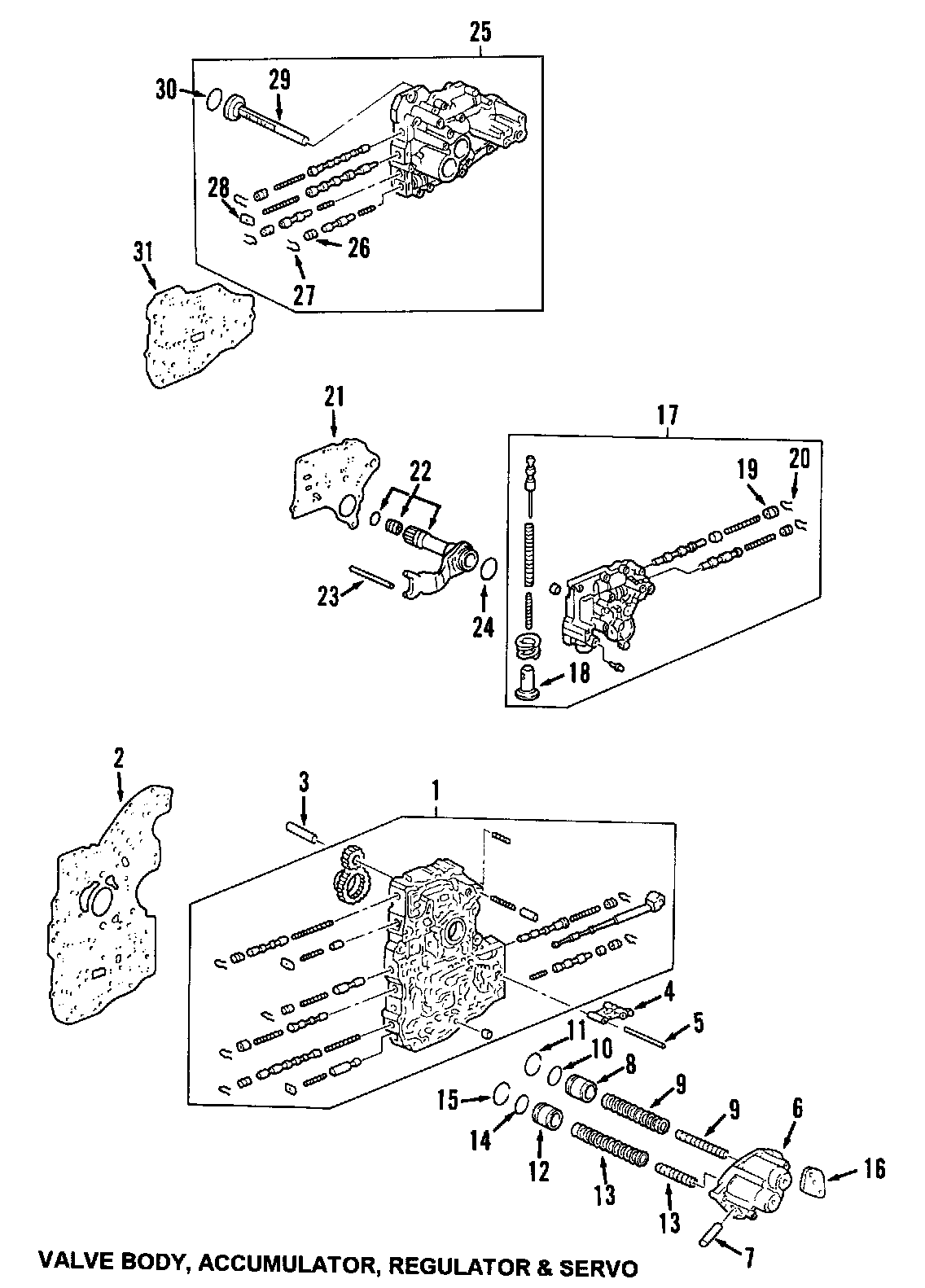

Valve Body Components:

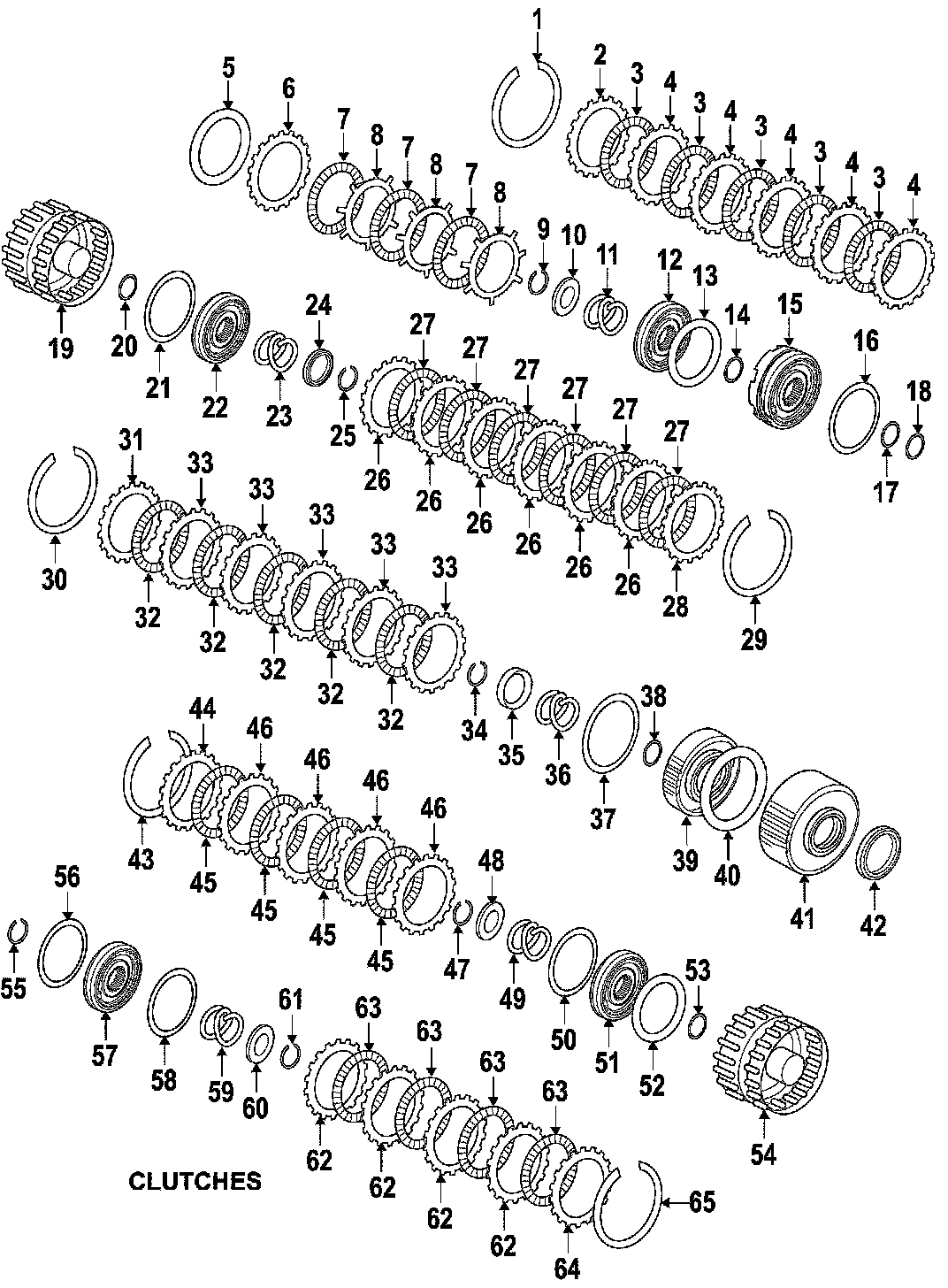

Clutches:

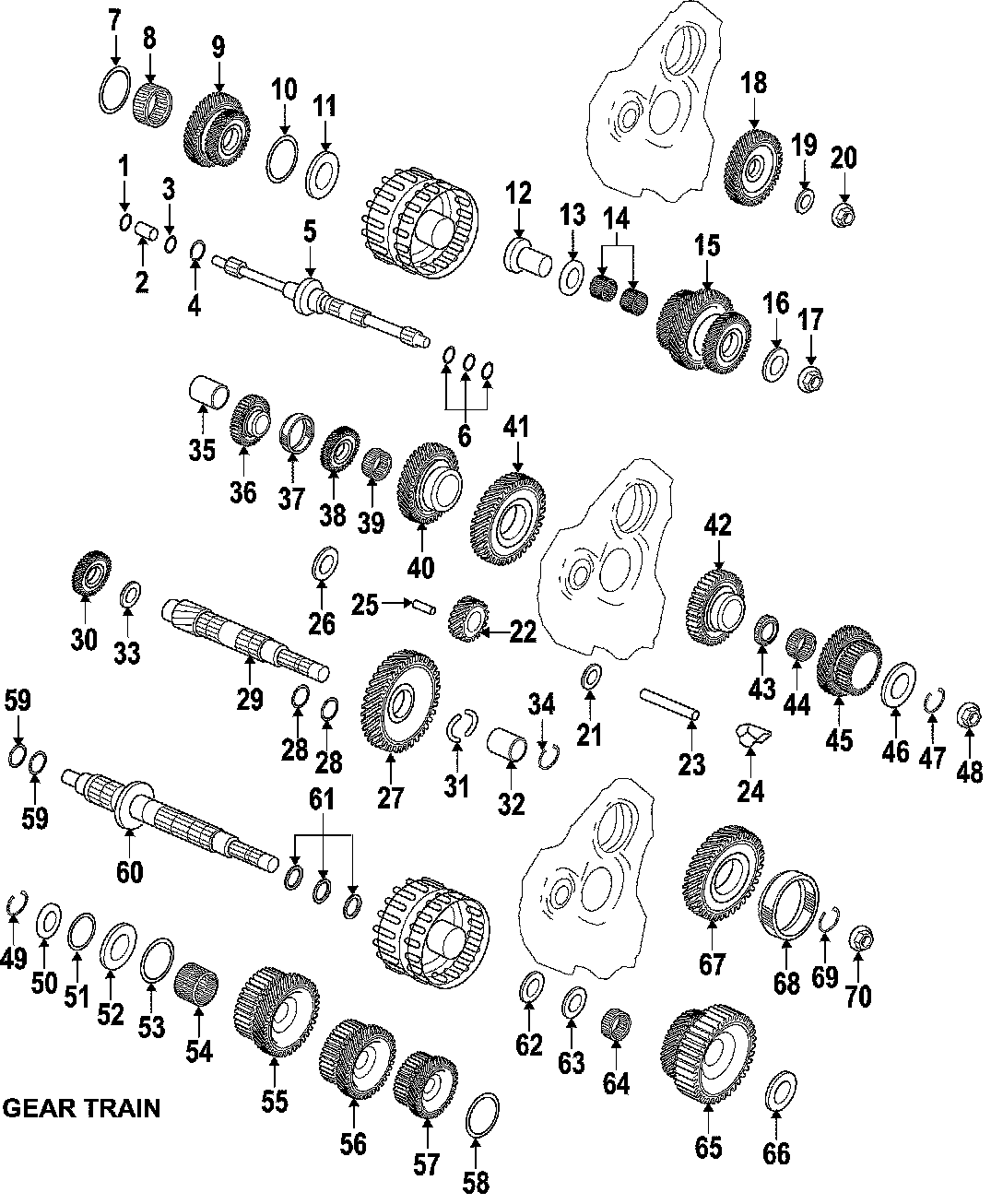

Gear Train:

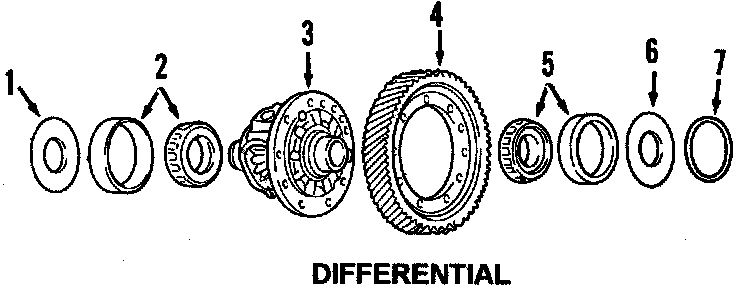

Differential:

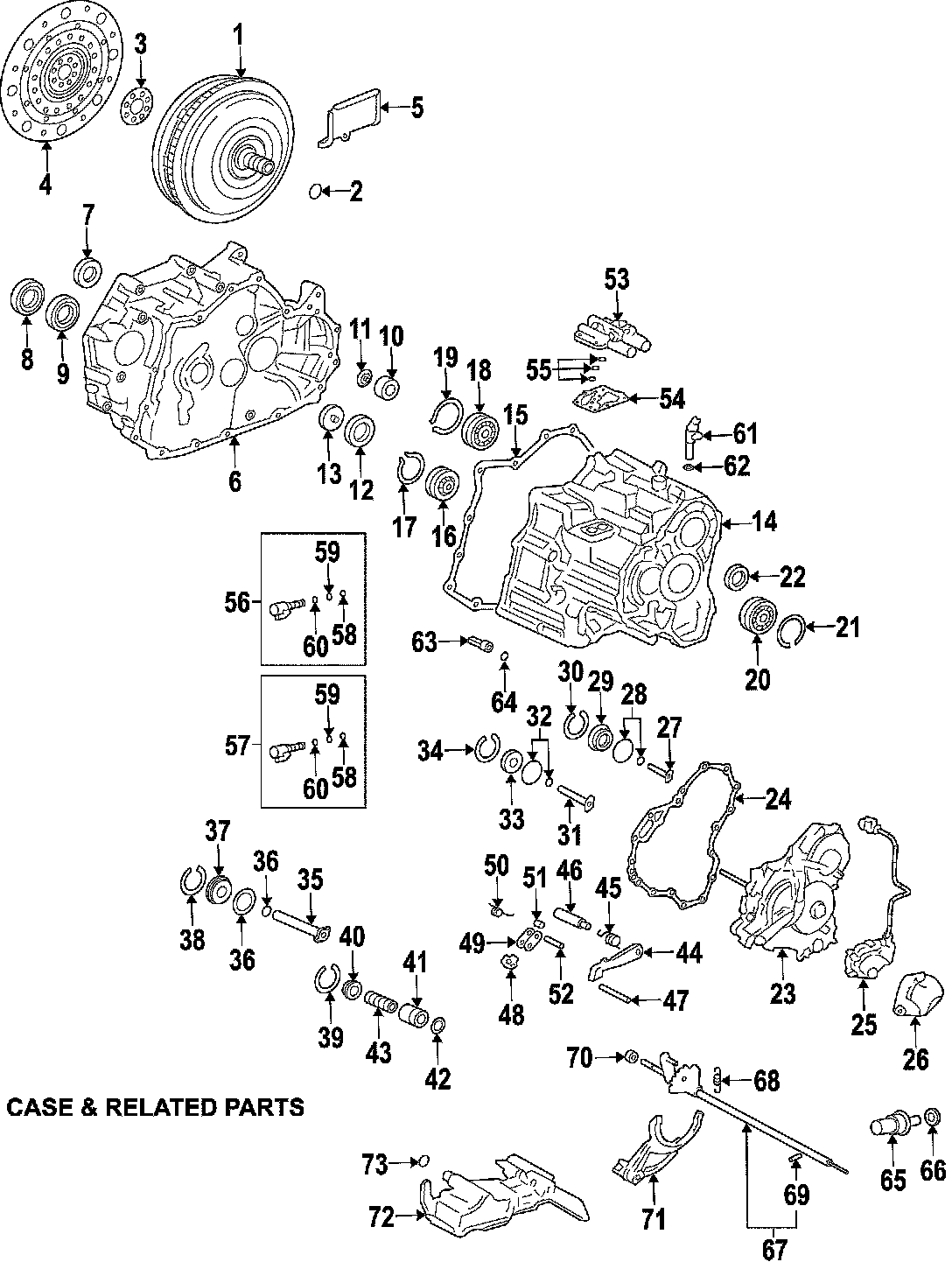

Case & Related Parts:
