Ex-L, 01-04 Ex

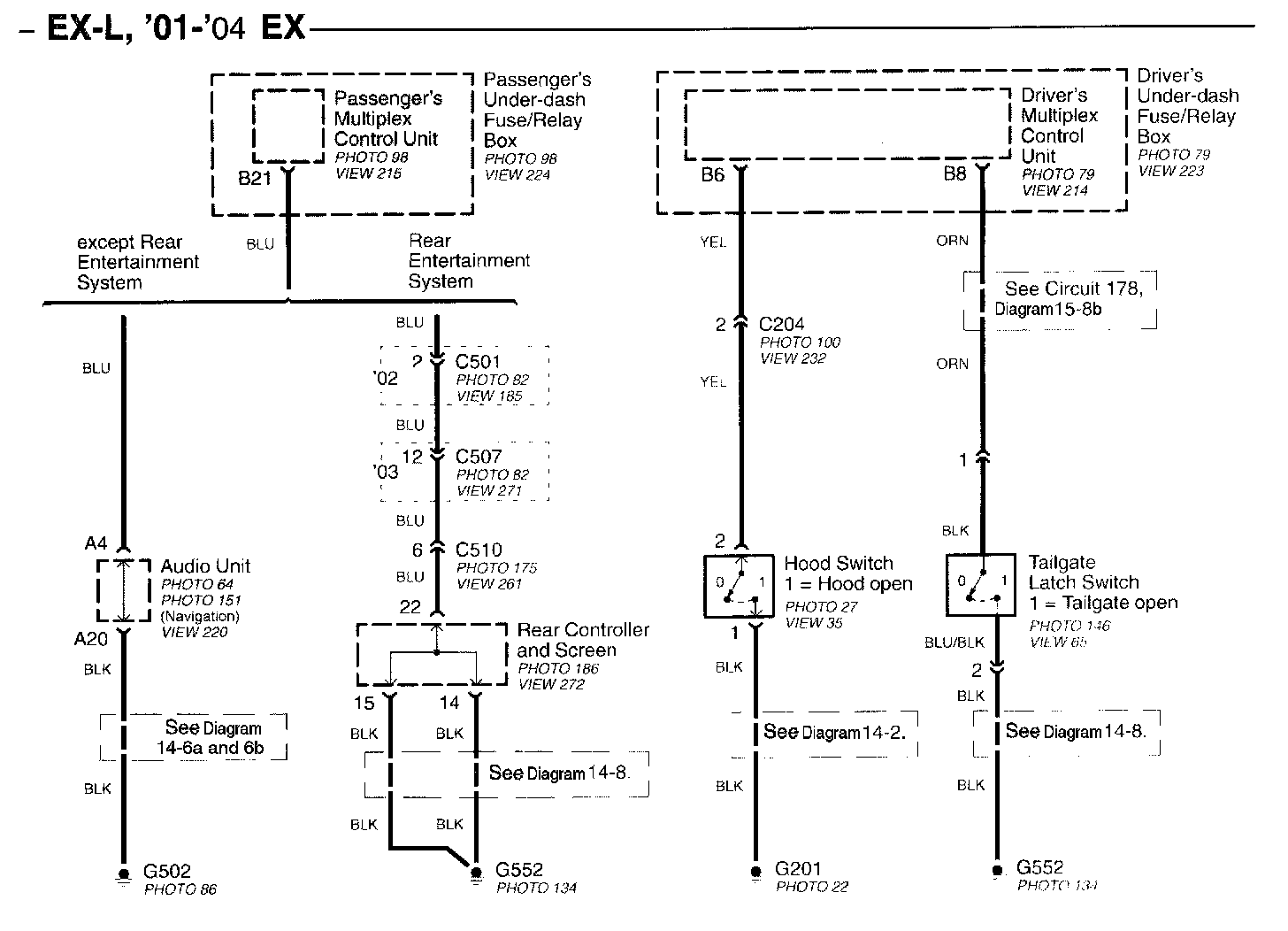

Diagram 130-21 (EX-L, 01-04 EX):





Diagram 130-22 (EX-L, 01-04 EX):





130-23 (EX-L, 01-04 EX):





Diagram 130-24 (EX-L, 01-04 EX):





Diagram 130-25 (EX-L, 01-04 EX):





Diagram 130-26 (EX-L, 01-04 EX):






Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
