Home >> Honda >> 2003 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Circuit Diagrams

Circuit Diagrams

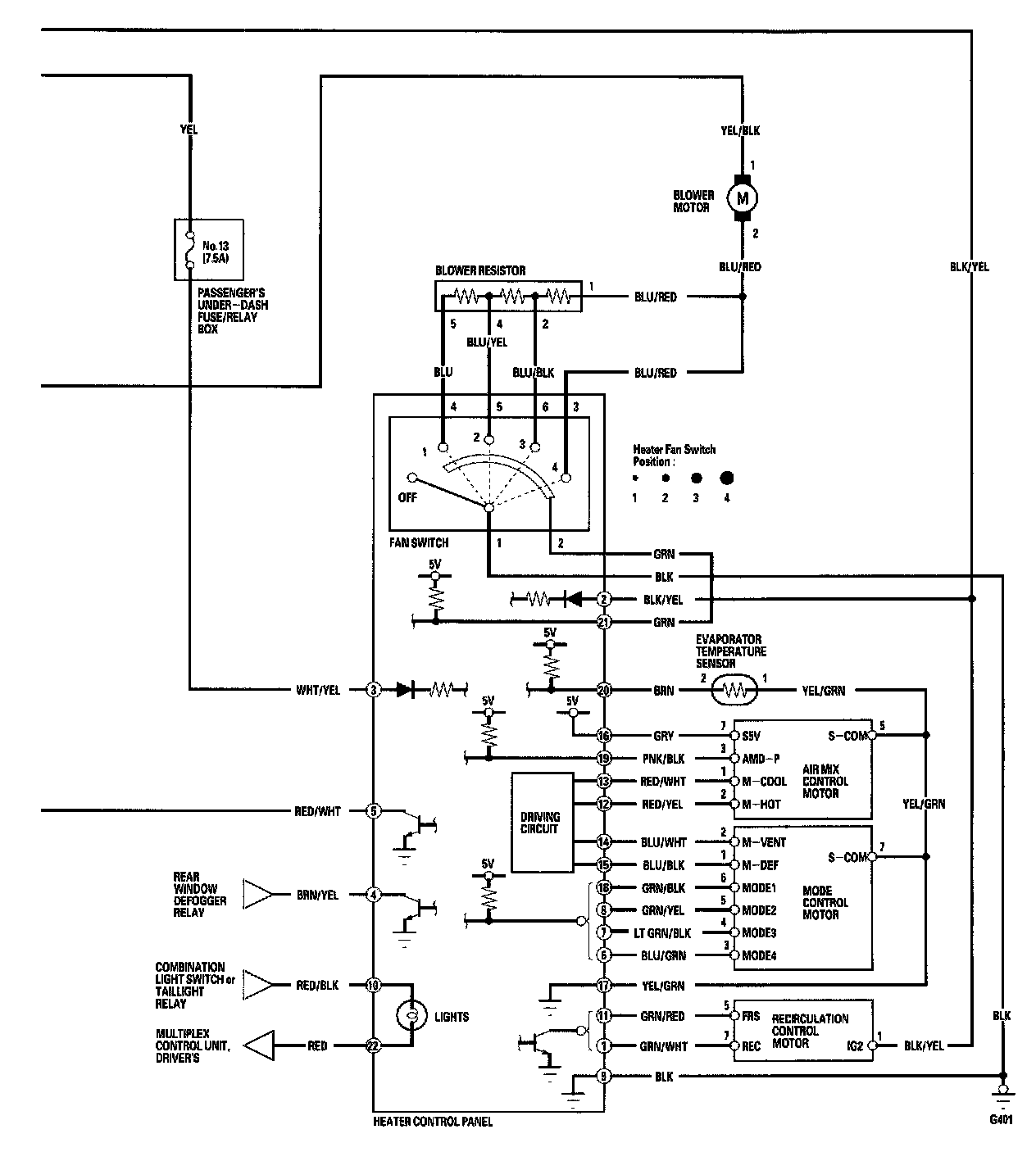

Heating And Air Conditioning - Circuit Diagram Part 1:




Heating And Air Conditioning - Circuit Diagram Part 2:




Climate Control - Circuit Diagram (Without Navigation System) Part 1:




Climate Control - Circuit Diagram (Without Navigation System) Part 2:




Climate Control - Circuit Diagram (With Navigation System) Part 1:




Climate Control - Circuit Diagram (With Navigation System) Part 2:




Rear Heater-A/C - Circuit Diagram:
