Front Passenger's Seat Wire Harness
>>
EX Without Navigation System) (SRS Branch)
EX Without Navigation System) (SRS Branch)
Harness Location View:
Harness Location View:

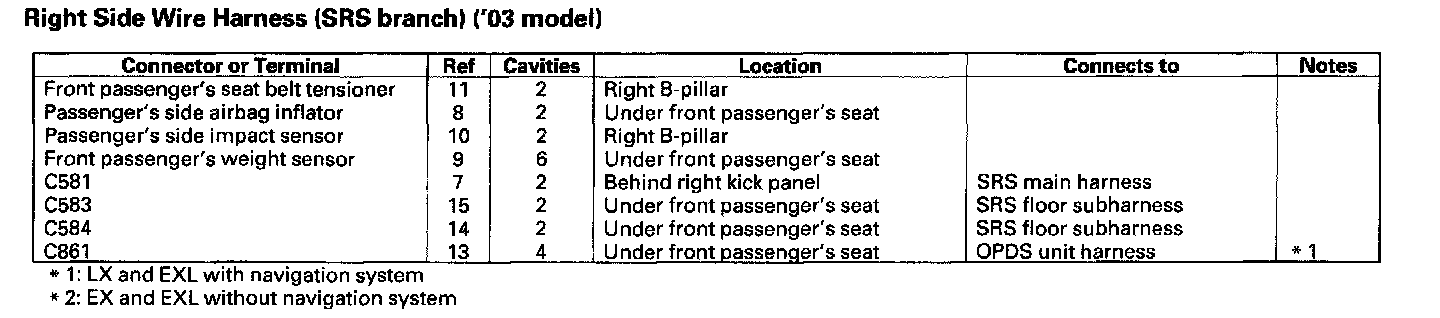

Right Side Wire Harness (SRS Branch) (03):
Right Side Wire Harness (SRS Branch) ('03 Model):
