OPDS Unit Harness
OPDS Unit Harness

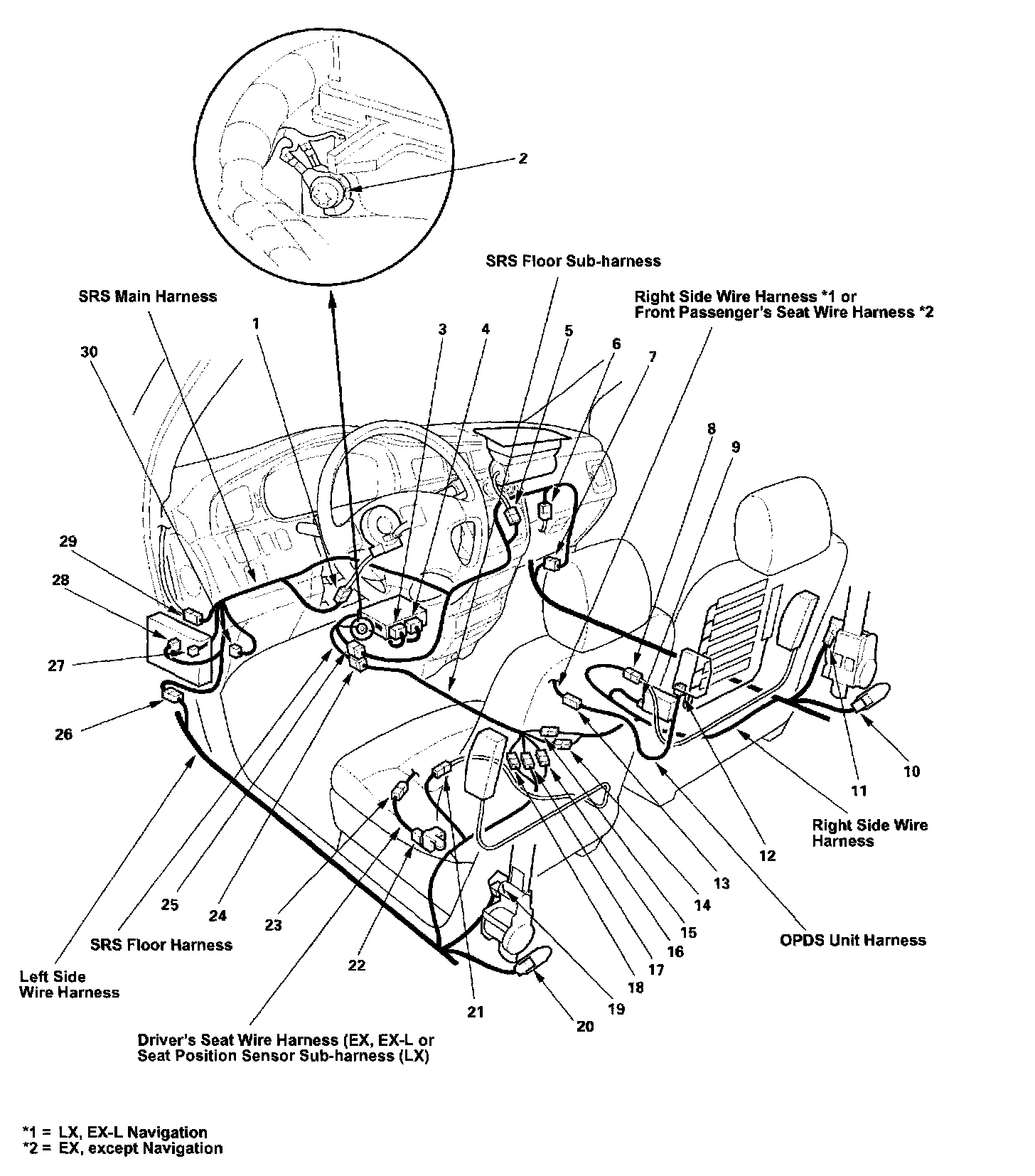

Harness Location View:

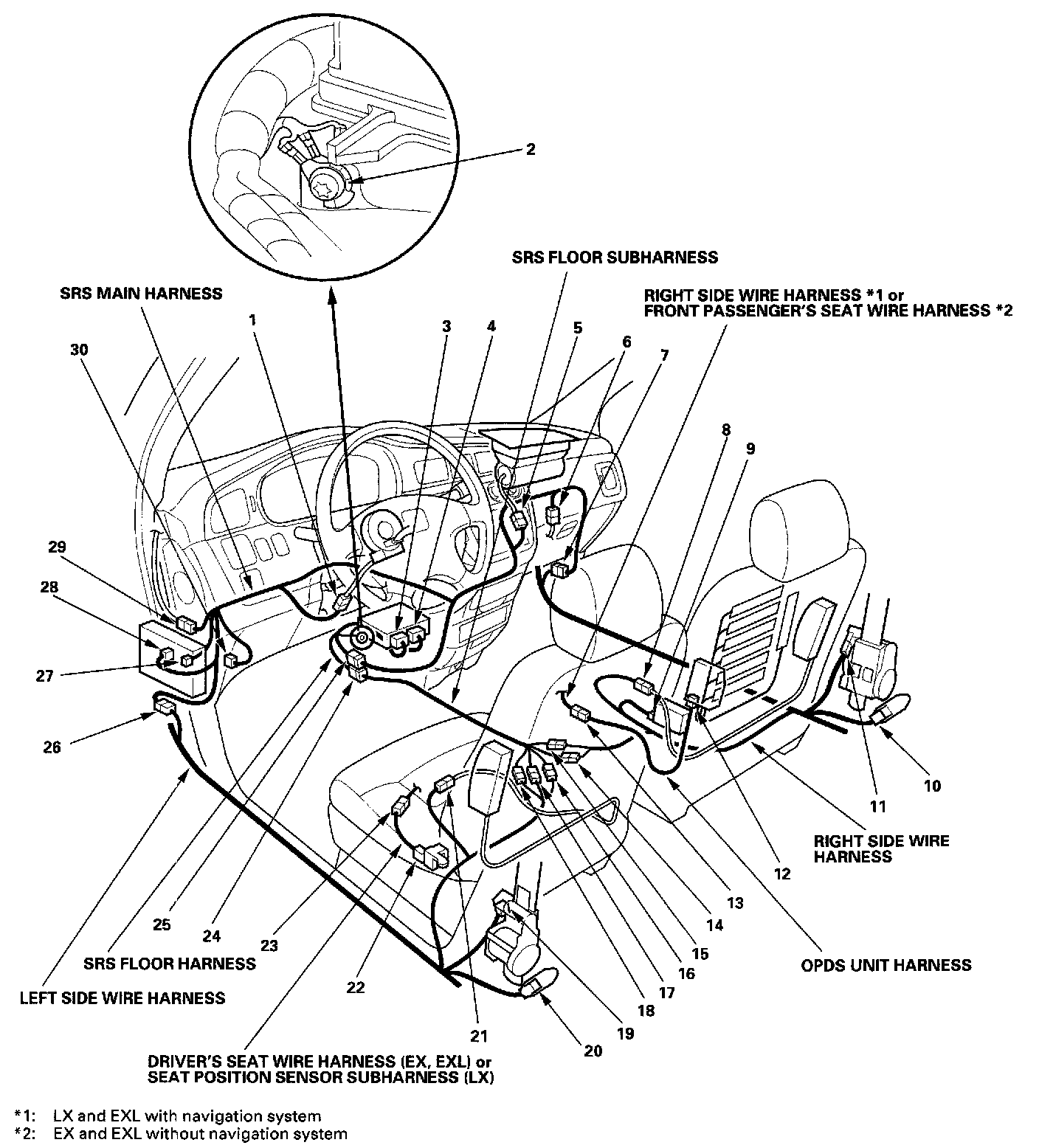

Harness Location View:

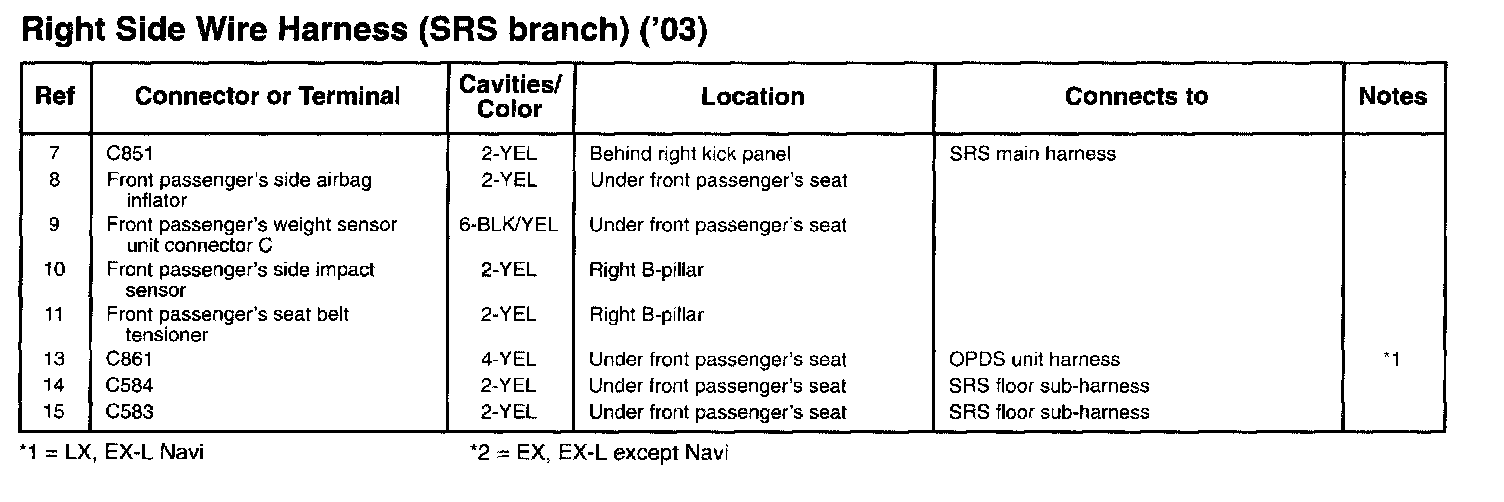

Right Side Wire Harness (SRS Branch) (03):
Right Side Wire Harness (SRS Branch) ('03 Model):
