SRS Main Harness
SRS Main Harness

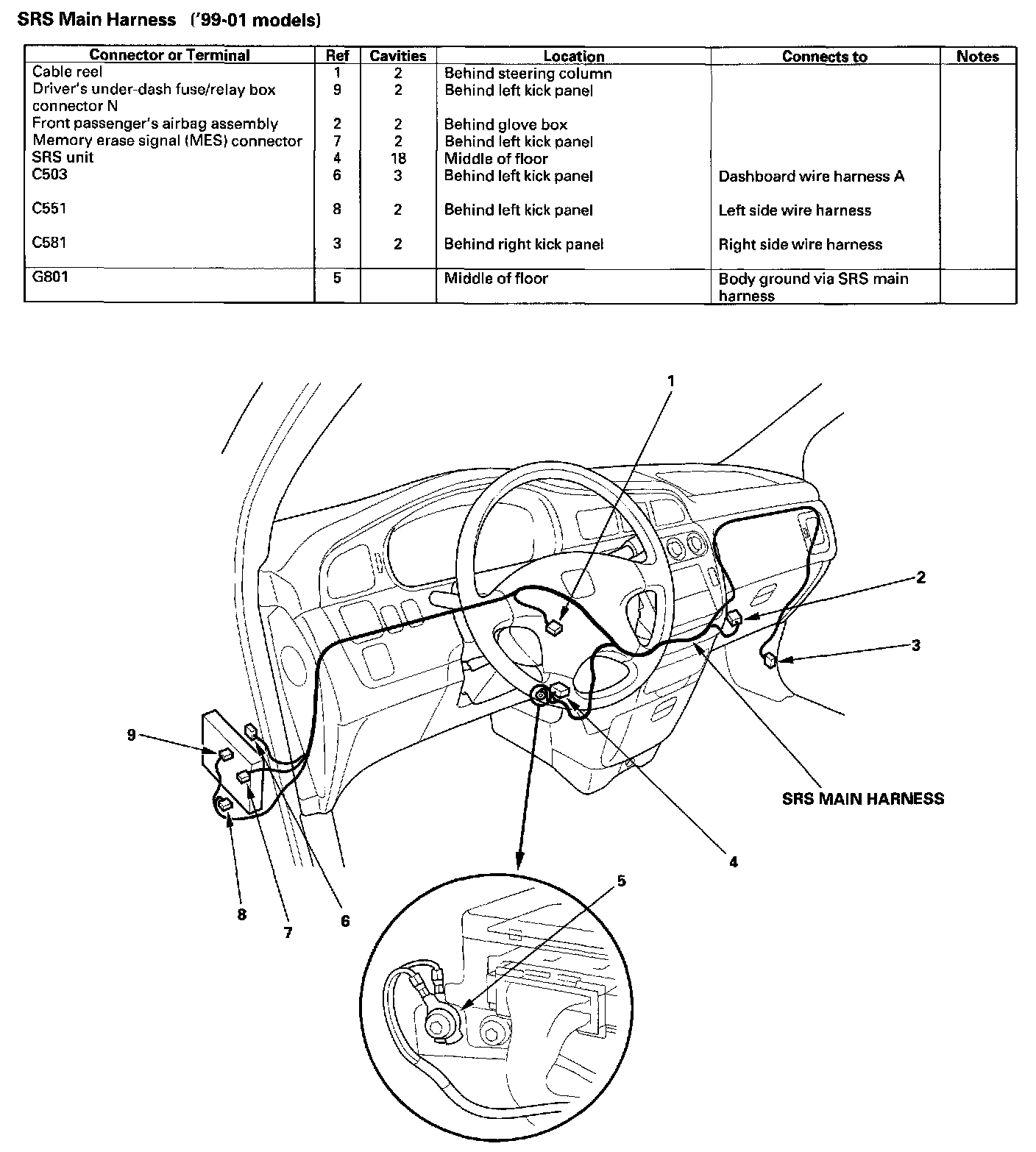

SRS Main Harness ('99-01 Models):
Harness Location View:

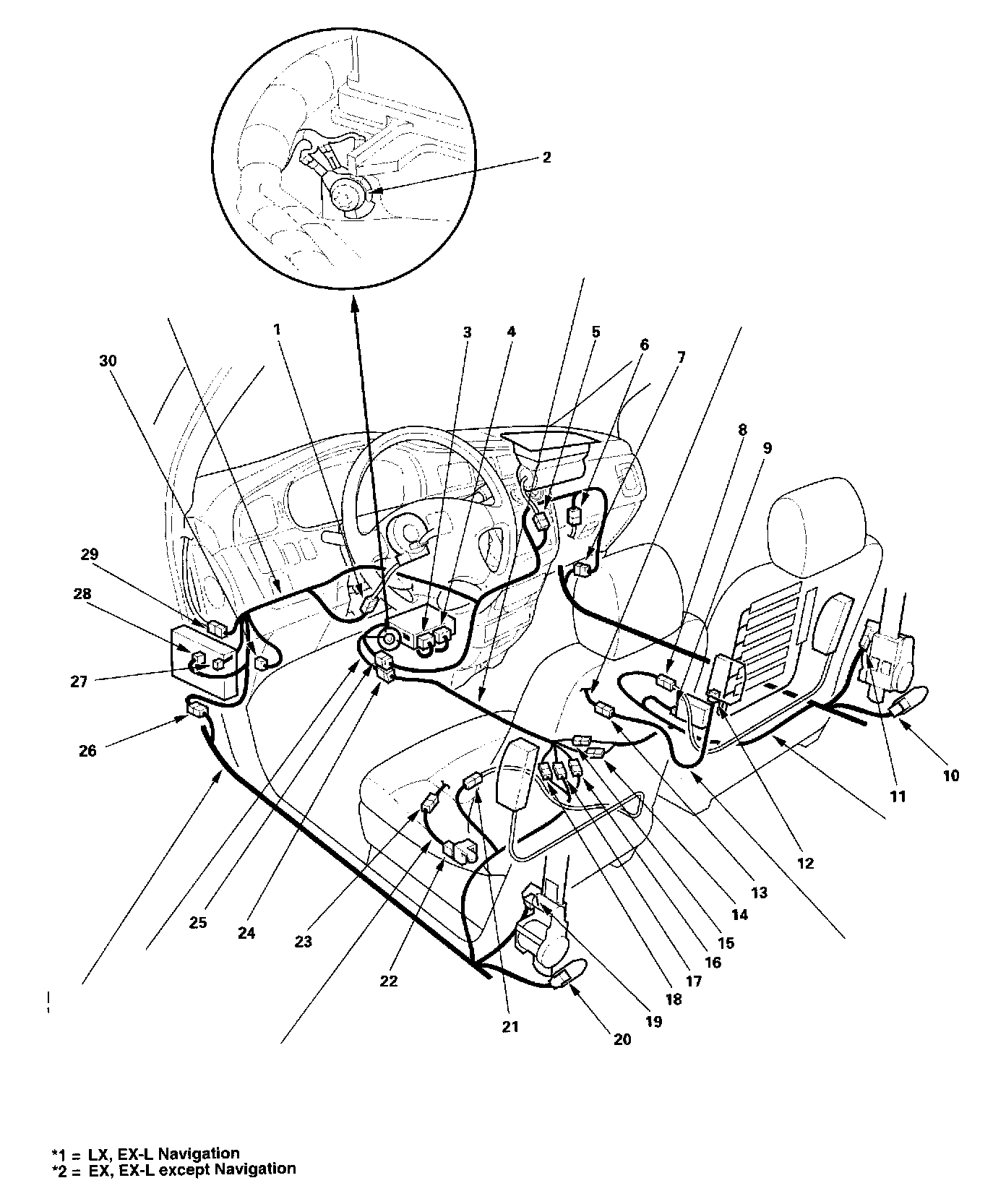

SRS Main Harness ('03 Model):
Harness Location View:
SRS Main Harness (03):
