Seat Position Sensor Subharness (LX)
Seat Position Sensor Subharness (LX)

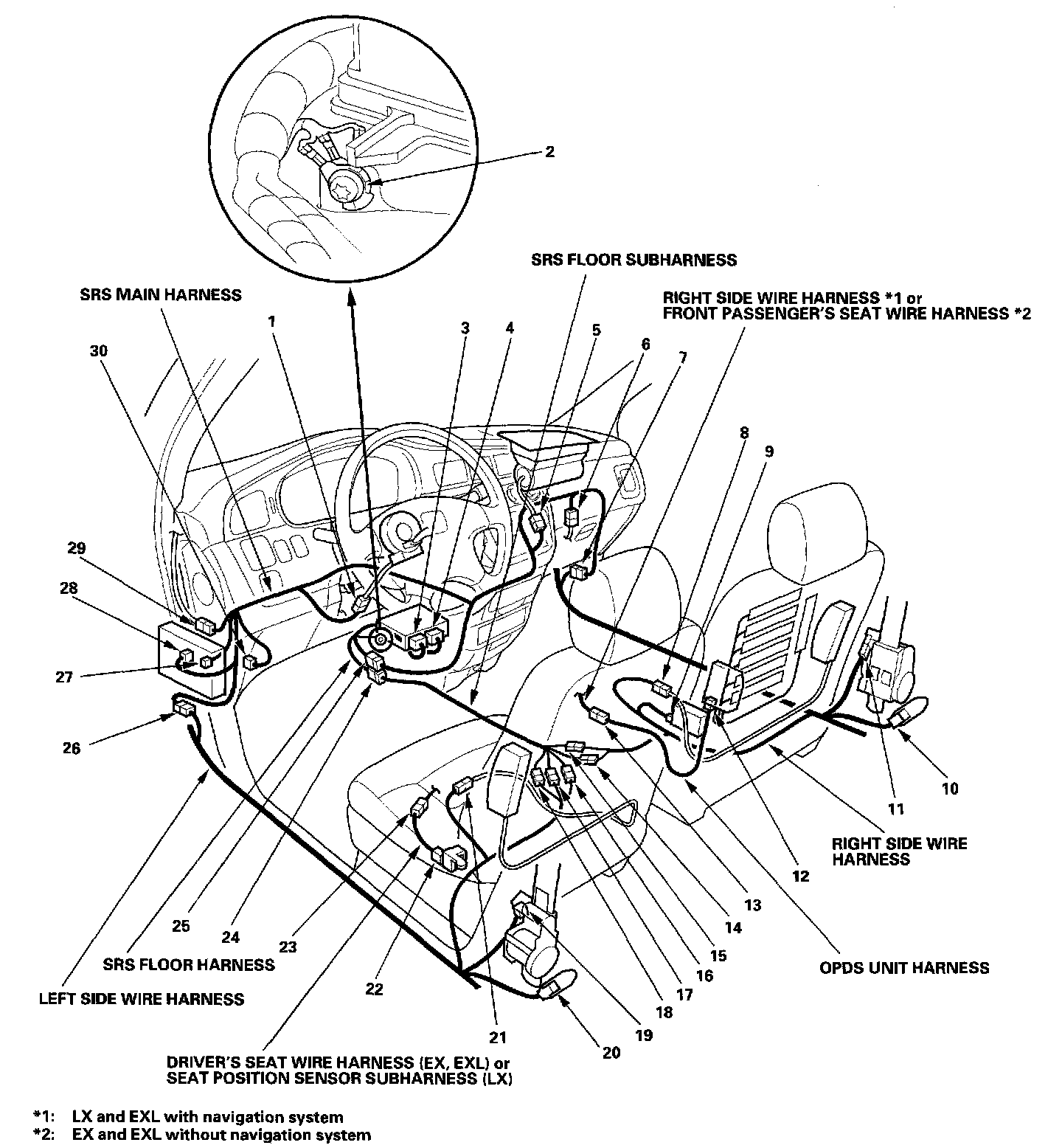

Harness Location View:

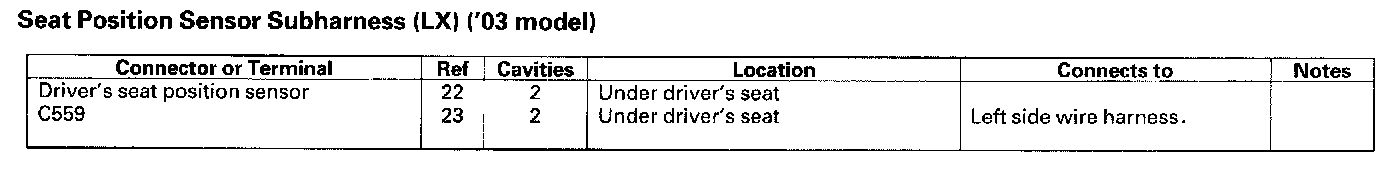

Seat Position Sensor Subharness (LX) ('03 Model):
