Starter Relay: Locations

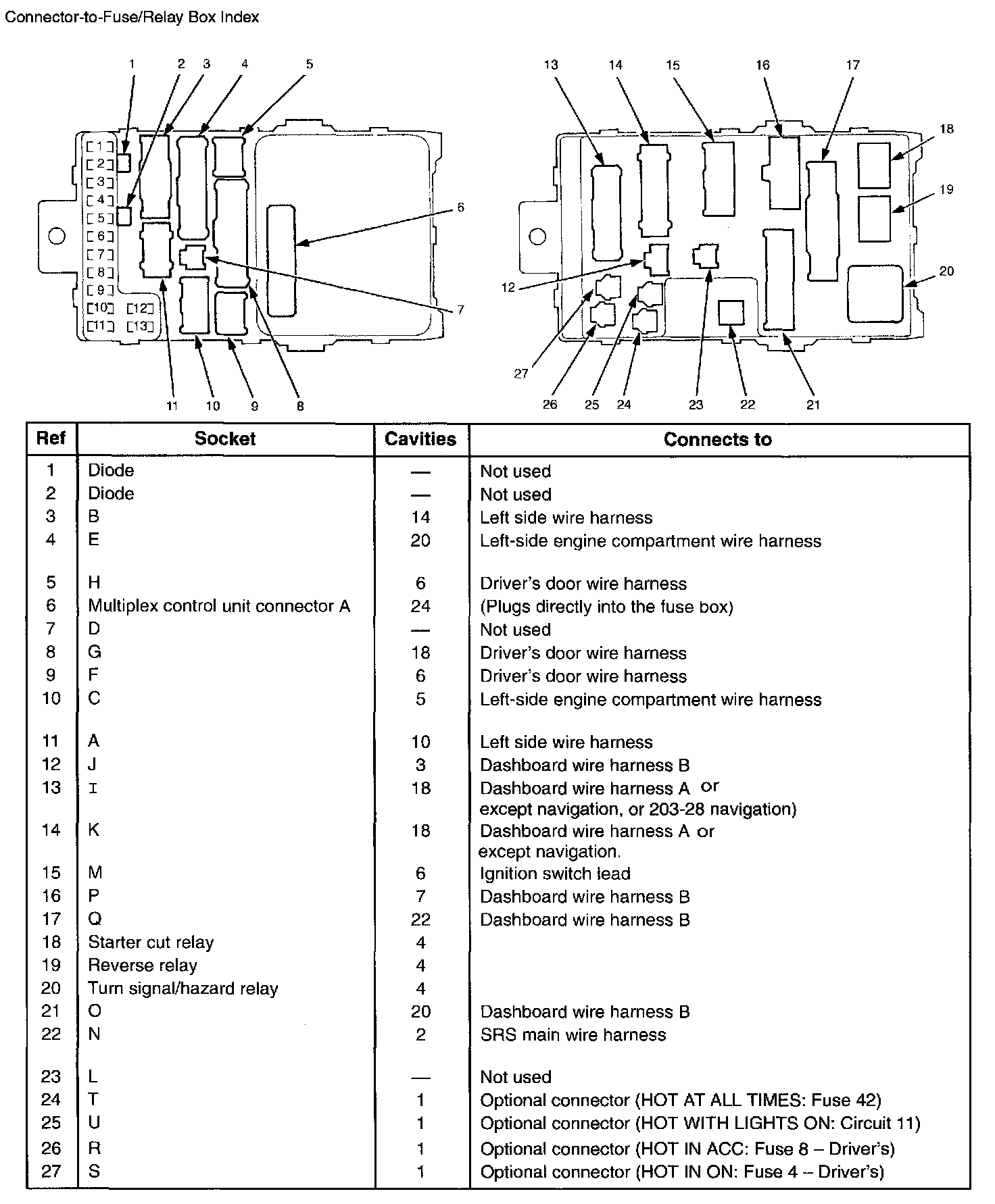

Driver's Under-dash Fuse/Relay Box:

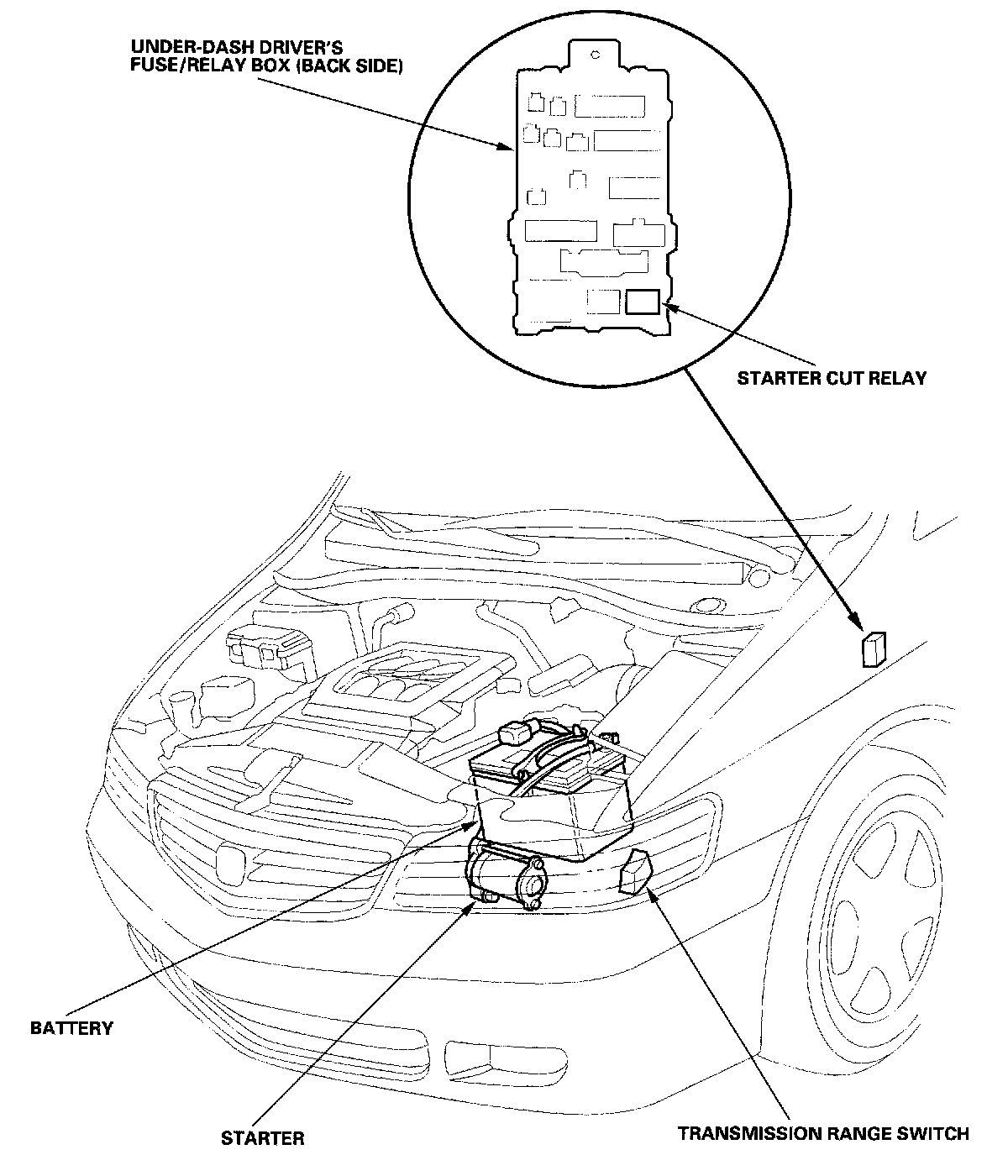

Starting System Component Location Index:

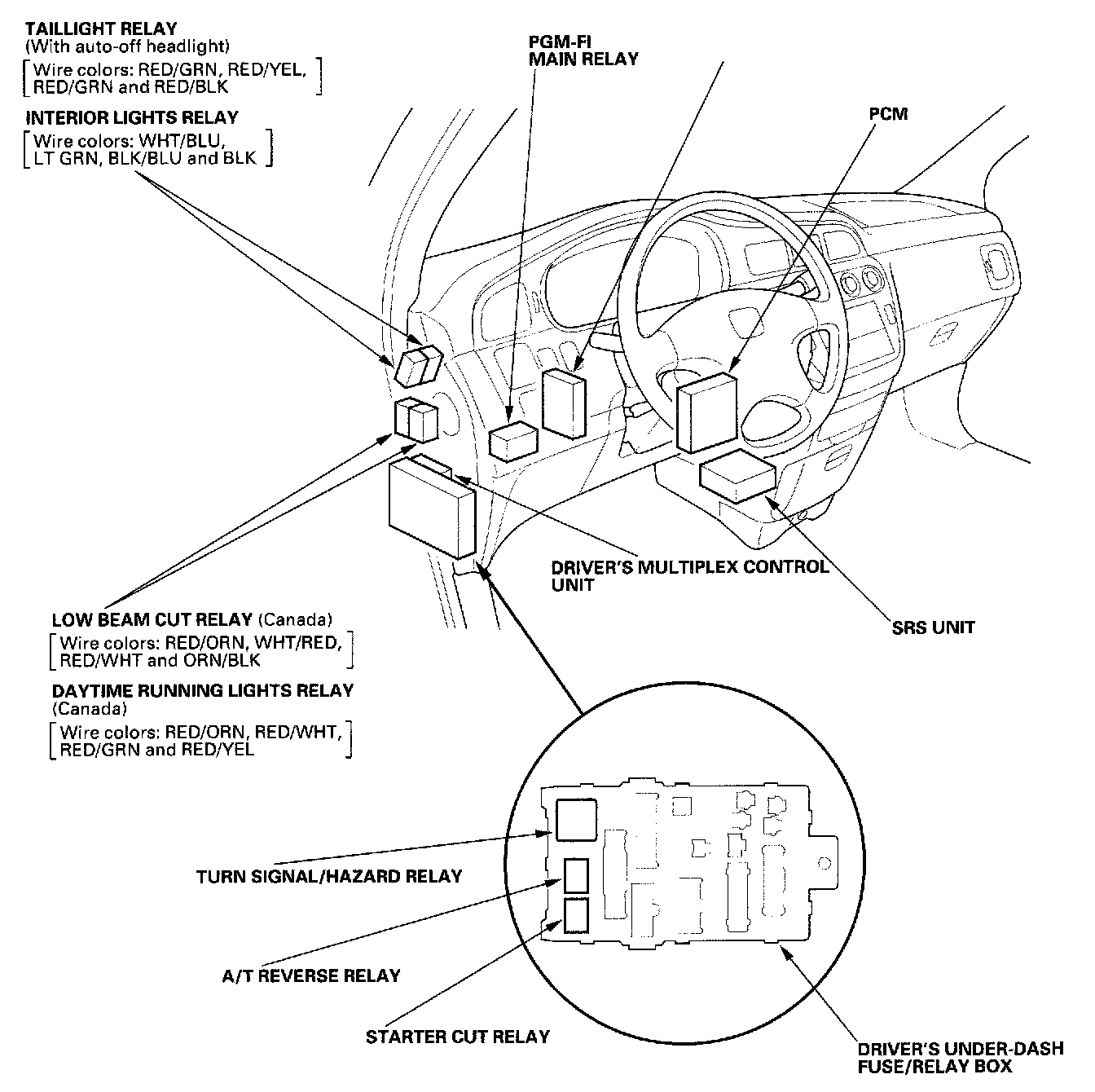

Relay And Control Unit Locations - Dashboard:
