Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Pull away the right inner fender.

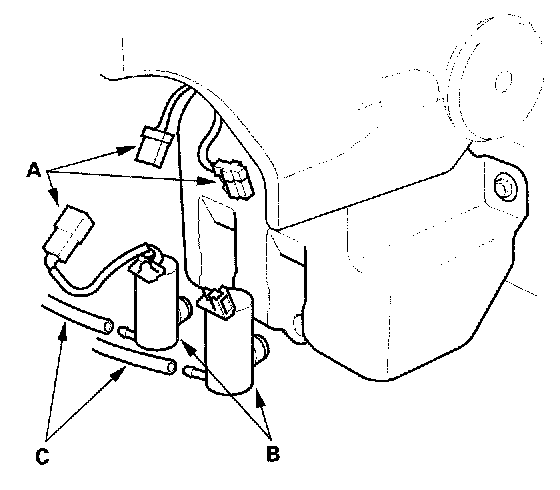

2. Disconnect the 2P connectors (A) from the washer motors (B) and level switch.
3. Disconnect the tubes (C) from the washer motors.

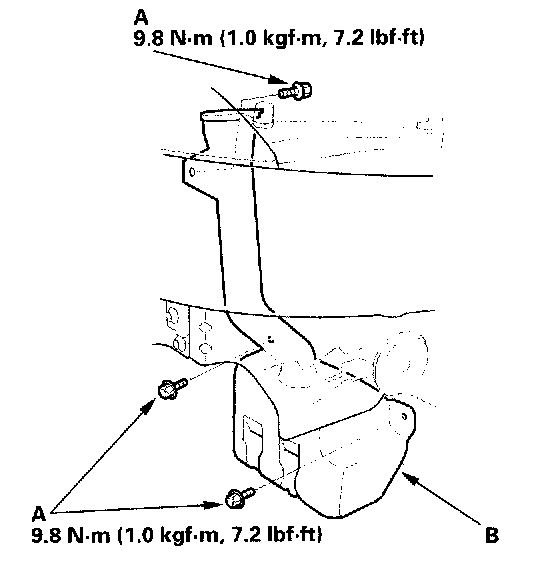

4. Remove the three bolts (A) and washer reservoir (B).
5. Install in the reverse order of removal.
