Auxiliary Jack Assembly Replacement

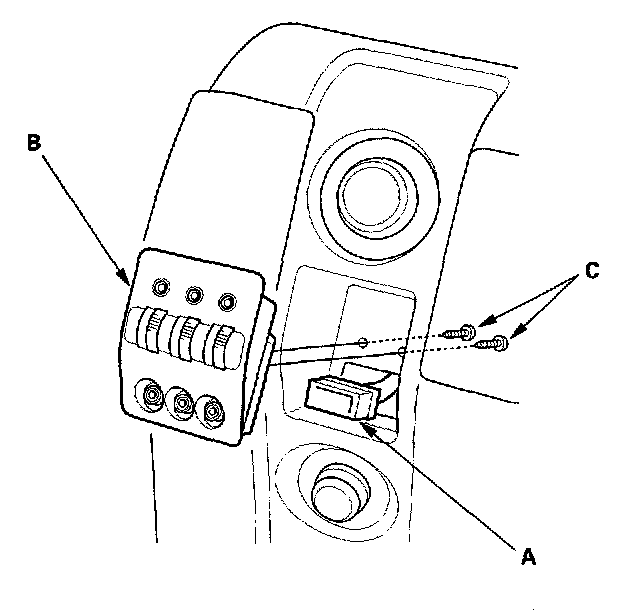

Auxiliary Jack Assembly Replacement 1.
Remove the console rear trim.
2.
Disconnect the 16P connector (A) from the auxiliary jack assembly (B).
3.
Remove the screws (C) from the auxiliary jack assembly.
4.
Carefully pry the auxiliary jack assembly out of the console rear trim.
5.
Install in the reverse order of removal.
