Key Cylinder Lamp: Testing and Inspection
Ignition Key Light Test 1.
Remove the steering column upper and lower covers.
2.

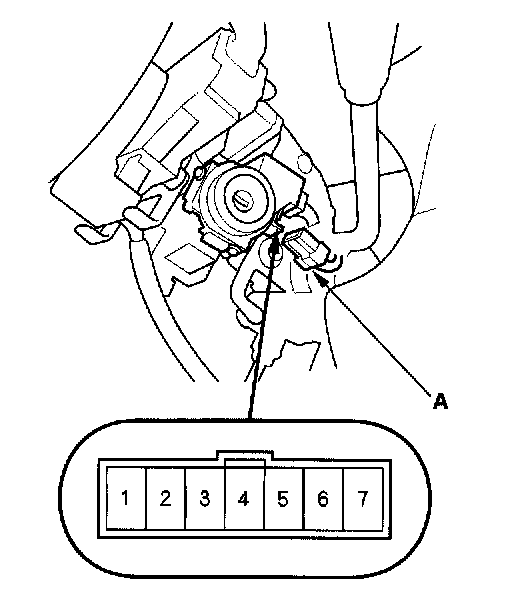

Disconnect the 7P connector.
NOTE: Lock tab (A) points down when installed.
3.
The LED should come on when power is connected to the No. 7 terminal and ground is connected to No. 6 terminal.
4.
If the LED does not come on, replace the ignition key switch.
