A/T - Shift Solenoid Illustration Revision
SIM Fix: Shift Solenoid Valve Test, '03-06 Accord L4

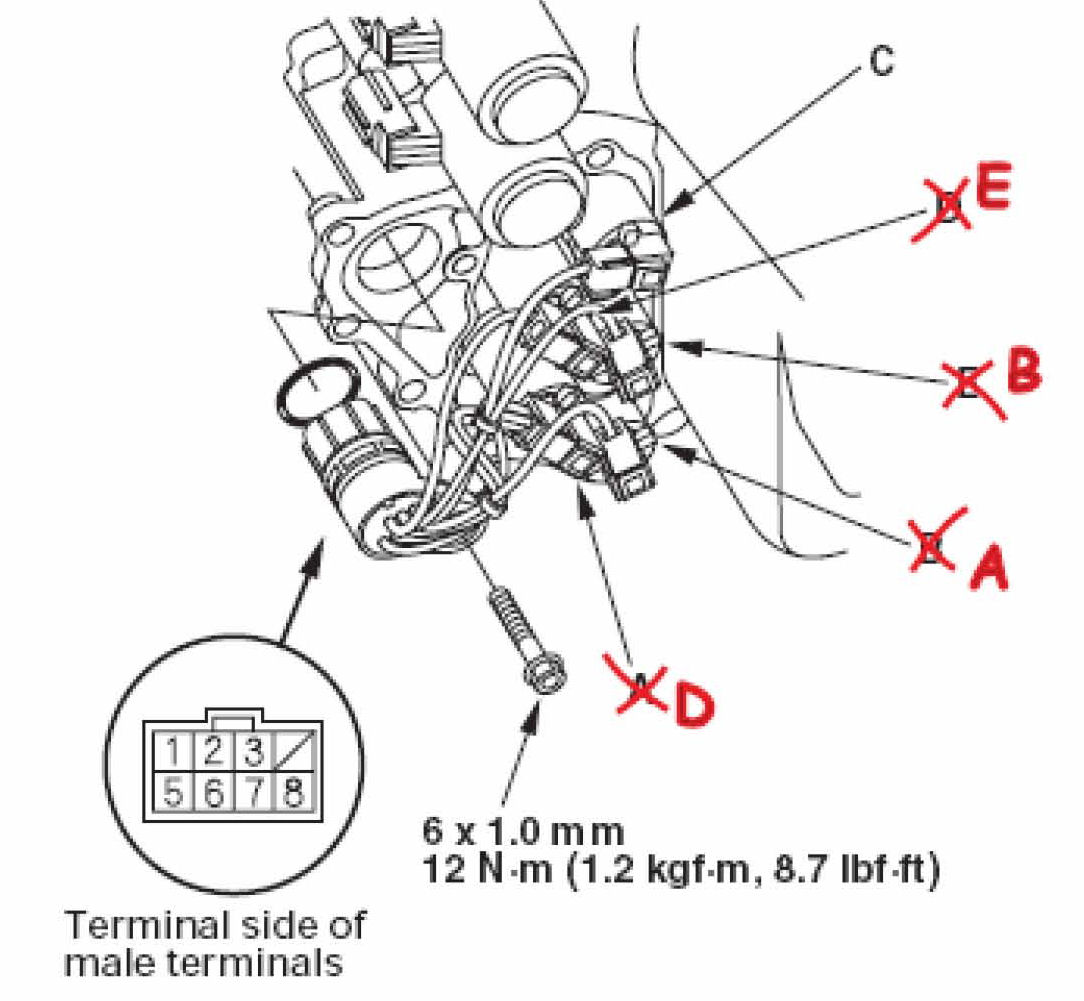

You need to tweak the illustration for step 19 on page 14-193 of the 03-06 Accord L4 S/M. The callouts are wrong. Mark up your copies of the S/M to look like this:
