Motor Commutation Sensors Replacement

Motor Commutation Sensors Replacement
1. M/T: Remove the transmission, and the clutch.
2. CVT: Remove the transmission.

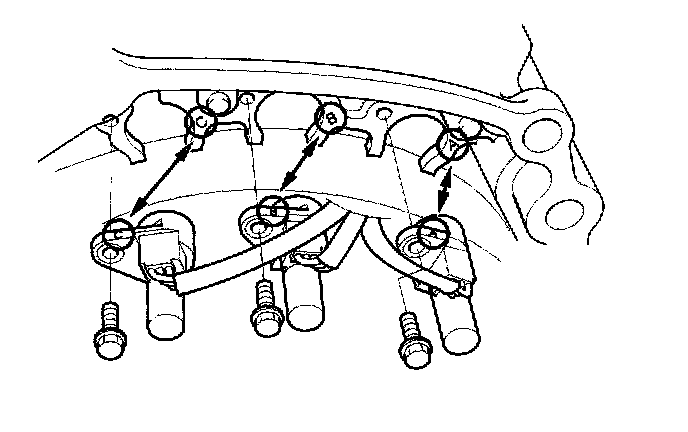

3. Disconnect the motor commutation sensor 10P connector (A).
4. Remove the bolts (B) and the motor commutation sensor (C).

5. Install the parts in the reverse order of removal.

NOTE: Install the commutation sensors properly. Do not set the sensors A, B, and C in the wrong position.
