Third Row Seat Removal/Installation

Third Row Seat Removal/Installation

NOTE: Take care not to scratch the interior trim and body or tear the seat covers.

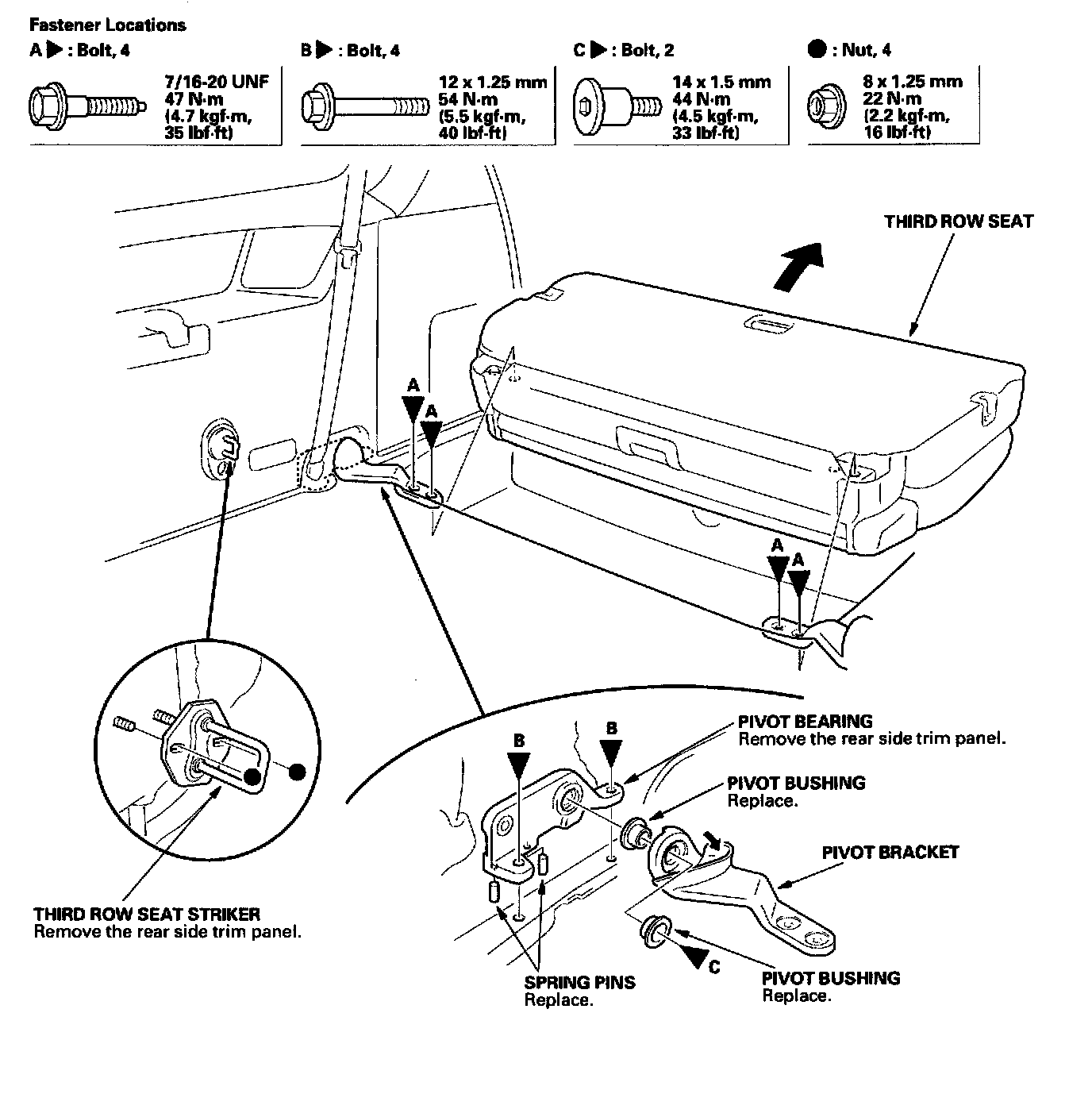

1. Remove the third row seat as shown.

2. Install the seat in the reverse order of removal and note these items:
- After disassembling the pivot bracket, replace the pivot bushings.
- Make sure the third row seat latches and unlatches properly, and if necessary, adjust the third row seat striker forward or rearward.
