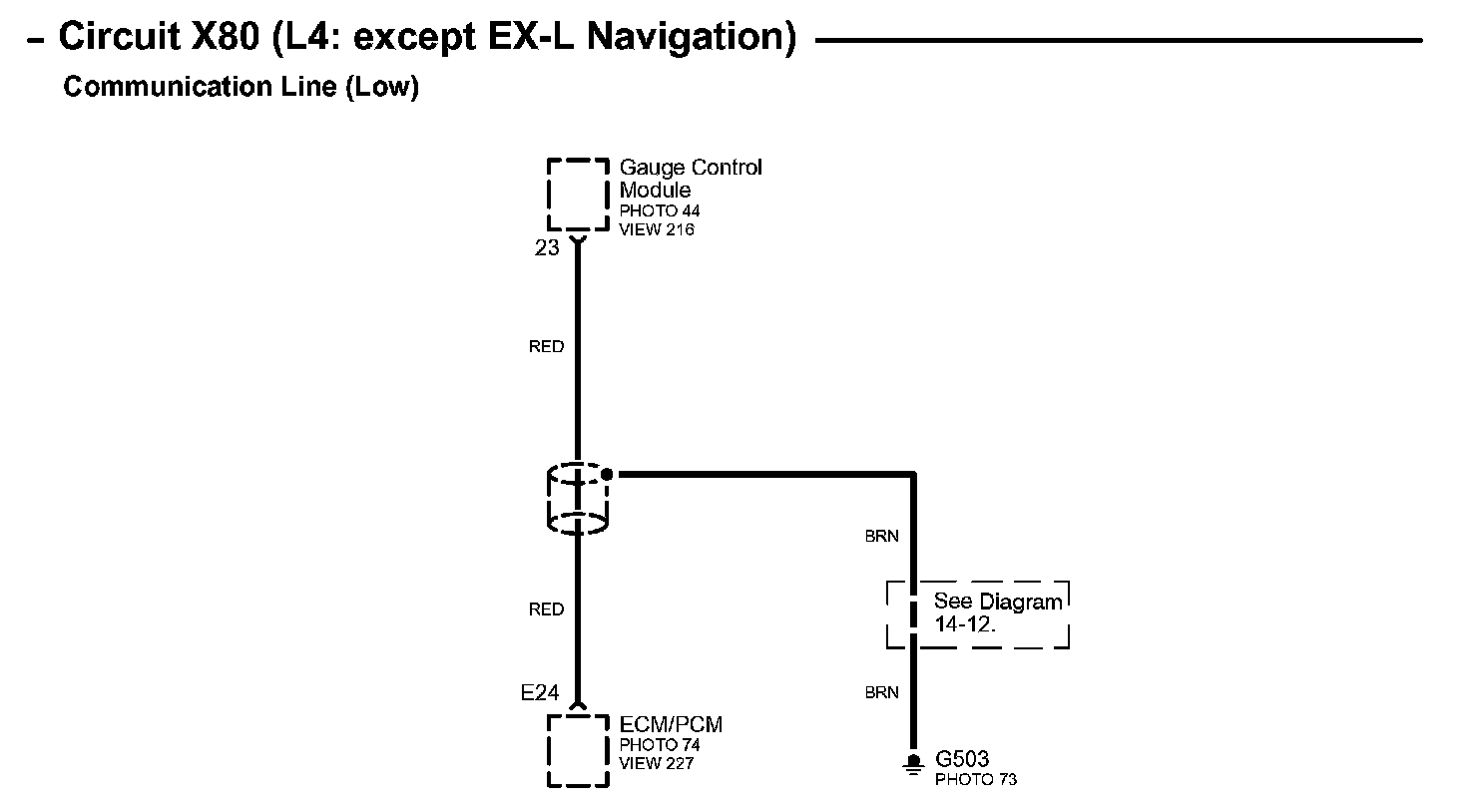

Circuit X80 Communication Line (Low) (L4: Except EX-L Navigation)

Circuit X80 Communication Line (Low) (L4: Except EX-L Navigation):
