Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2005
>>
Accord V6-3.0L Hybrid
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
Connector Views

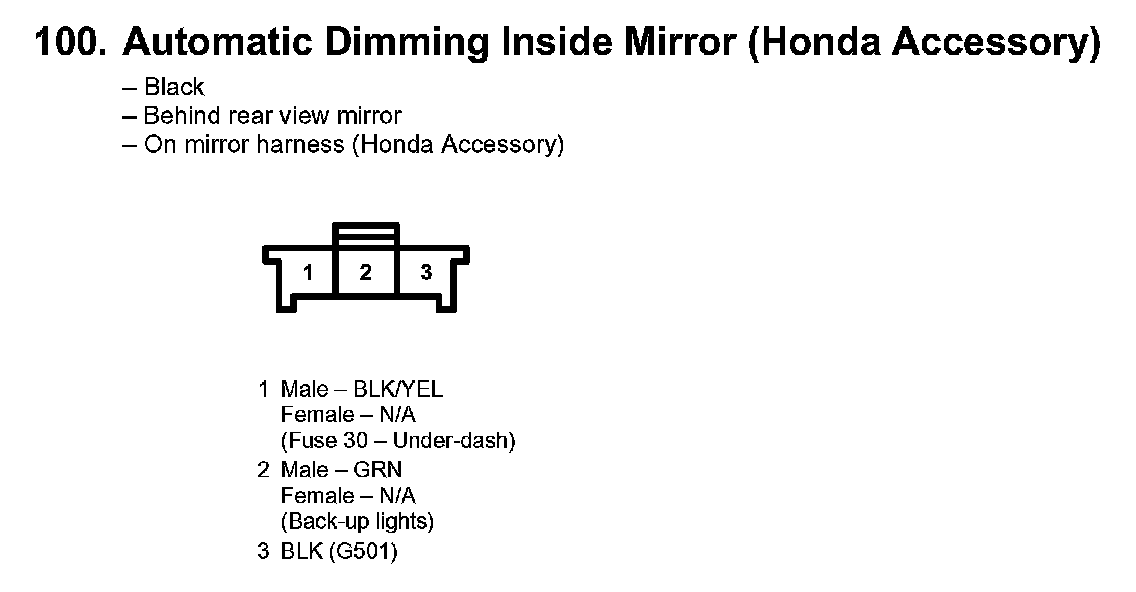

100. Automatic Dimming Inside Mirror (Honda Accessory):

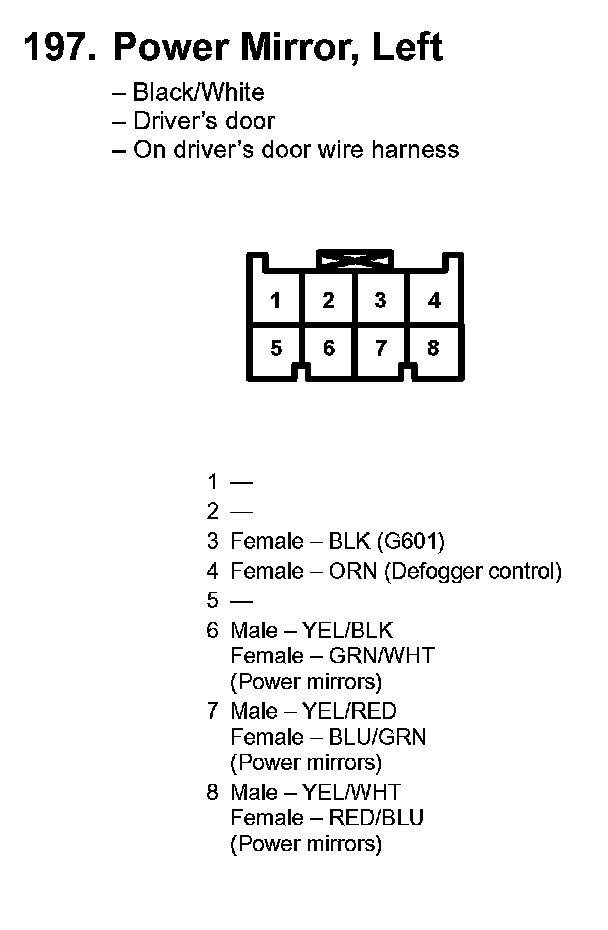

197. Power Mirror, Left:

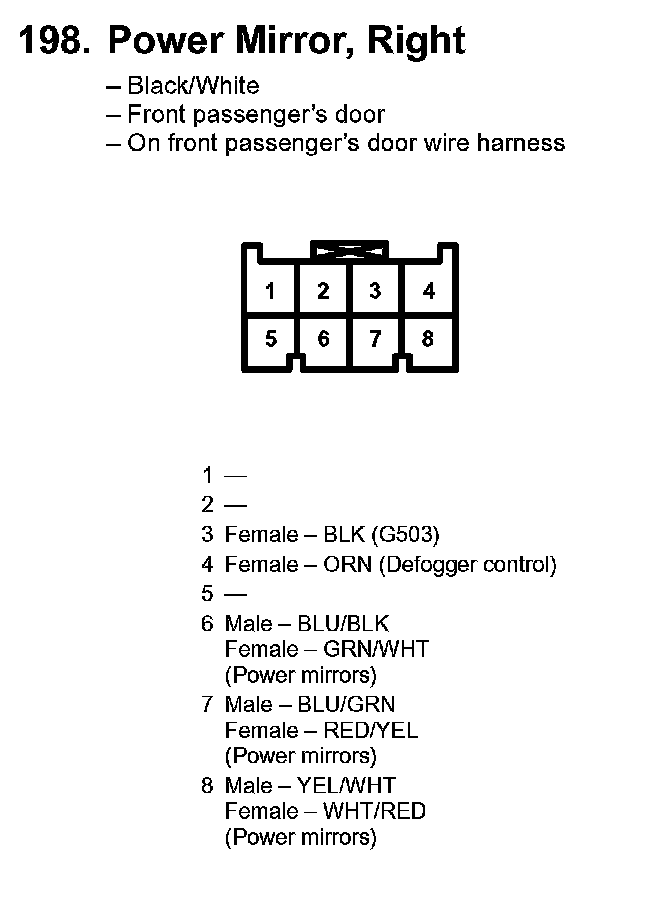

198. Power Mirror, Right:

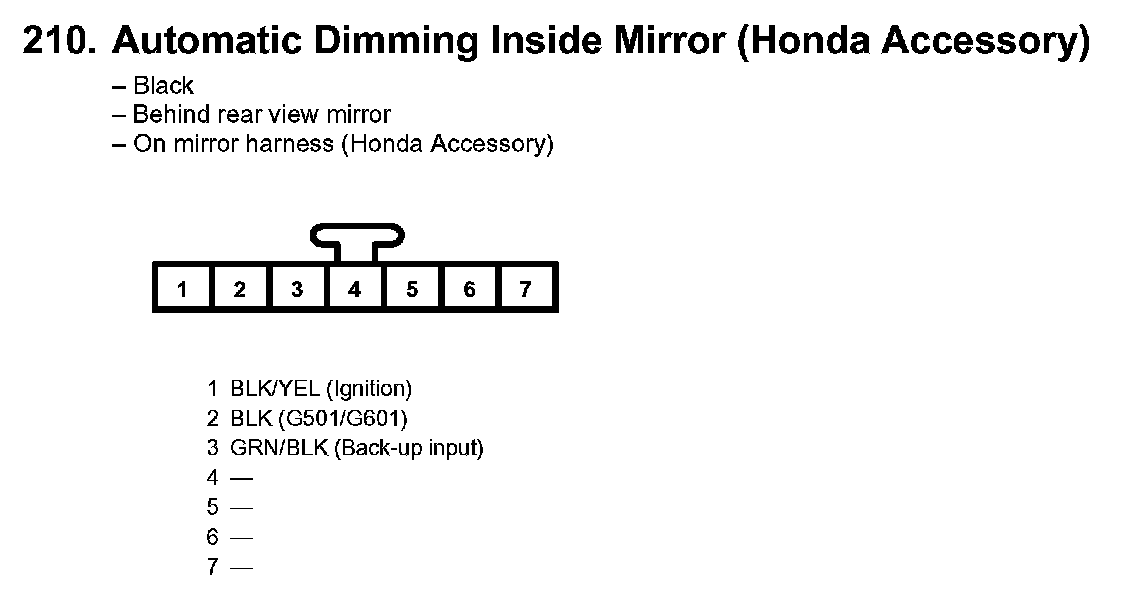

210. Automatic Dimming Inside Mirror (Honda Accessory):
