3rd Clutch Transmission Fluid Pressure Switch Replacement

3rd Clutch Transmission Fluid Pressure Switch Replacement
1. Lift the vehicle up on a hoist or apply the parking brake, block rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
2. Remove the splash shield.

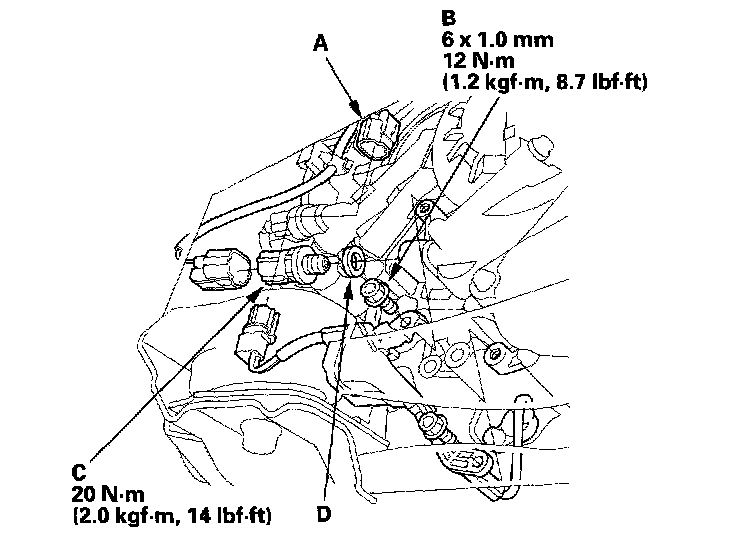

3. Disconnect the ATF temperature sensor connector (A).
4. Remove ATF temperature sensor harness clamp bolt (B).
5. Disconnect the connector from the 3rd clutch transmission fluid pressure switch (C).
6. Replace the switch, then install a new one with a new sealing washer (D). Tighten the switch on the metal part, not the plastic part.
7. Check the connector for water, oil, dust, or other particles inside it, and connect the connector securely.
8. Install ATF temperature sensor harness clamp bolt, and connect the ATF temperature sensor connector.
9. Install the splash shield.
