Front Inner Fender

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

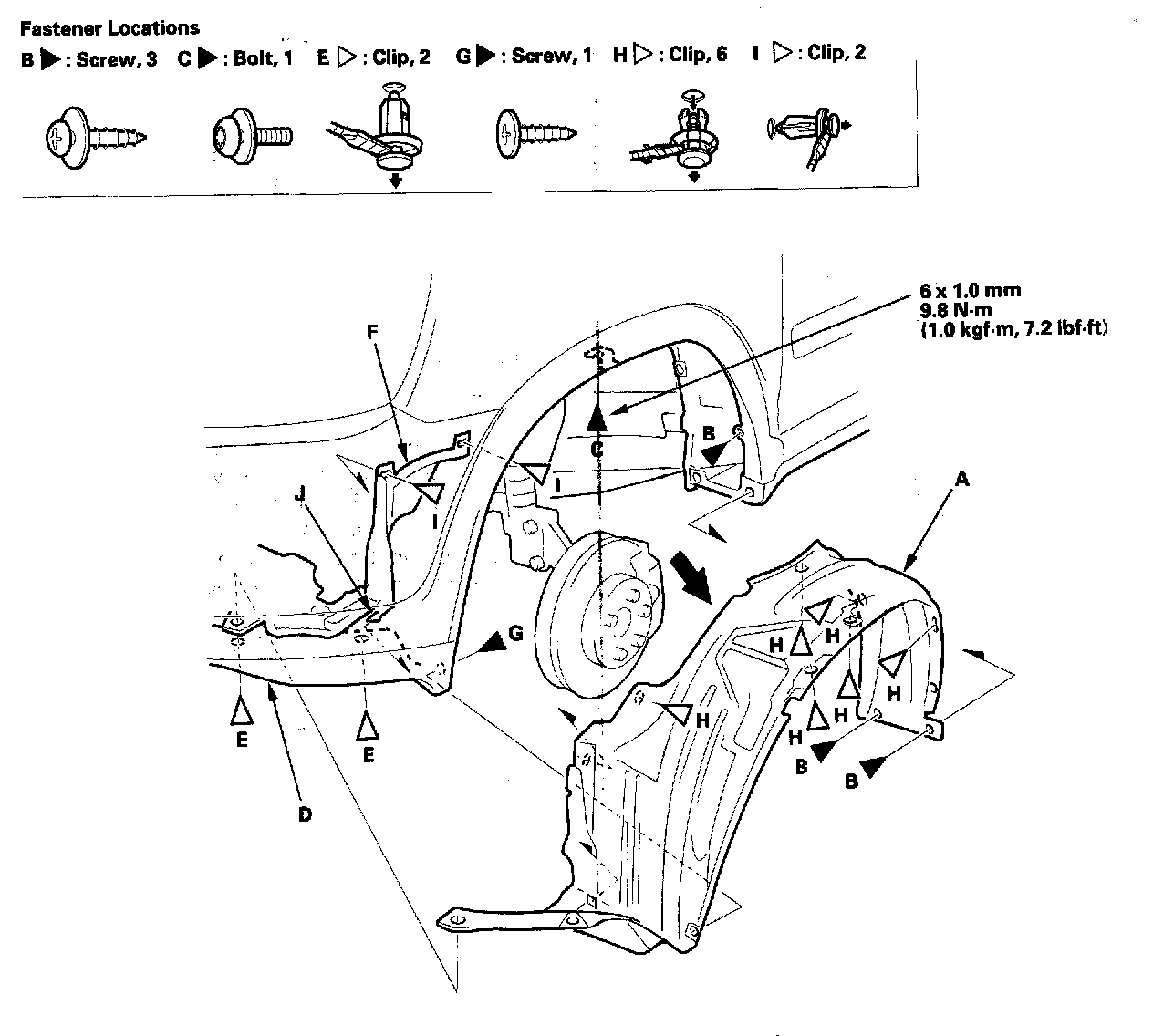

1. Remove the front inner fender (A).
1. On the back of the wheel arch, remove the screws (B).
2. With a T30 Torx bit; remove the bolt (C) securing the front wheel arch protector.
3. From under the front bumper (D), remove the clips (E) securing the front bumper, splash shield (F), and front inner fender.
4. From the wheel arch, remove the screw (G) securing the front inner fender and front bumper, and remove the clips (H, I) securing the front inner fender land splash shield to the body.
5. Release the hook(J) of the splash shield, then remove the front inner fender.

2. Install the inner fender in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
