Frame: Specifications

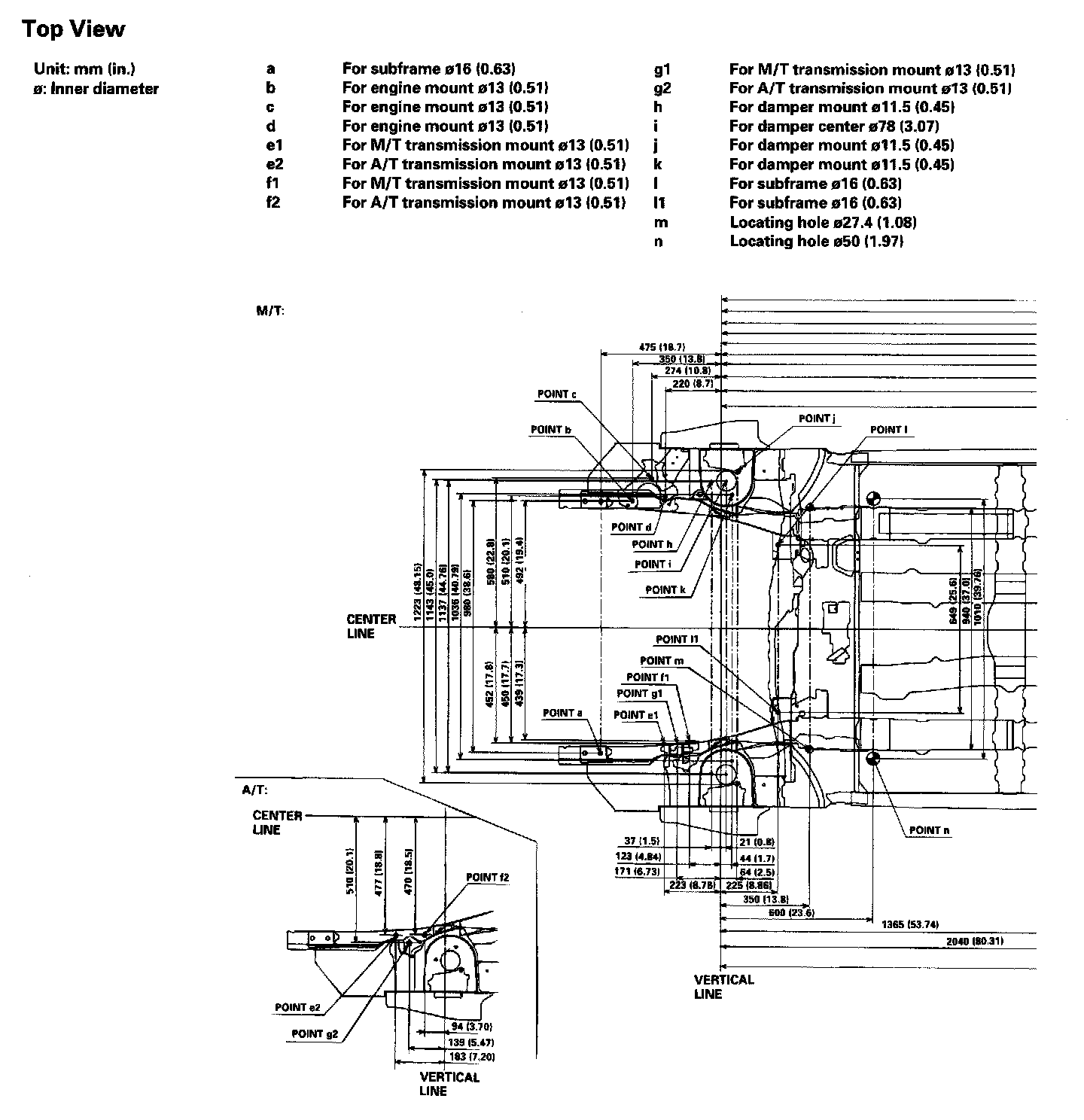

Frame Repair Chart - Top View (Part 1):

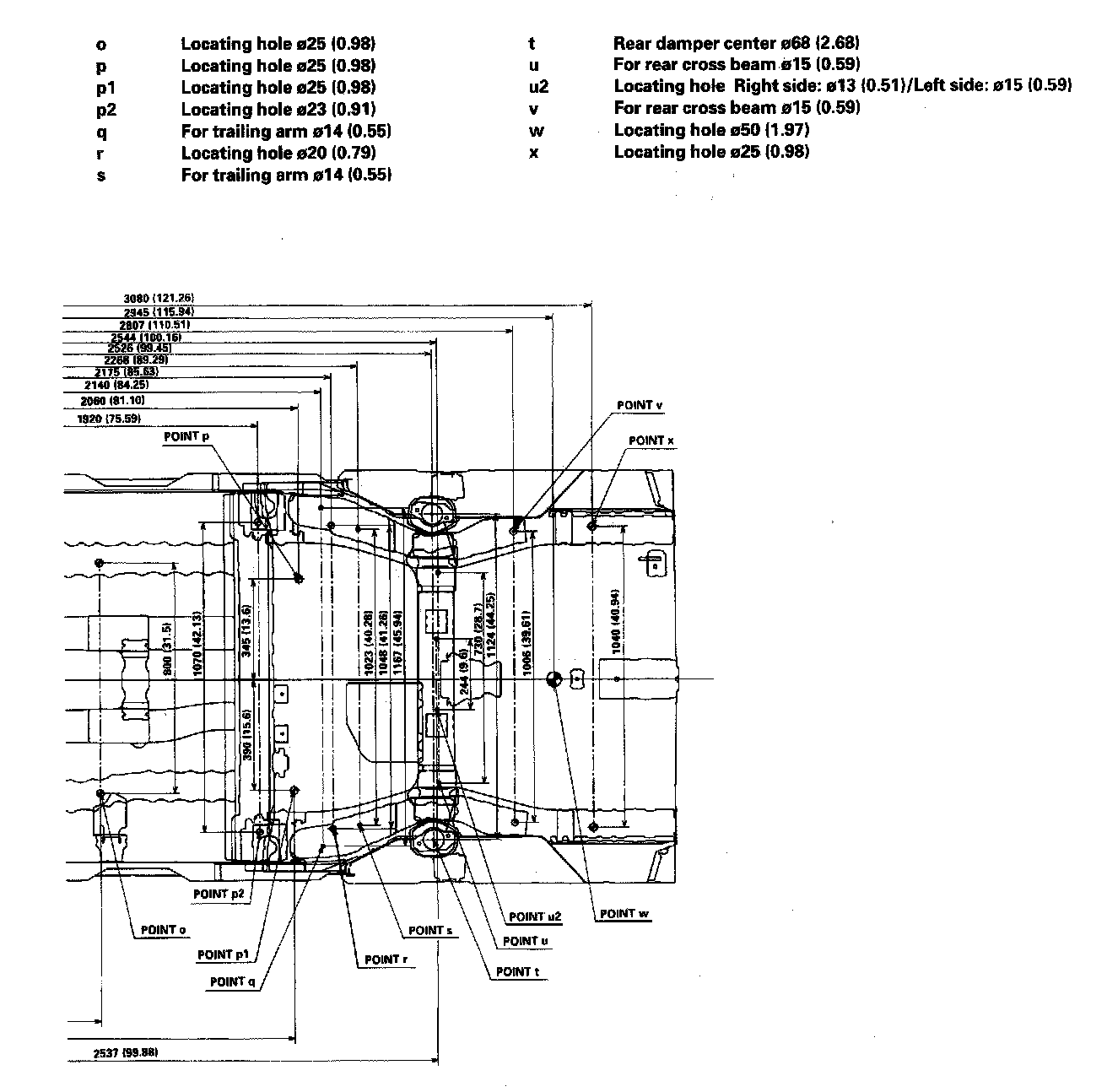

Frame Repair Chart - Top View (Part 2):

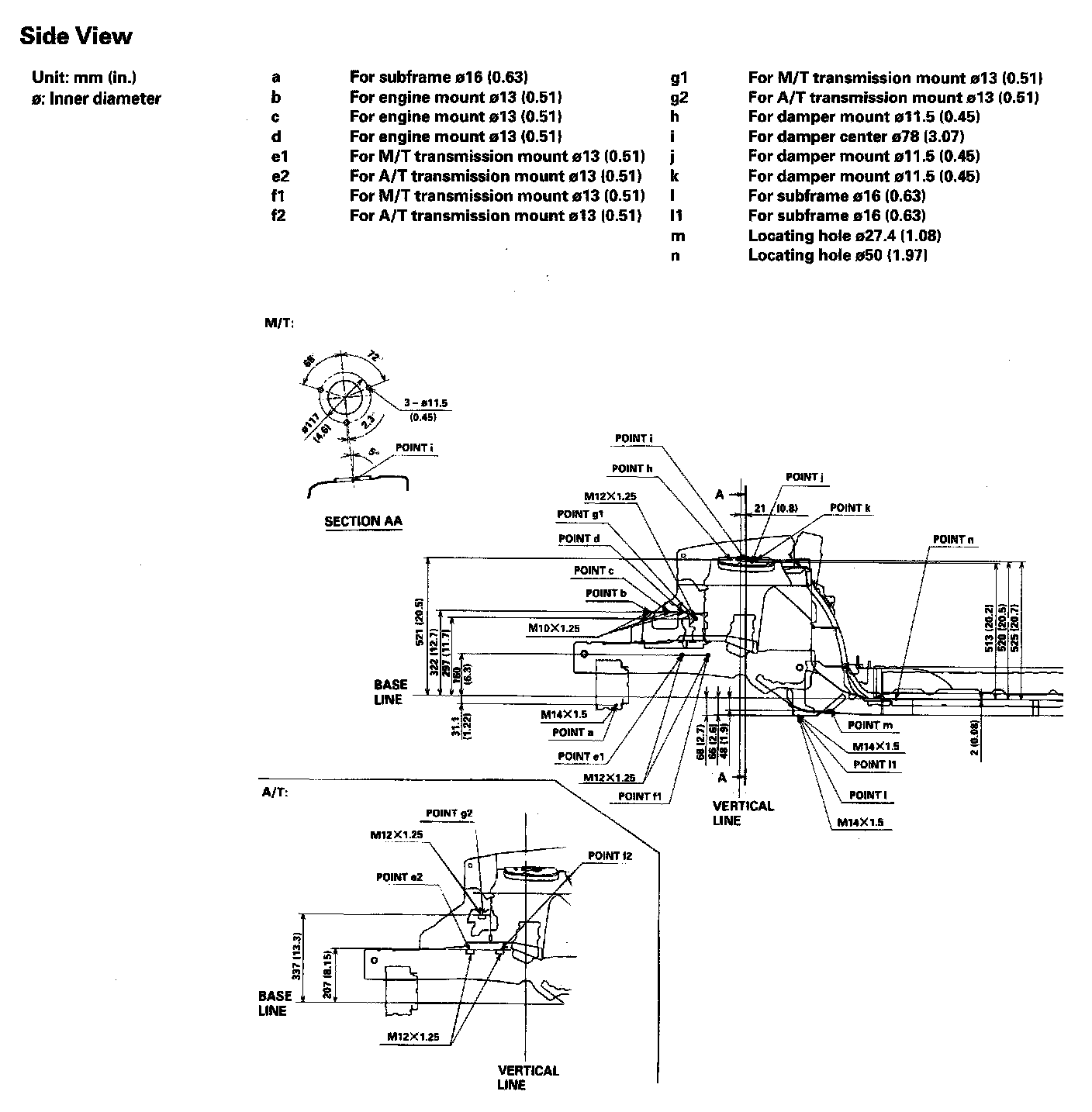

Frame Repair Chart - Side View (Part 1):

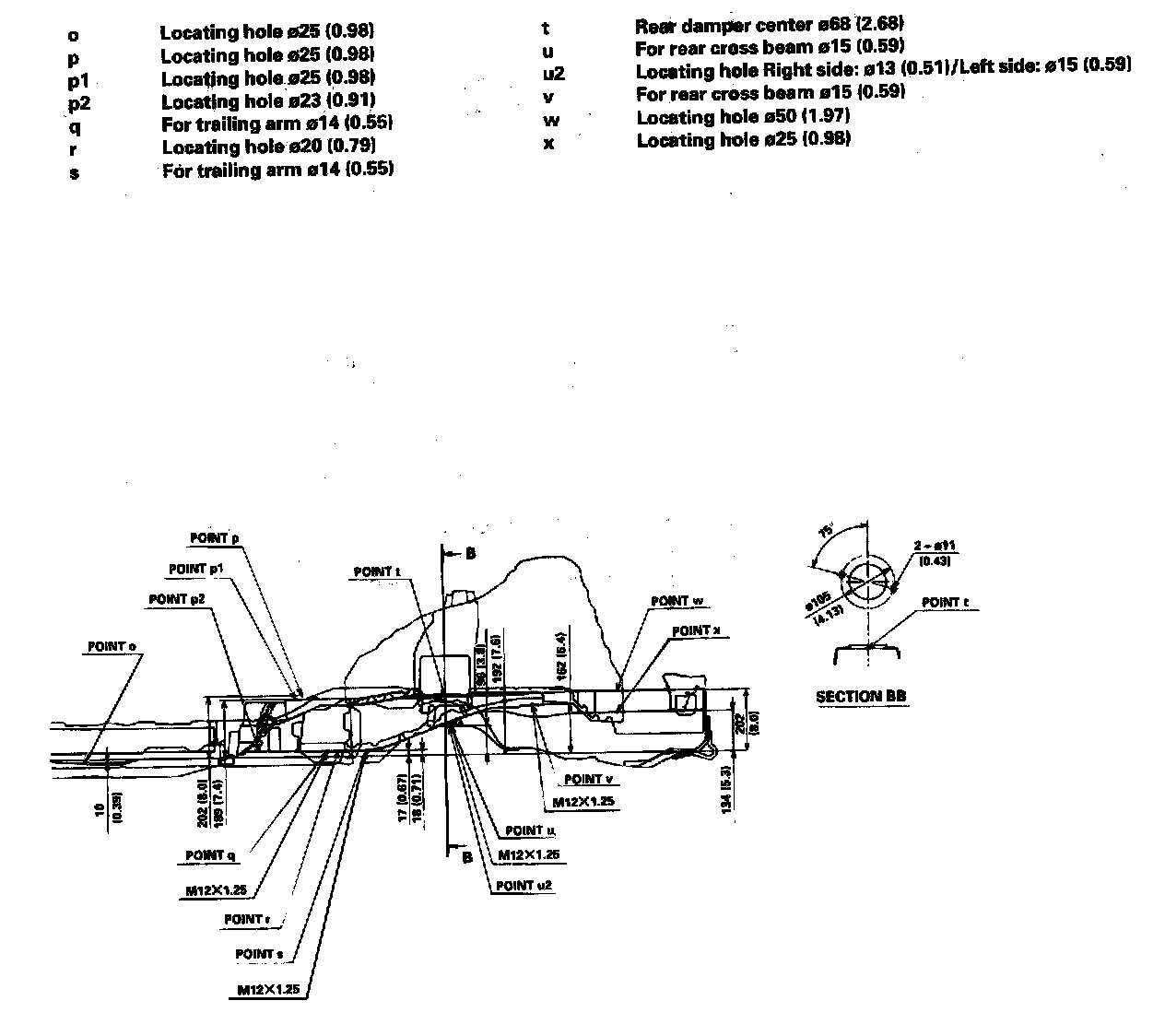

Frame Repair Chart - Side View (Part 2):
