Splash Guard: Service and Repair

Fuel Pipe Protector Replacement

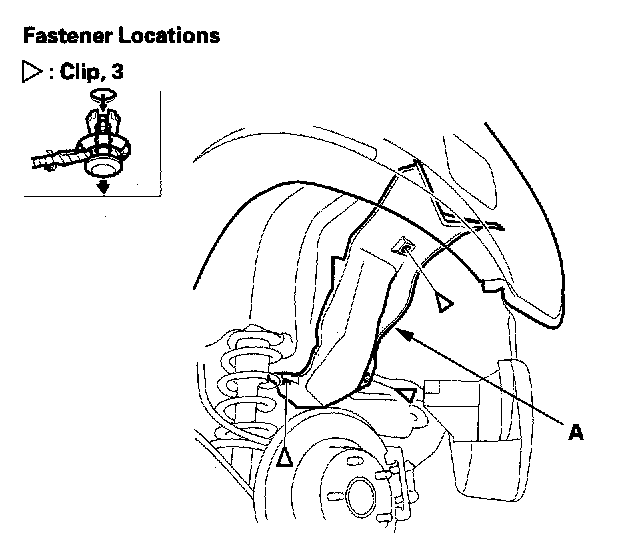

1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body.
2. Install the protector in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
