Lateral Accelerometer: Service and Repair

Sensor Cluster Replacement

NOTE:
^ Do not damage or drop the sensor as it is sensitive.
^ Do not use an impact wrench.

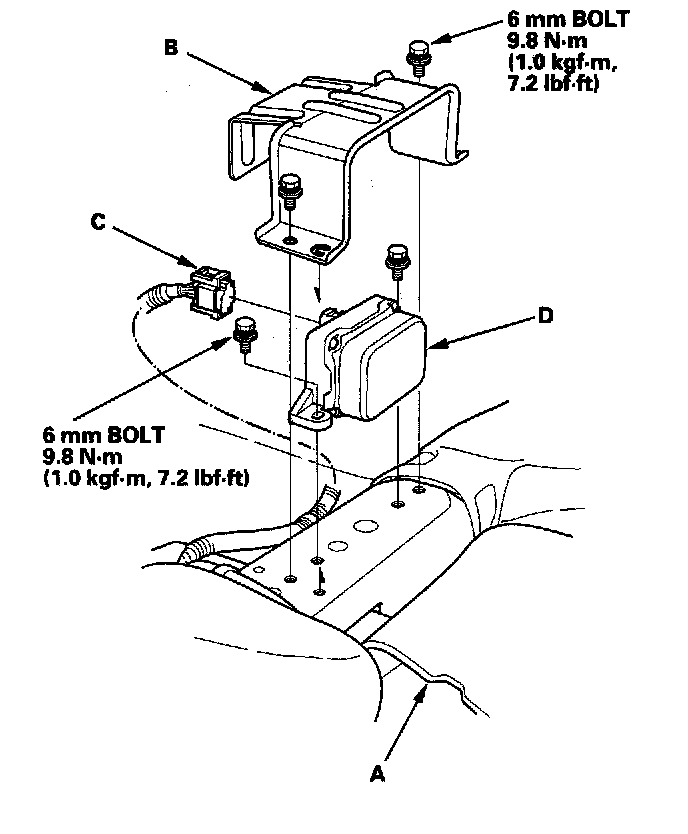

1. Remove the passenger's seat.





2. Lift up the floor carpet (A).
3. Remove the sensor cluster bracket (B).
4. Disconnect the 6P connector (C), and remove the sensor cluster (D).
5. Install in the reverse order of removal.
