Wheel Speed Sensor: Locations

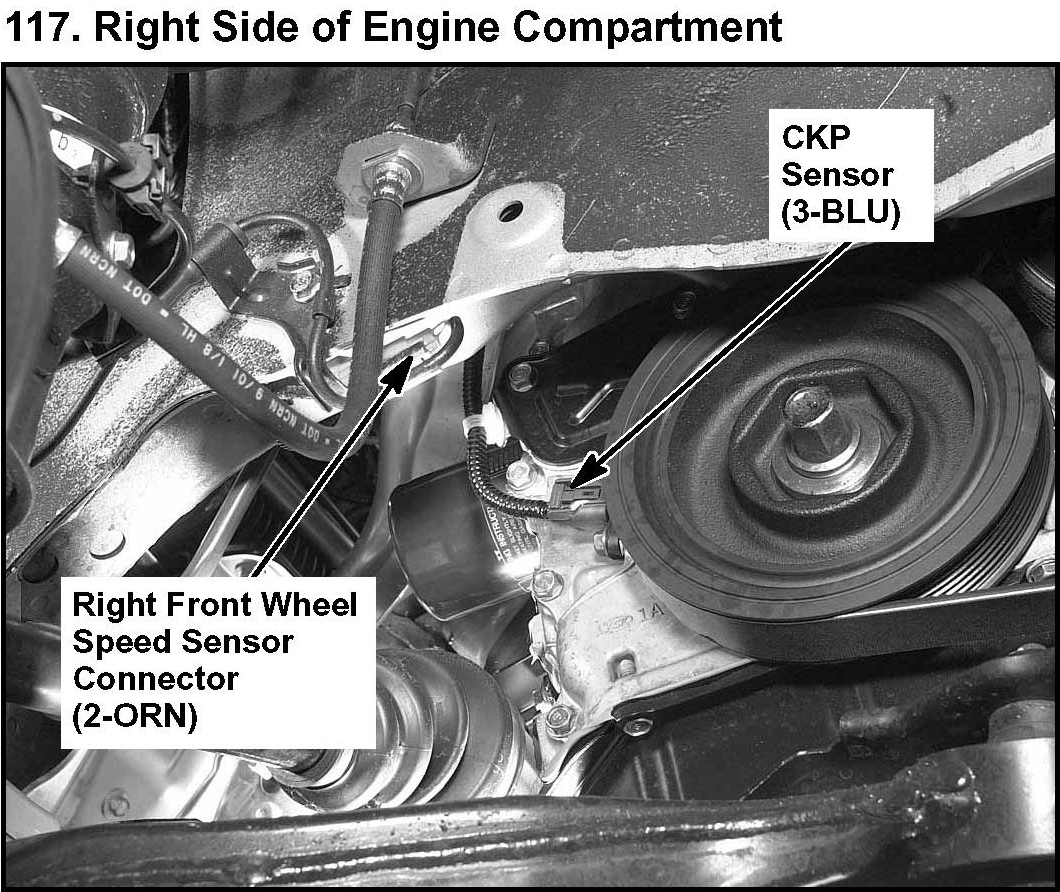

117. Right Side Of Engine Compartment:

119. Left Side Of Engine Compartment:

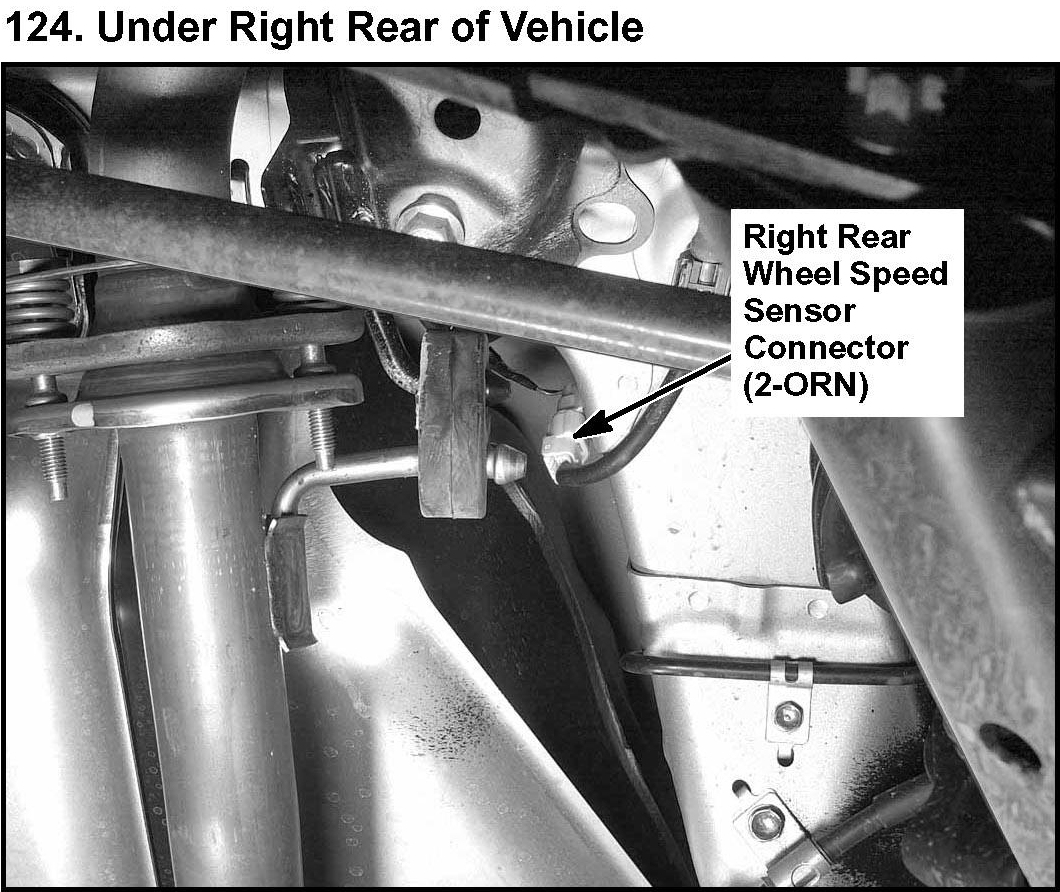

124. Under Right Rear Of Vehicle:

127. Under Left Rear Of Vehicle:
