Alarm Module, (Vehicle Antitheft)

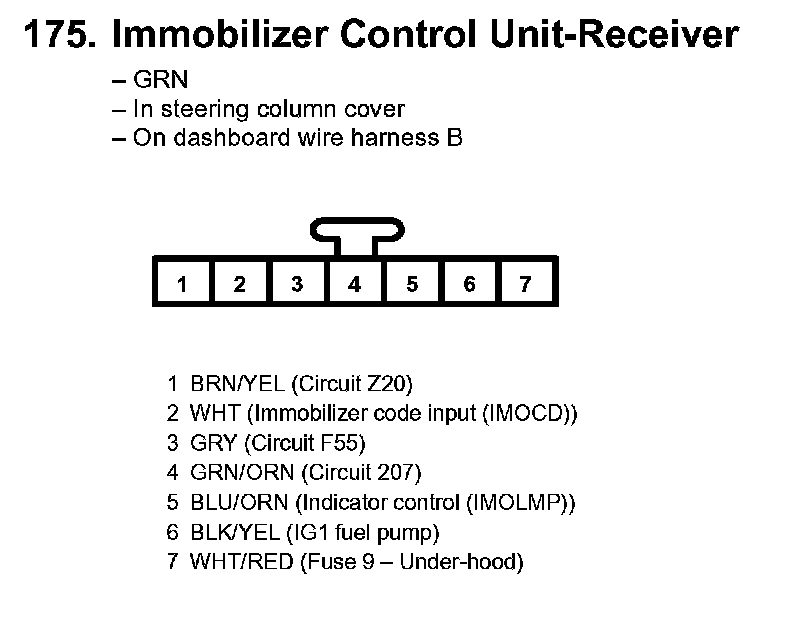

175. Immobilizer Control Unit-Receiver:

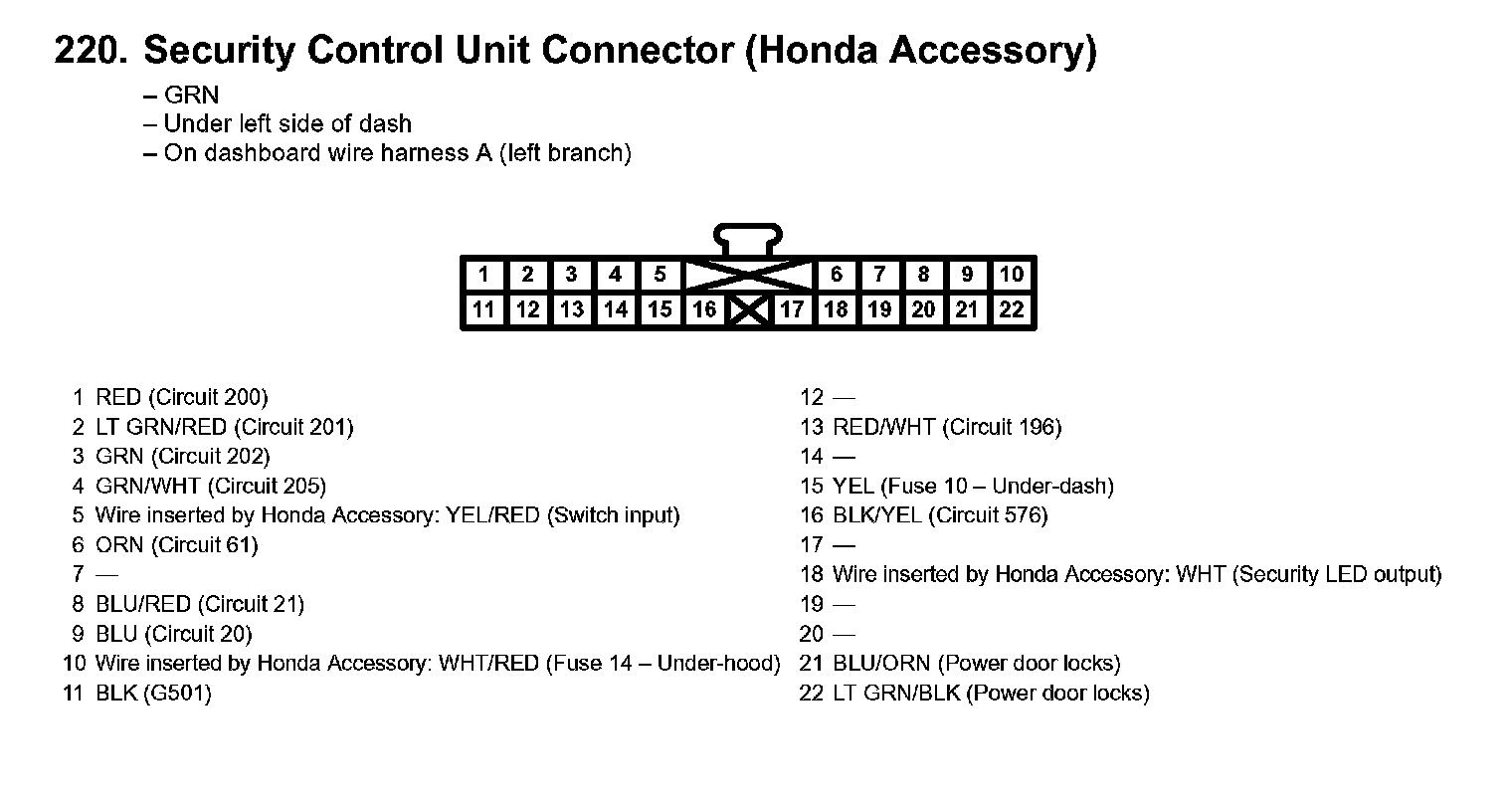

220. Security Control Unit Connector (Honda Accessory):
