Home
>>
Honda
>>
2005
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
Combination Switch

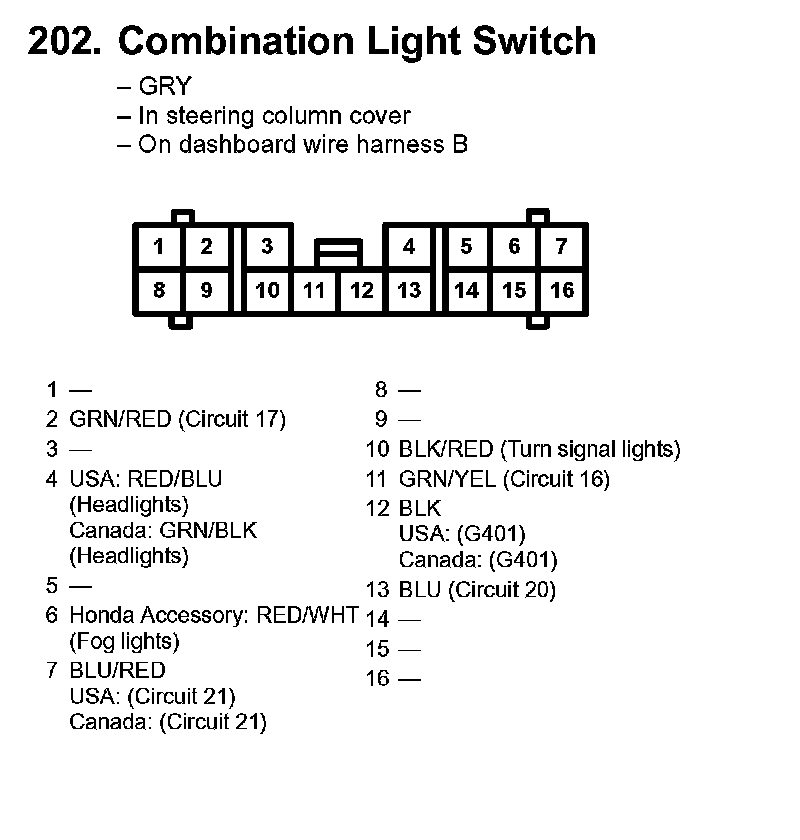

202. Combination Light Switch:
