Door Switch

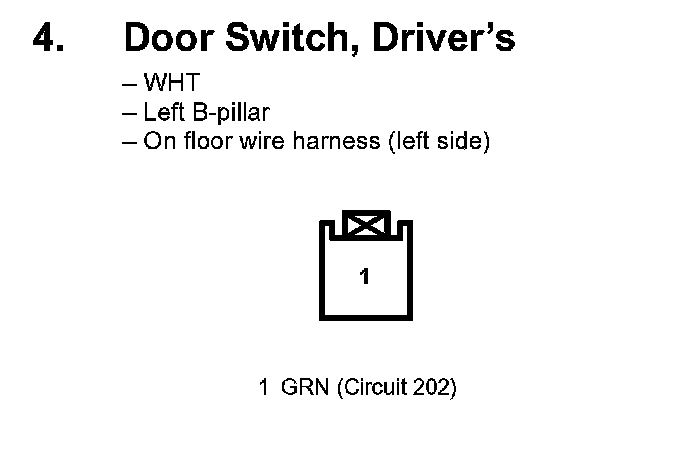

4. Door Switch, Driver's:

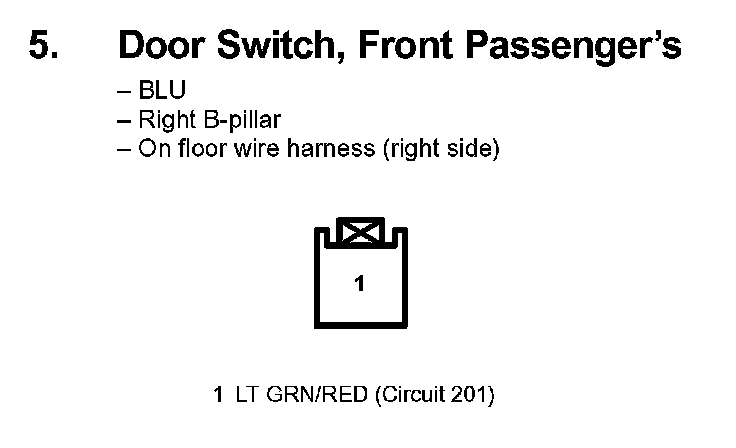

5. Door Switch, Front Passenger's:

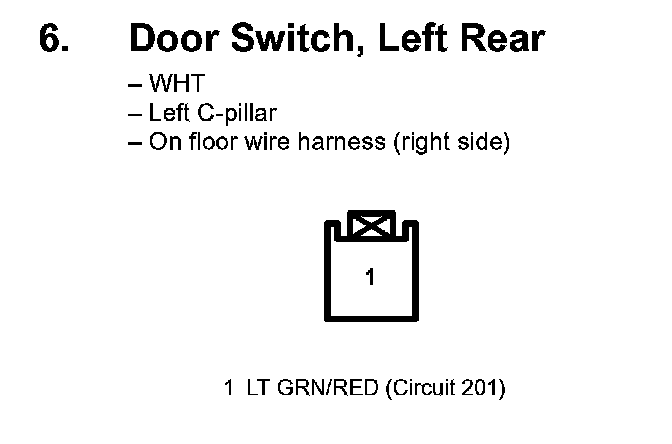

6. Door Switch, Left Rear:

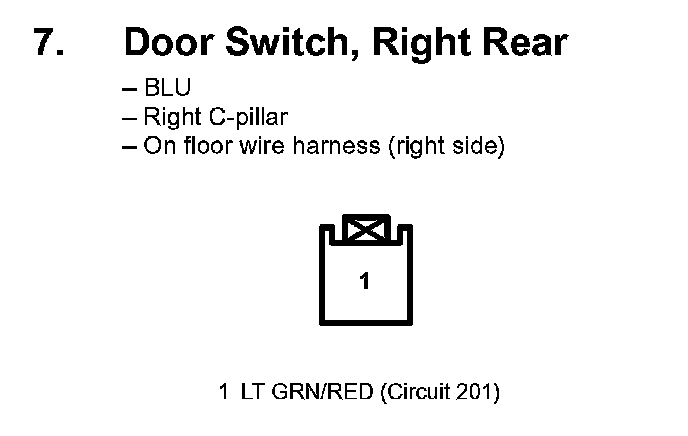

7. Door Switch, Right Rear:
