System Diagram

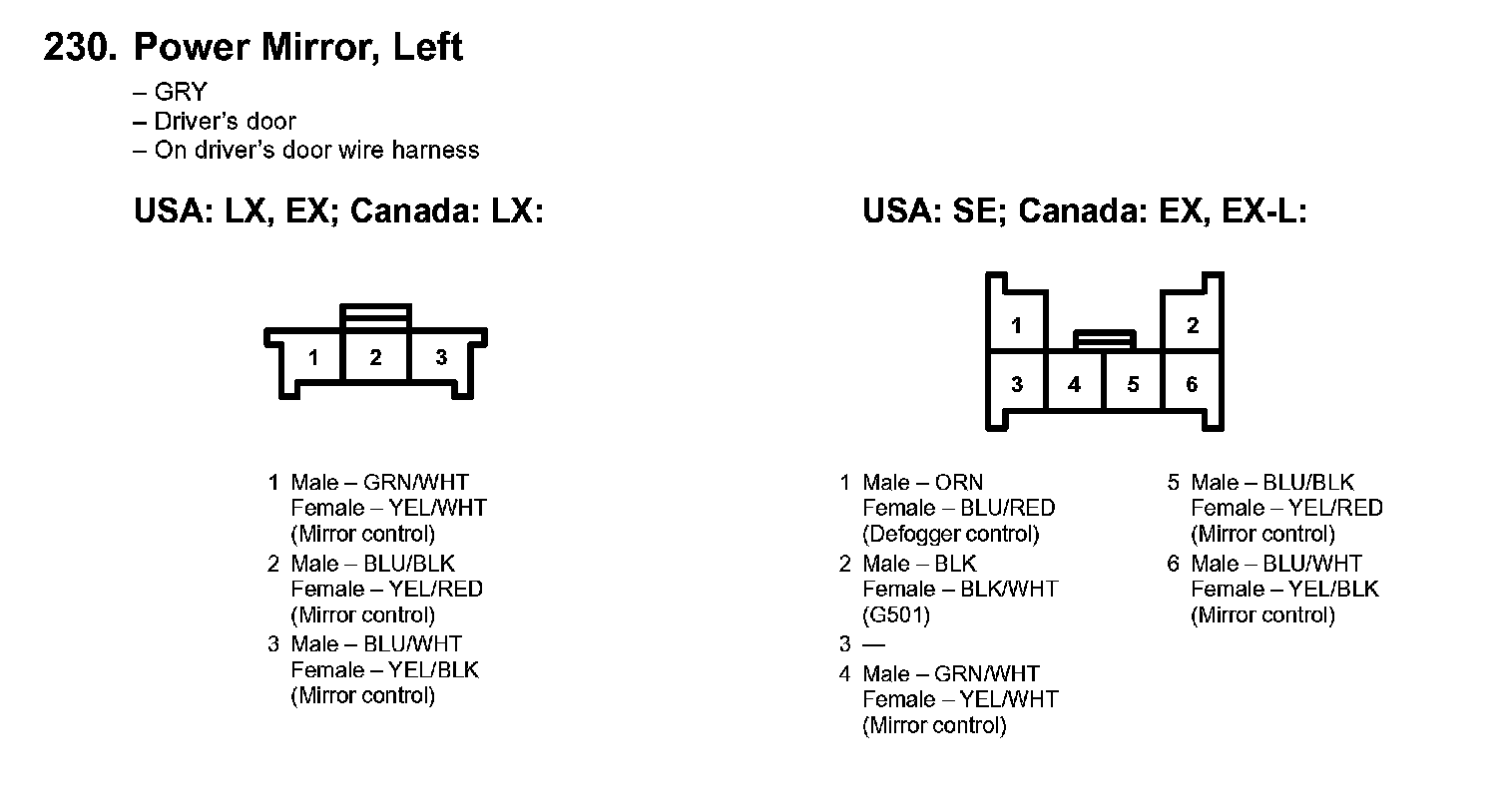

230. Power Mirror, Left:

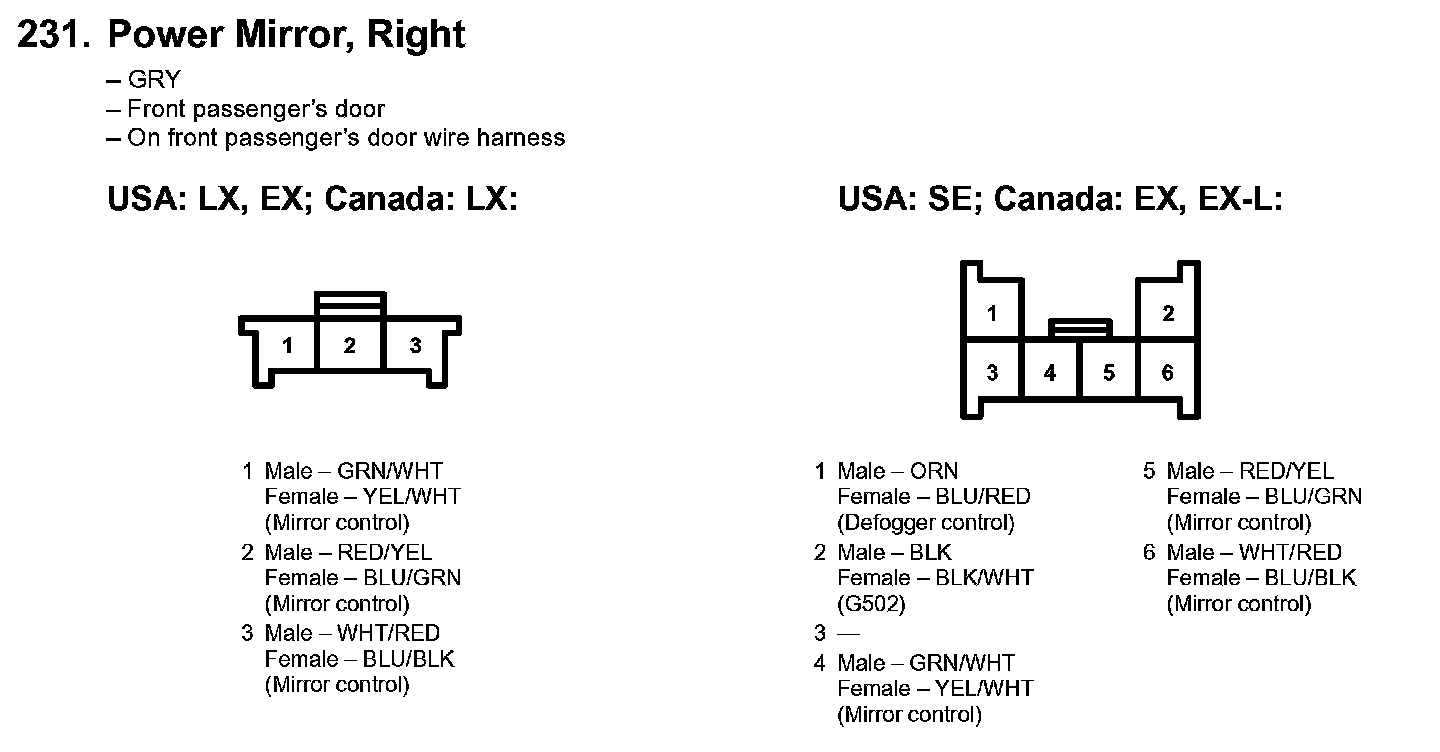

231. Power Mirror, Right:

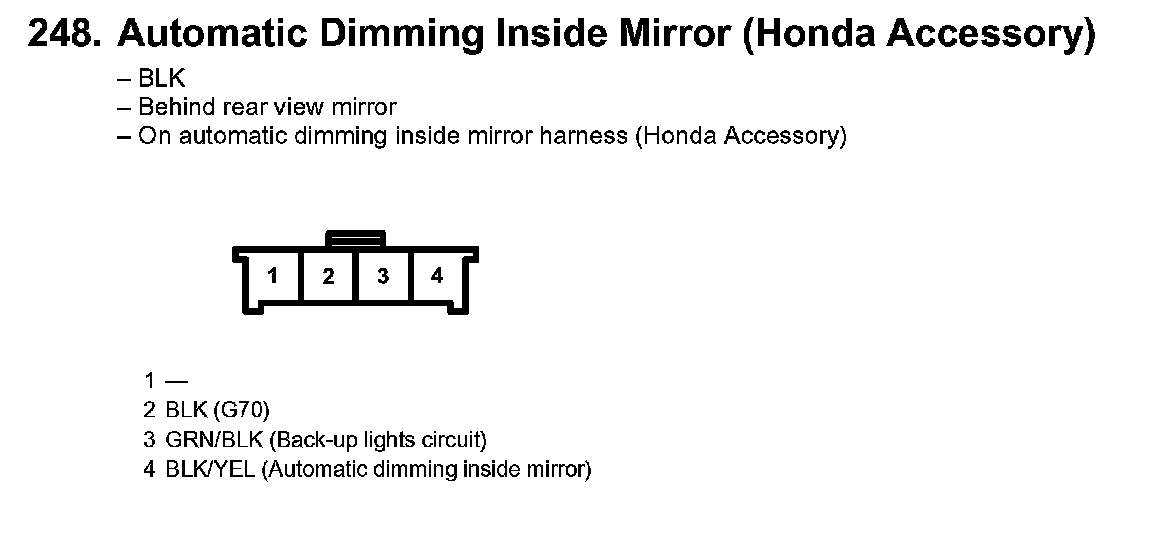

248. Automatic Dimming Inside Mirror (Honda Accessory):
