Power Door Lock Switch
Power Door Lock Switch

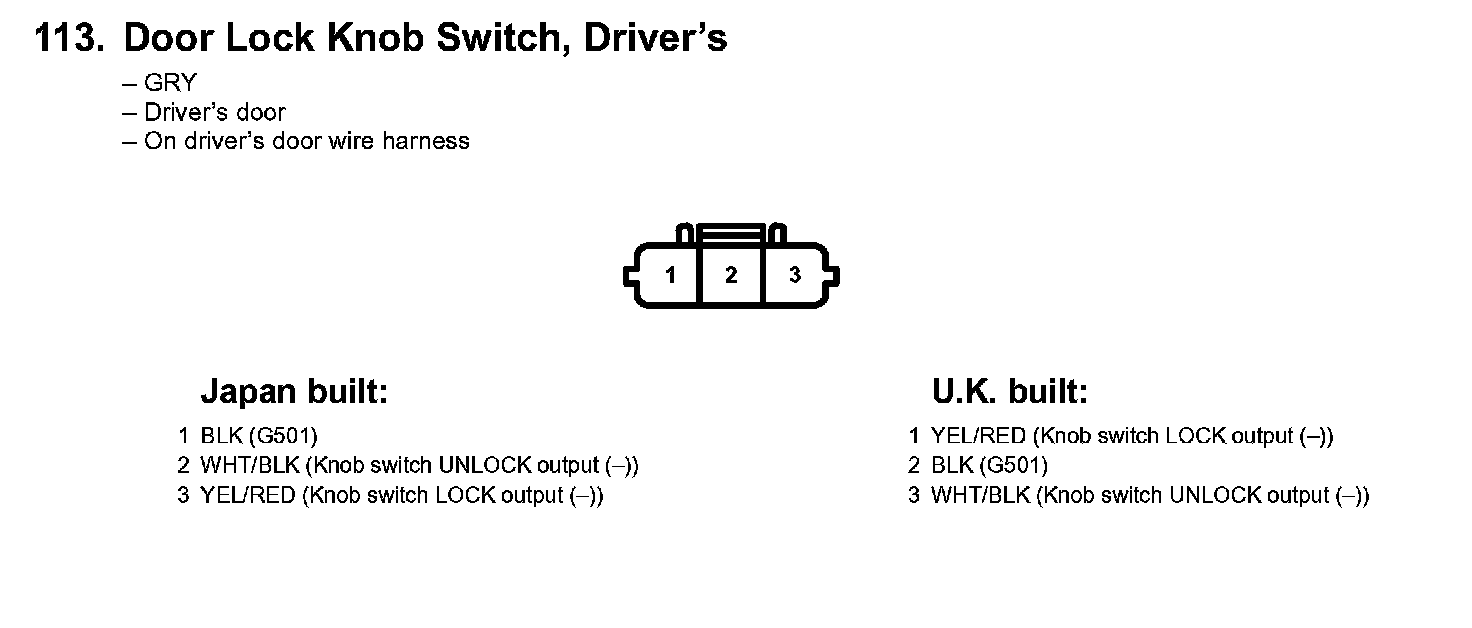

113. Door Lock Knob Switch, Driver's:

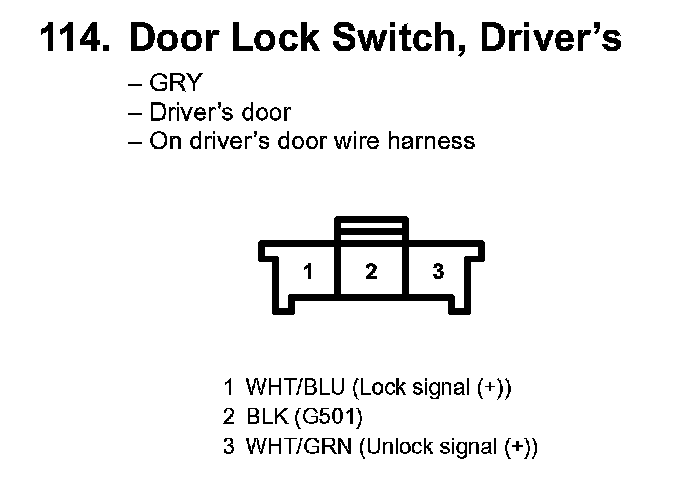

114. Door Lock Switch, Driver's:

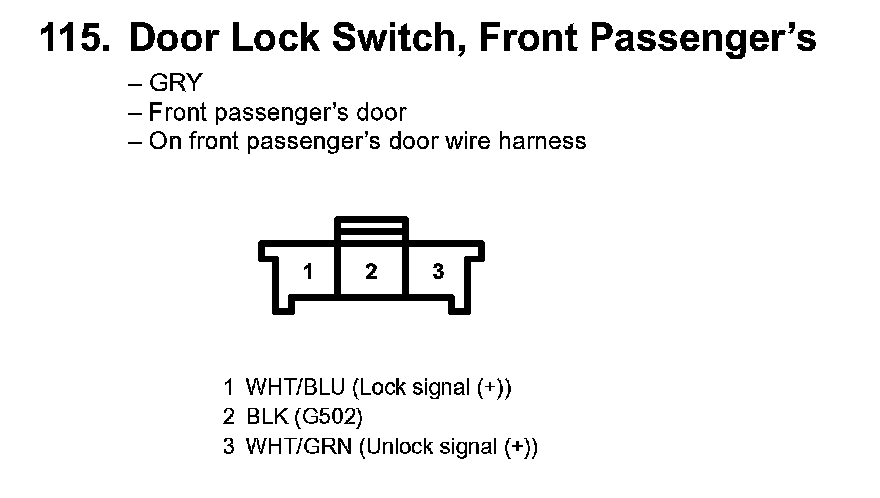

115. Door Lock Switch, Front Passenger's:
