Seat Temperature Element
Seat Temperature Element

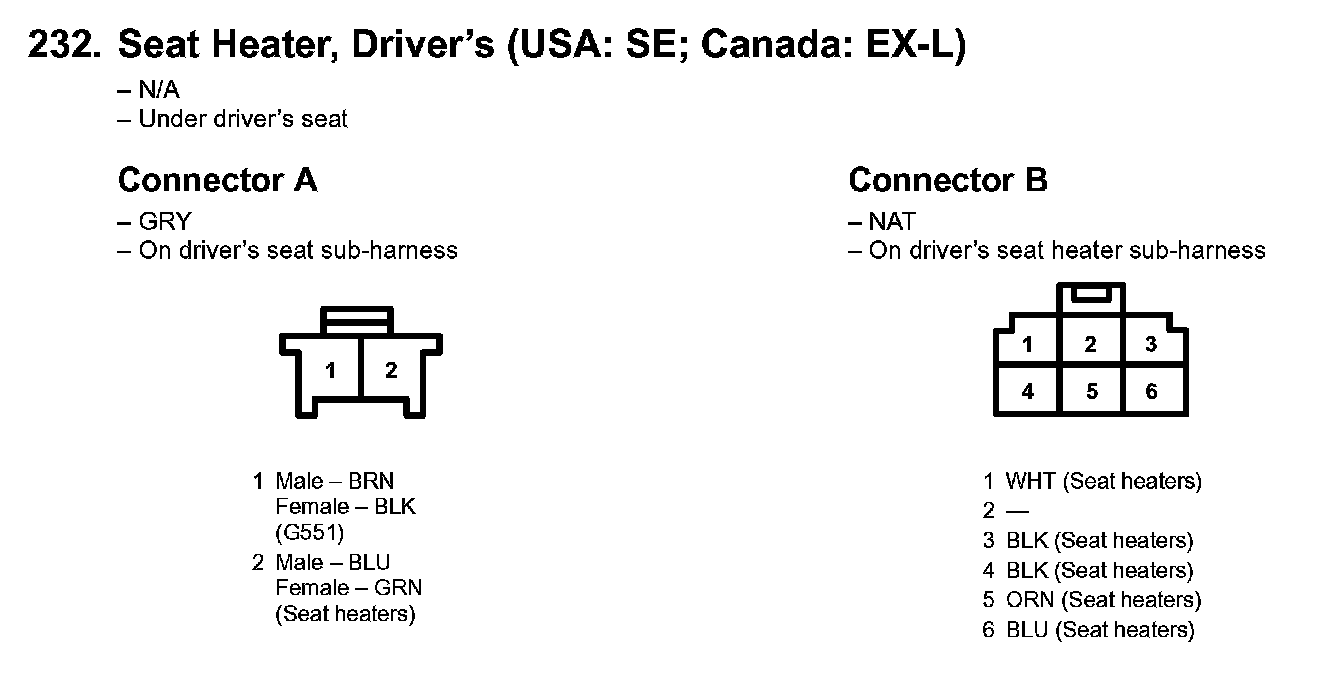

232. Seat Heater, Driver's (USA: SE; Canada: EX-L):

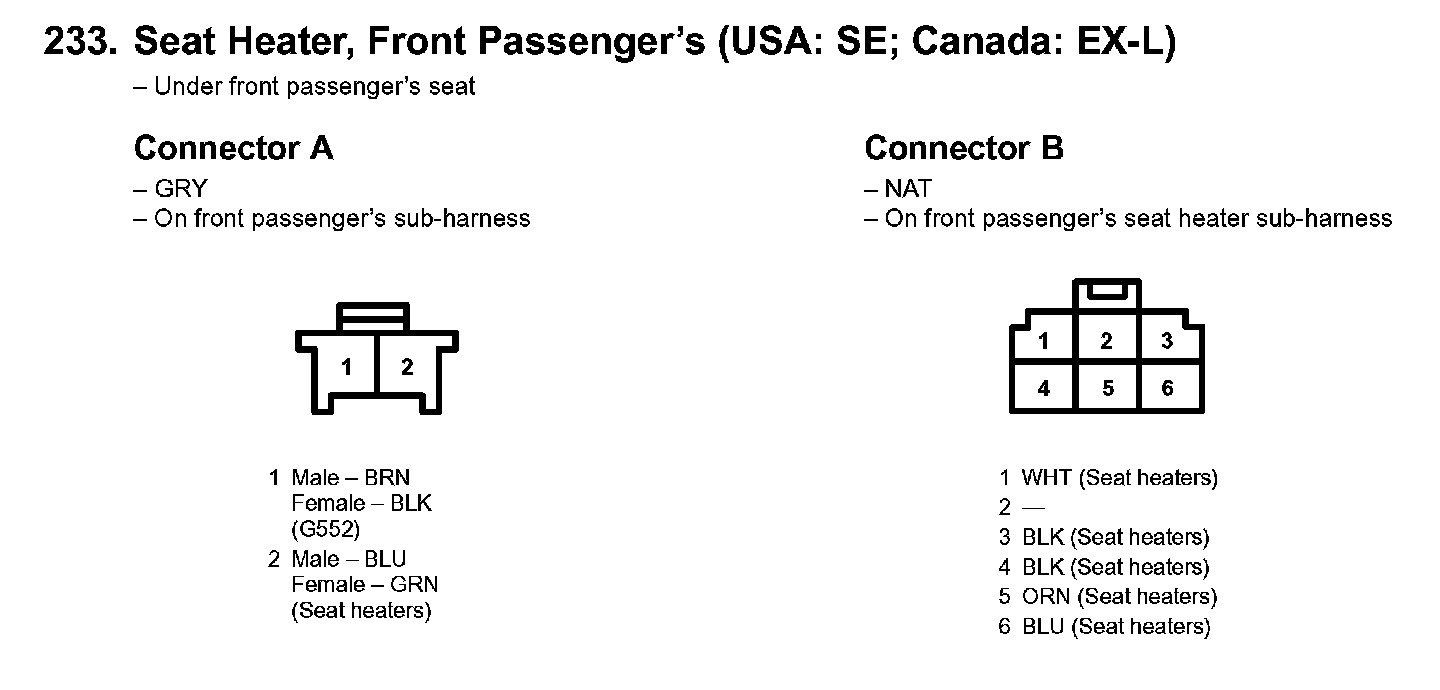

233. Seat Heater, Front Passenger's (USA: SE; Canada: EX-L):
