Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2005
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
Trailer Connector

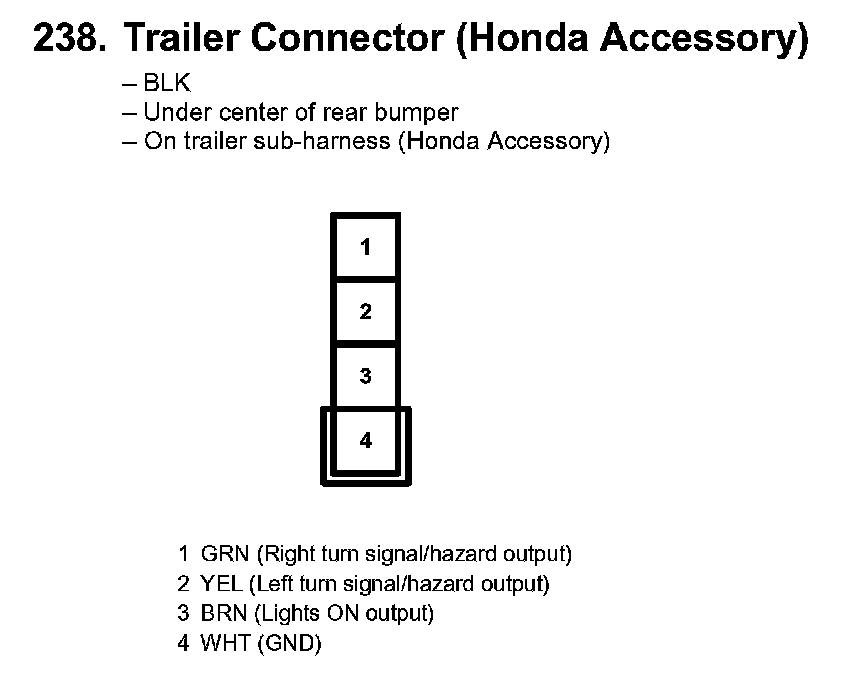

238. Trailer Connector (Honda Accessory):
