Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

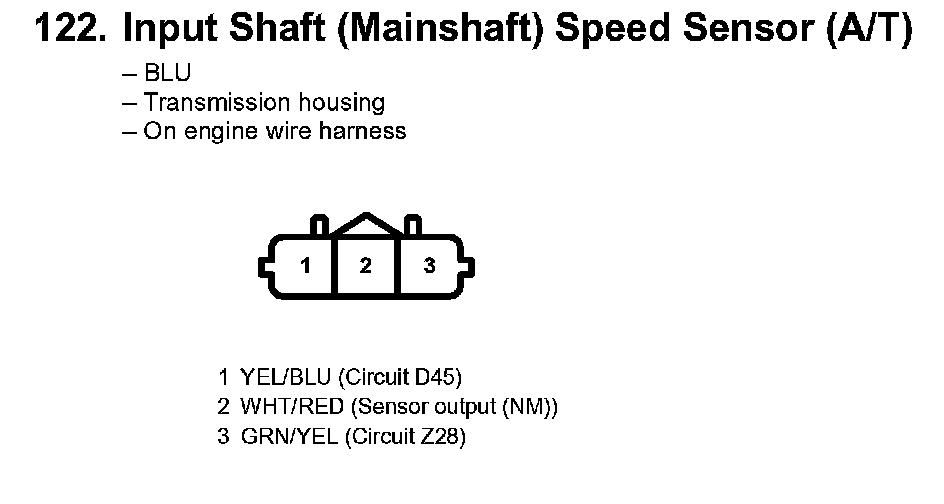

122. Input Shaft (Mainshaft) Speed Sensor (A/T):

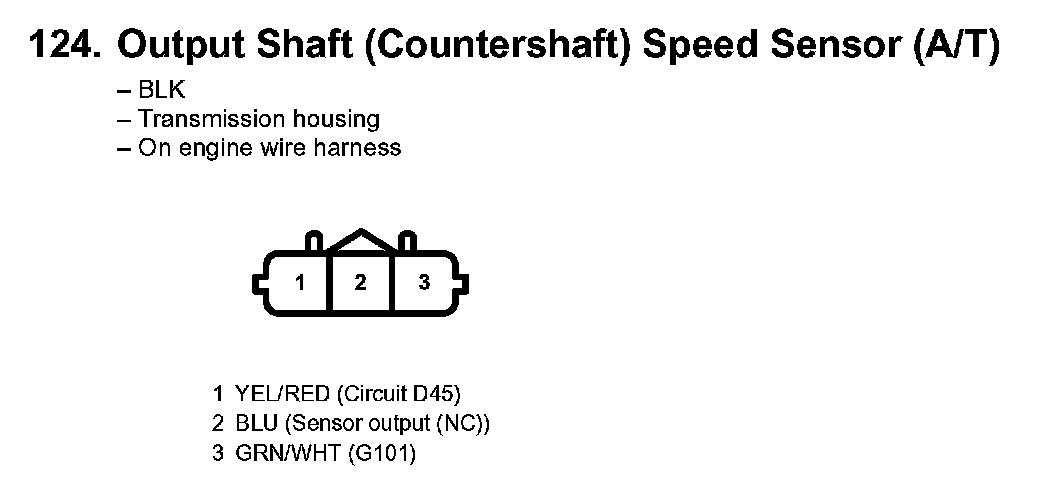

124. Output Shaft (Countershaft) Speed Sensor (A/T):
