Trunk / Liftgate Position Sensor

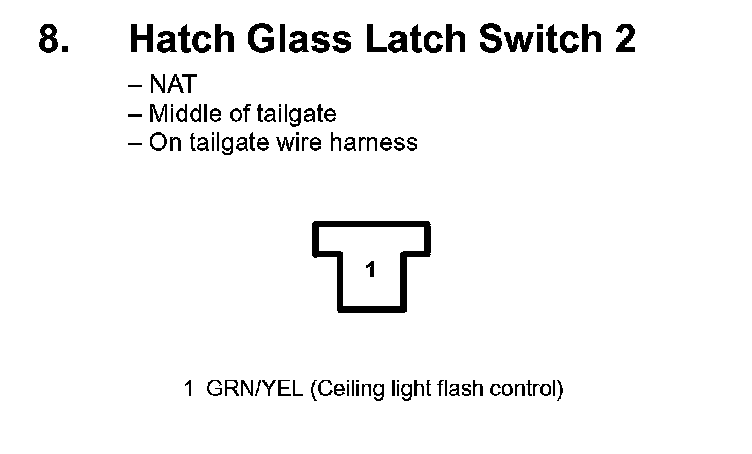

8. Hatch Glass Latch Switch 2:

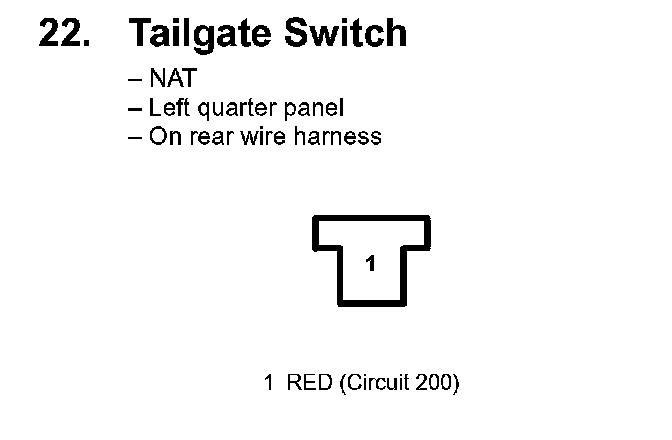

22. Tailgate Switch:

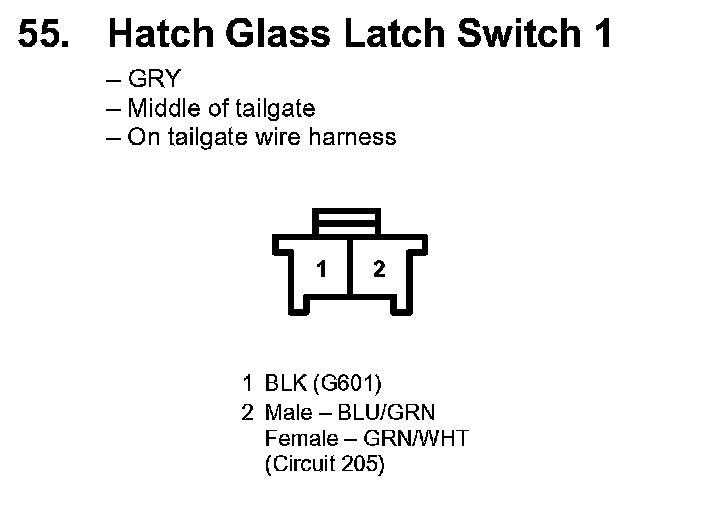

55. Hatch Glass Latch Switch 1:
