Variable Induction Position Sensor
Variable Induction Position Sensor

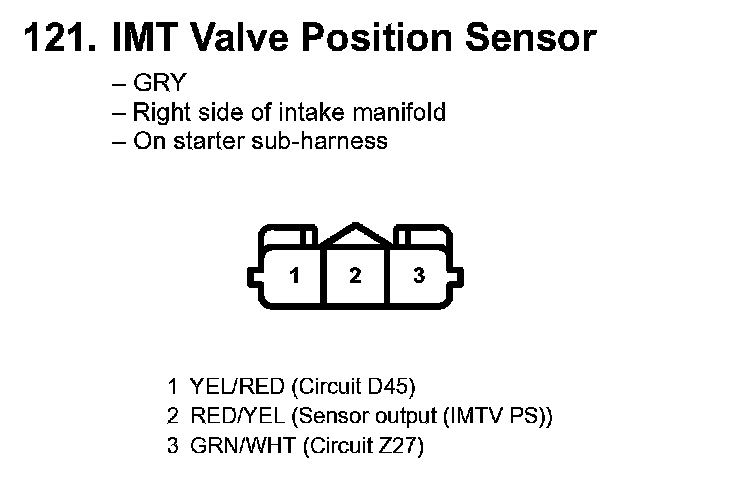

121. IMT Valve Position Sensor:
