Wheel Speed Sensor

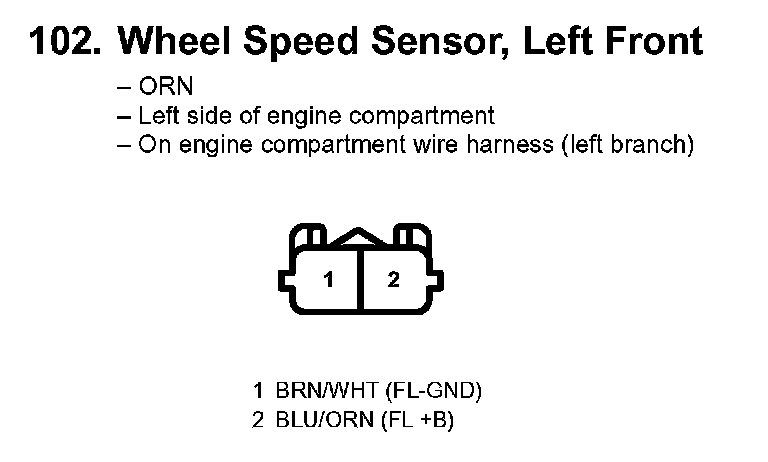

102. Wheel Speed Sensor, Left Front:

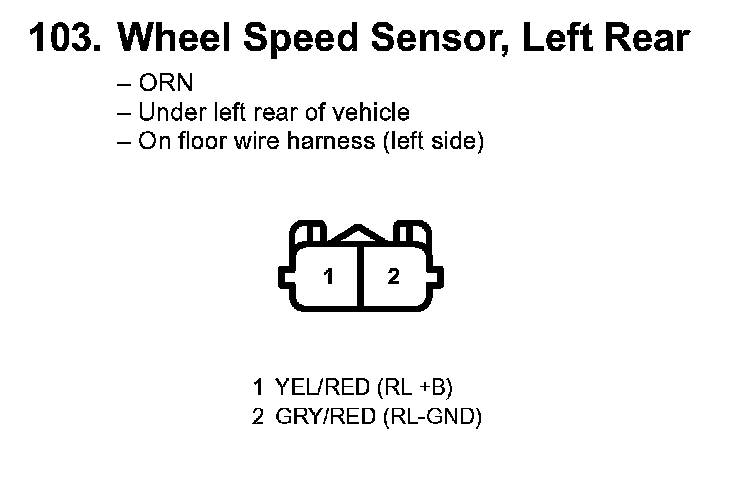

103. Wheel Speed Sensor, Left Rear:

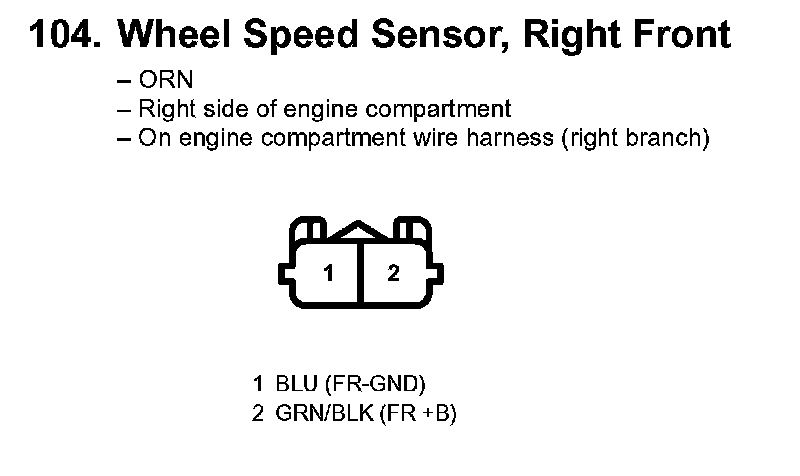

104. Wheel Speed Sensor, Right Front:

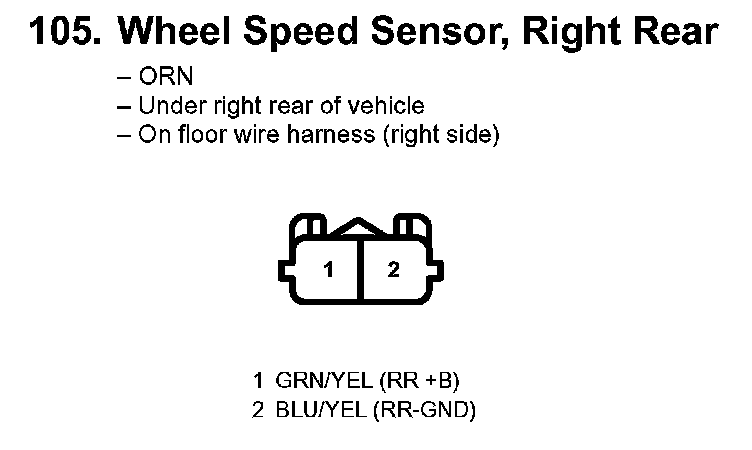

105. Wheel Speed Sensor, Right Rear:
