Honda
>>
2005
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Motor
Windshield Washer Motor

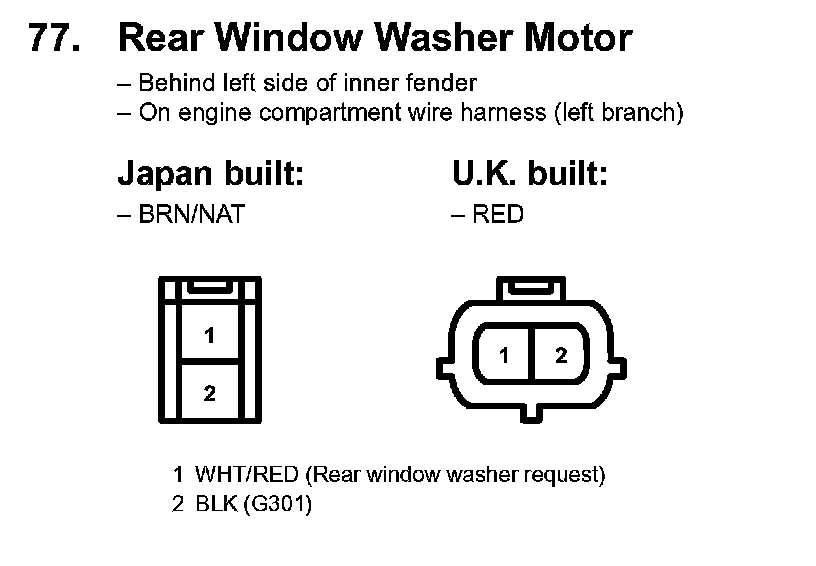

77. Rear Window Washer Motor:

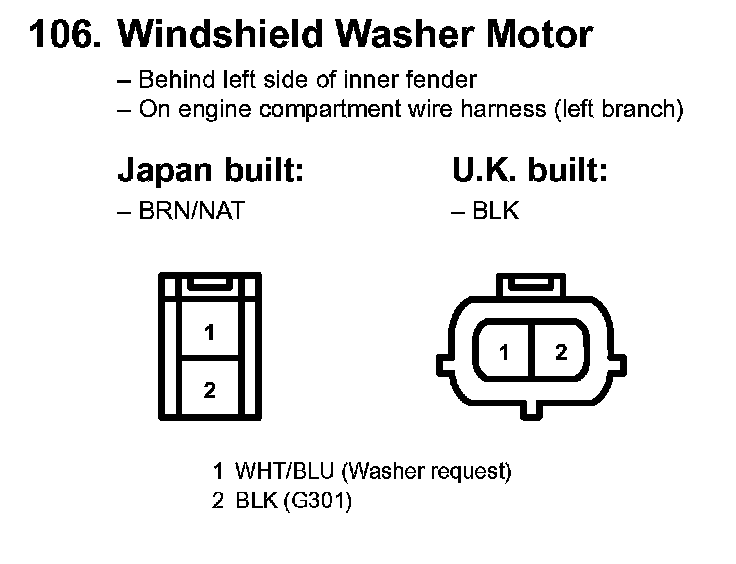

106. Windshield Washer Motor:
