Cylinder Block Assembly

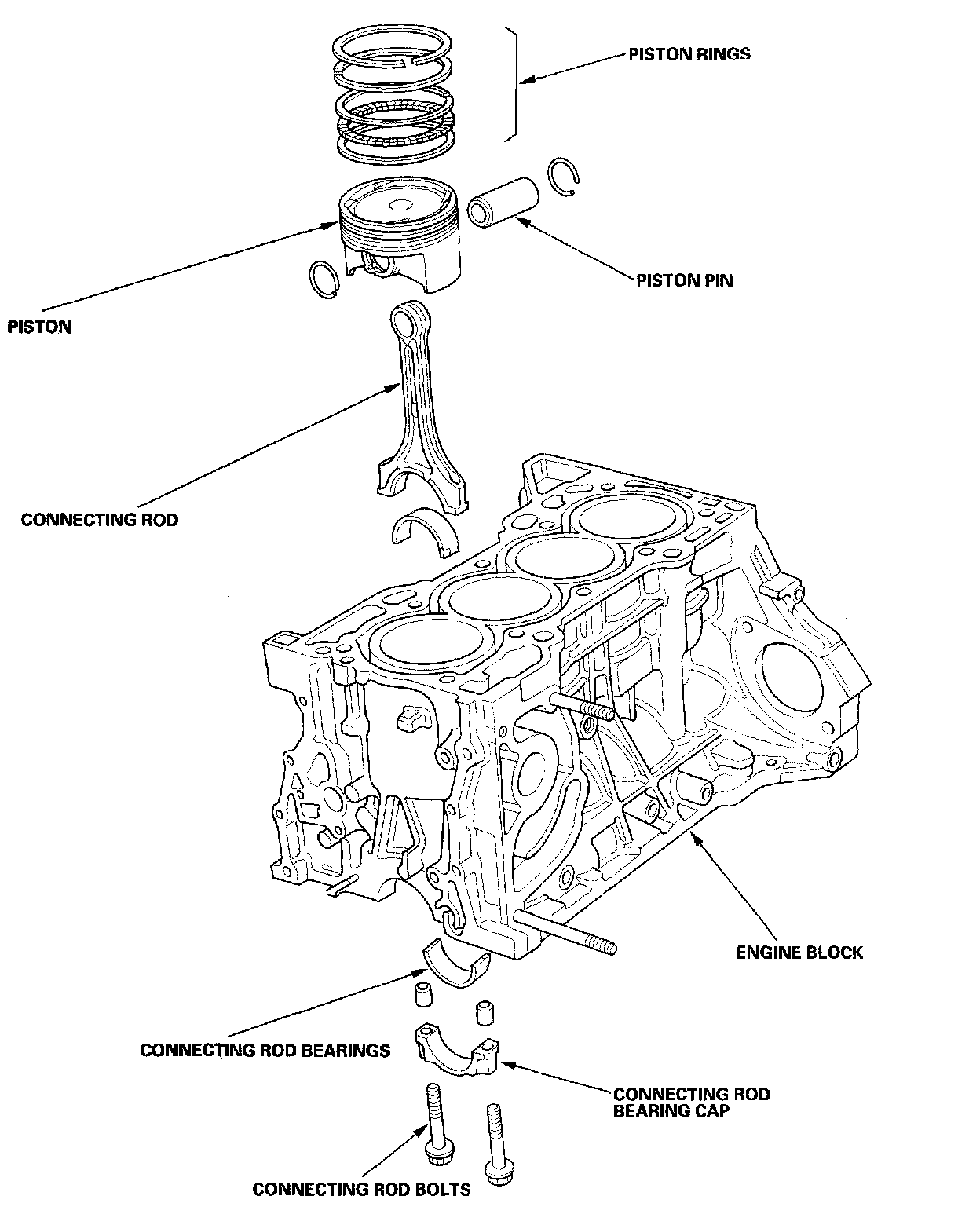

Engine Block Component Illustration Index, Part 1 Of 2:

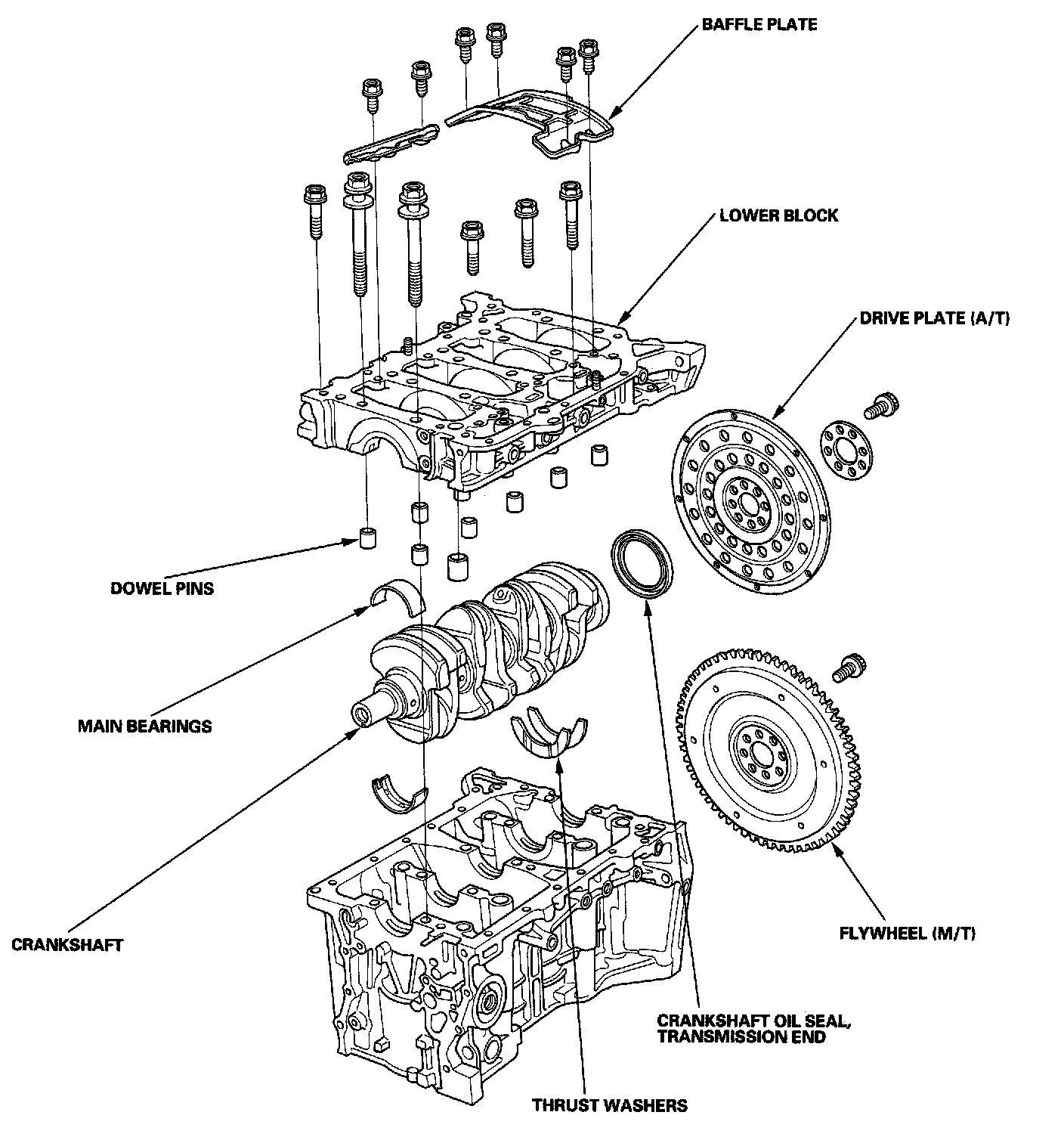

Engine Block Component Illustration Index, Part 2 Of 2:
