Cylinder Head Assembly

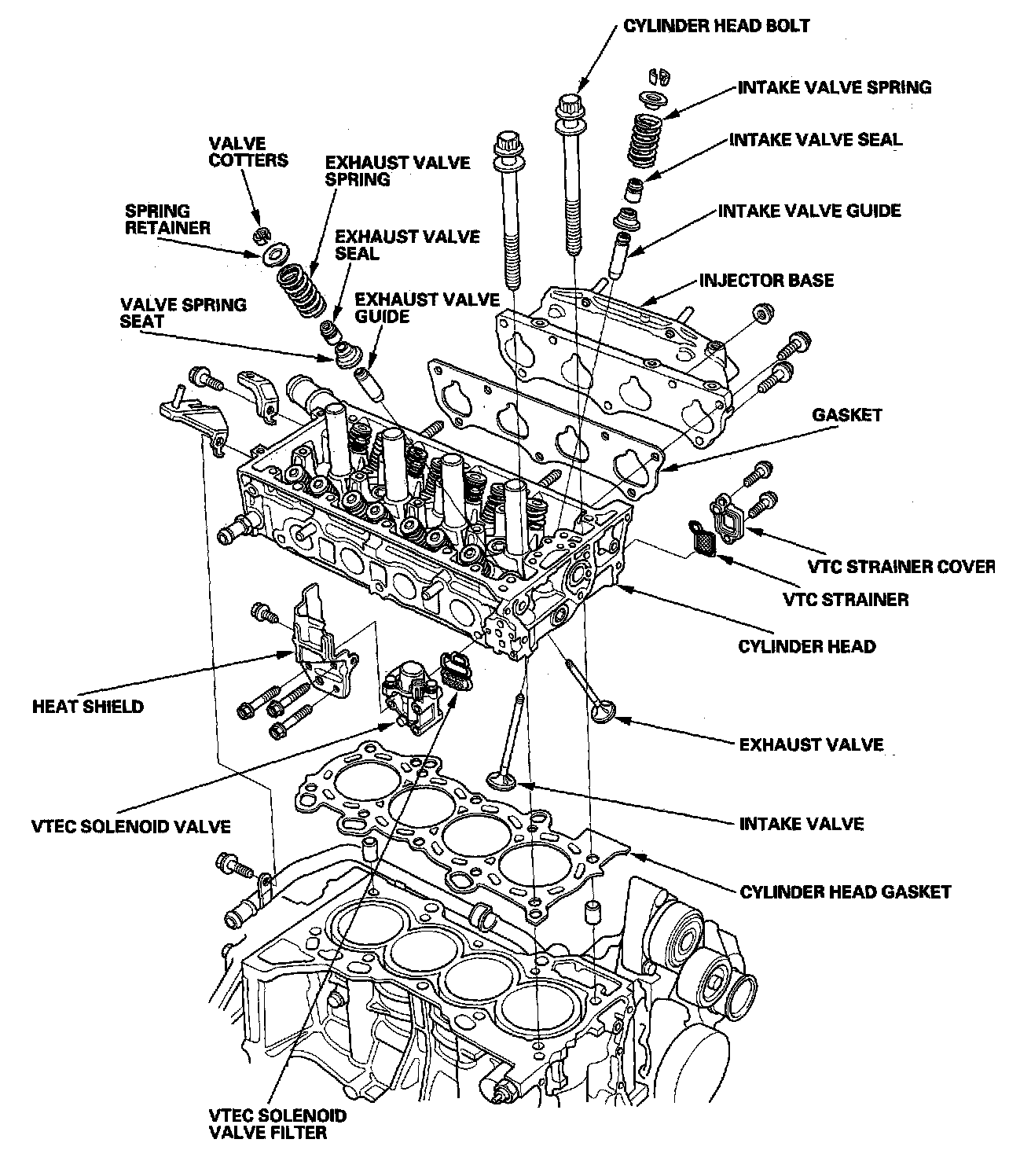

Cylinder Head Component Location Index Part 1 Of 3:

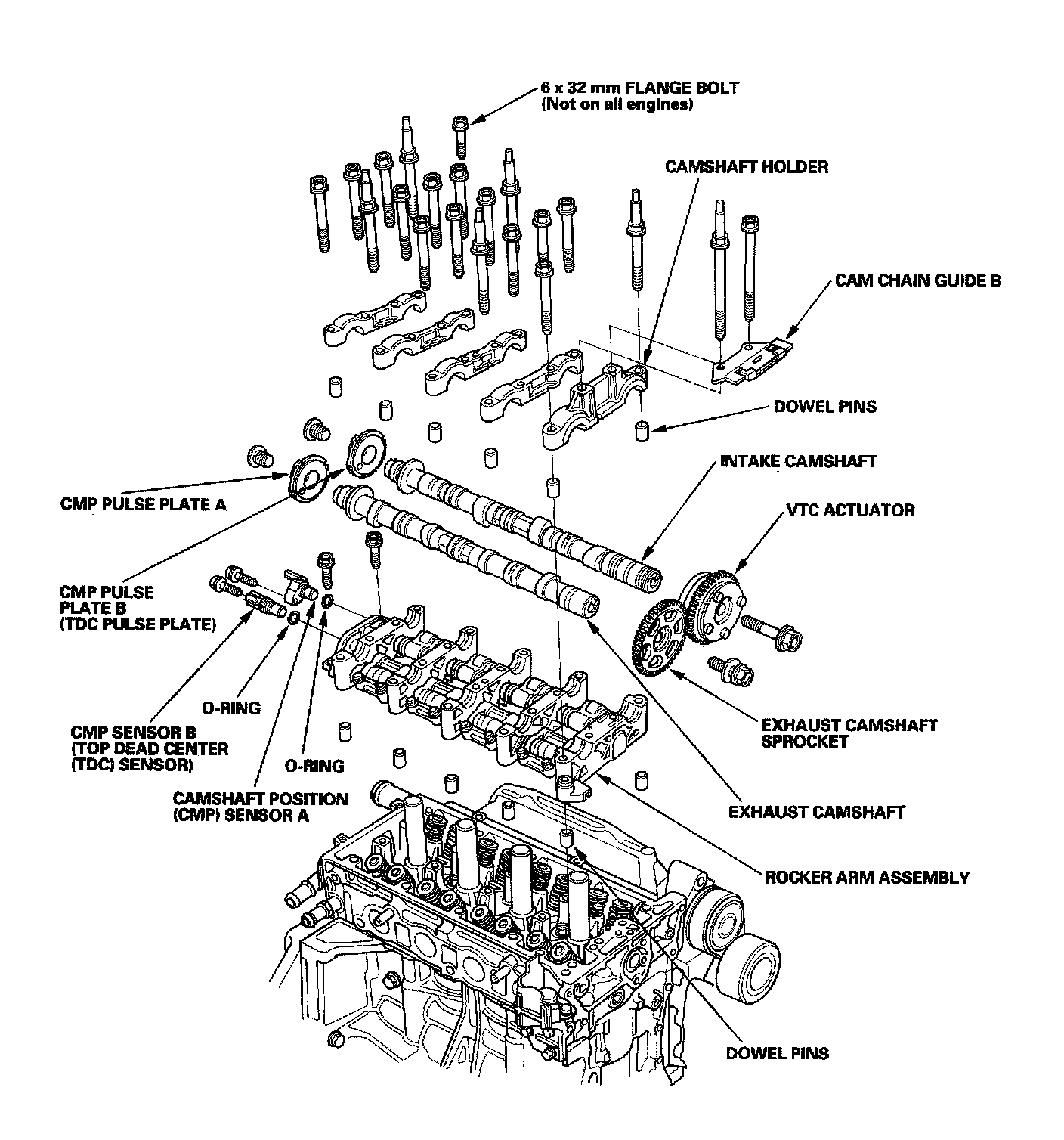

Cylinder Head Component Location Index Part 2 Of 3:

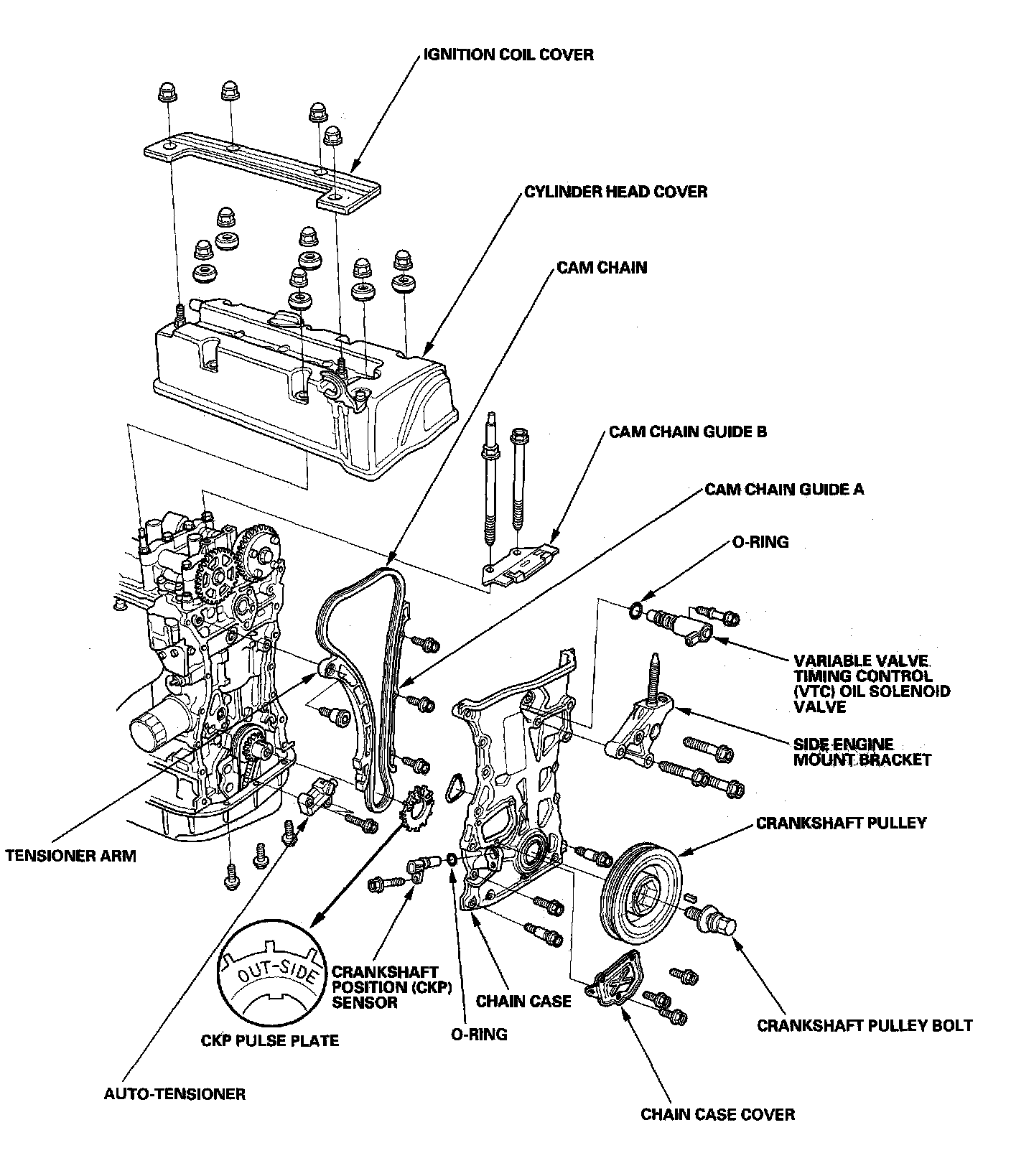

Cylinder Head Component Location Index Part 3 Of 3:
