Air Cleaner Housing: Service and Repair

Air Cleaner Removal/Installation

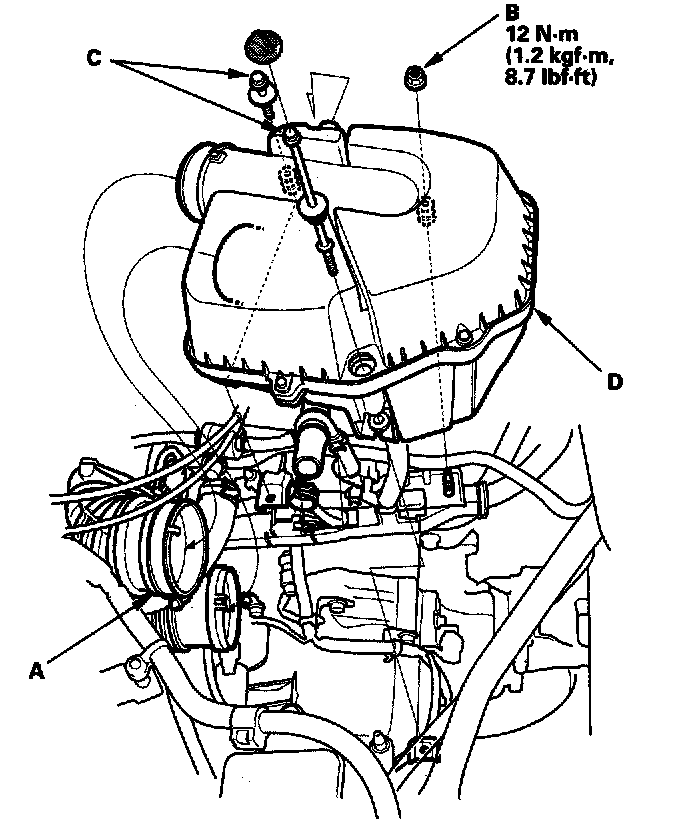

1. Remove the clamp (A), the nut (B), and the bolts (C).
2. Remove the air cleaner (D).

NOTE: When disconnecting the hose, be careful not to damage the hose joint.

3. Install in the reverse order of removal.
