Home
>>
Honda
>>
2005
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>
Connector Locations
Connector Locations

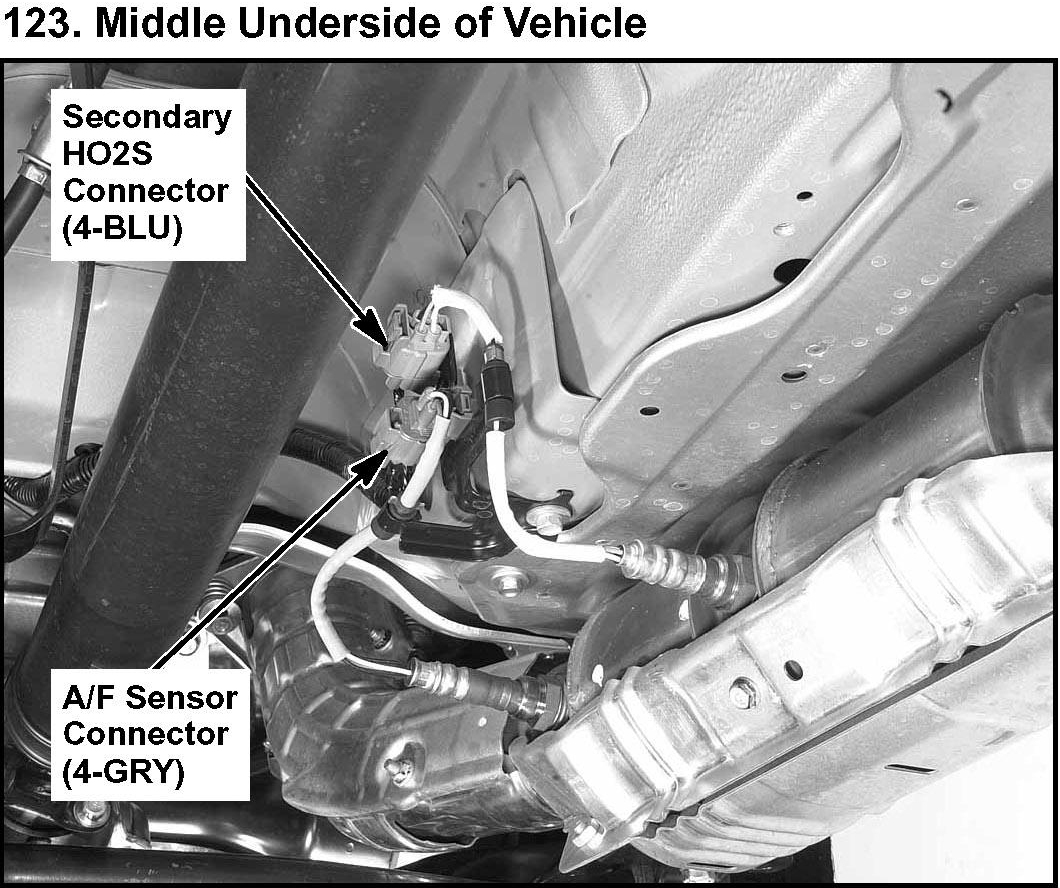

123. Middle Underside Of Vehicle:
