Engine Controls - MIL ON/DTC P0128 Is Set

08-099

July 20, 2011

Applies To:
2005-06 CR-V - ALL

2005-06 CR-V: - MIL Comes On With DTC P0128
(Supersedes 08-099, dated December 18, 2008 to revise the informtion marked by asterisks)

REVISION SUMMARY

*Under WARRANTY CLAIM INFORMATION, the flat rate time was changed because the MVCI updates control modules more efficiently.*

SYMPTOM

The MIL comes on with DTC P0128 (cooling system malfunction).

PROBABLE CAUSE

The PGM-FI software misinterprets sensor inputs as a cooling system malfunction, causing DTC P0128 to be set.

CORRECTIVE ACTION

Update the PGM-FI software with the HDS.

WARRANTY CLAIM INFORMATION

The normal warranty applies.

*Operation Number: 1255A2

Flat Rate Time: 0.2 hour*

Failed Part: P/N 37820-PPA-416

Defect Code: 03214

Symptom Code: 03203

Skill Level: Repair Technician

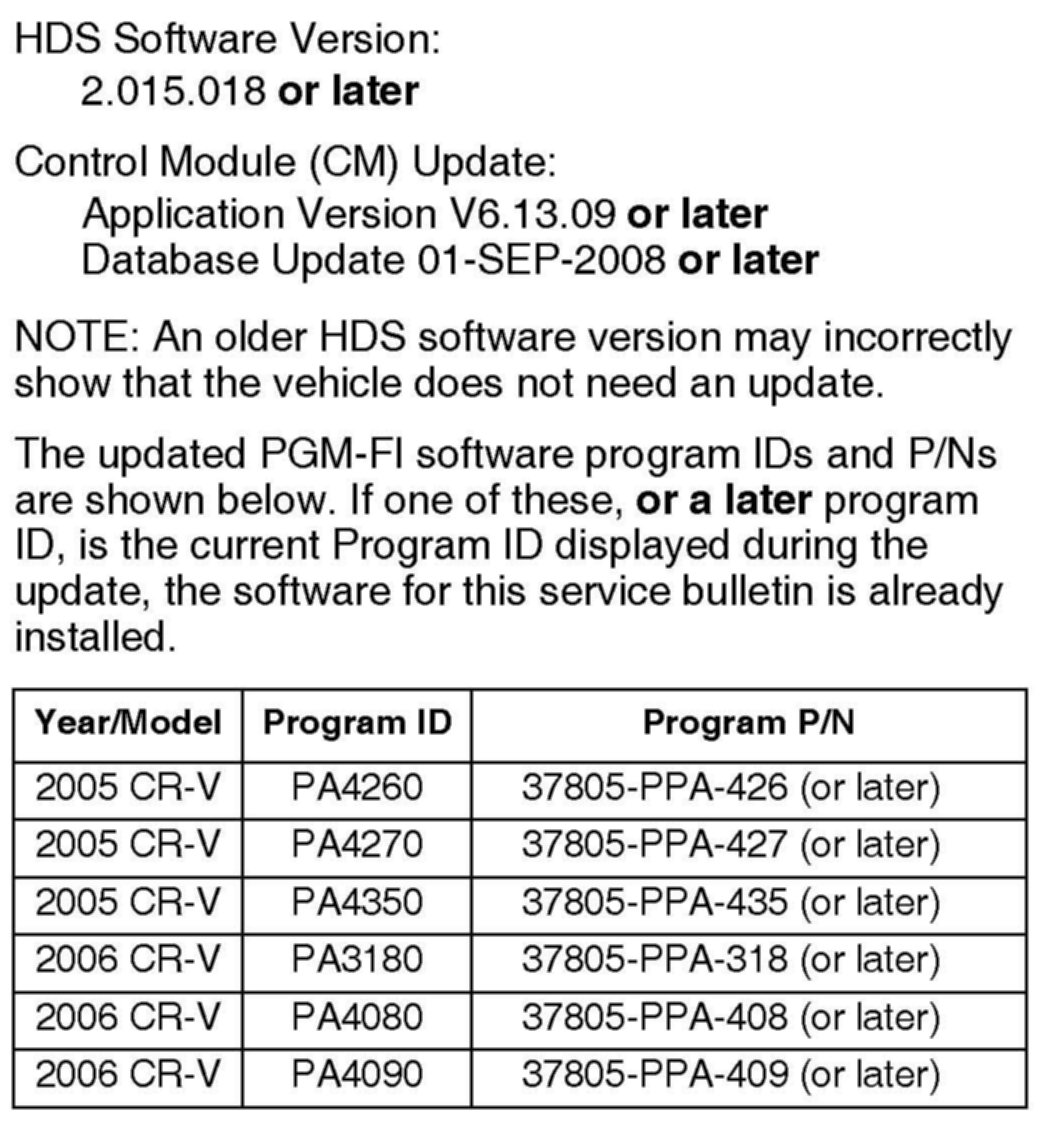

SOFTWARE INFORMATION

REPAIR PROCEDURE

Update the PGM-FI software with the HDS. Refer to Service Bulletin 01-023, Updating Control Units/Modules.
