Fuel Return Line: Service and Repair

Fuel Line/Quick-Connect Fitting Precautions

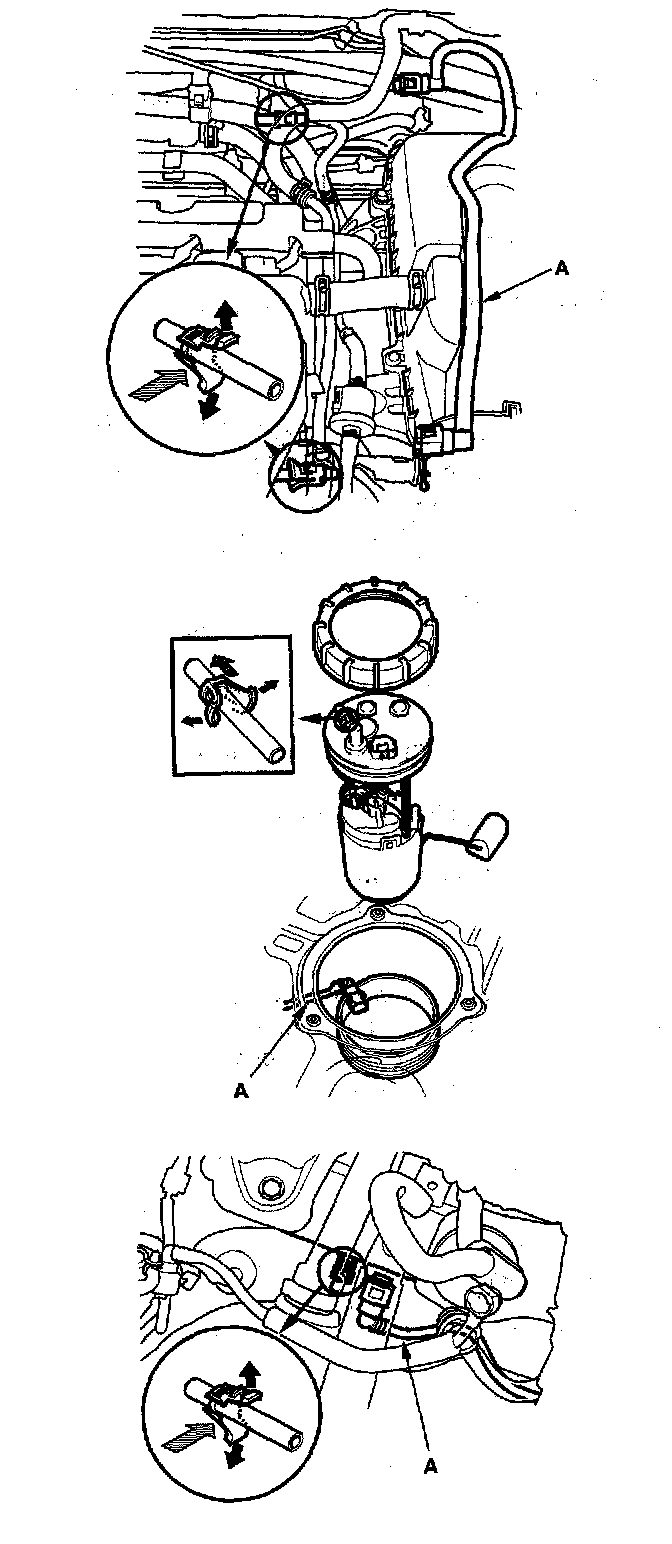

The fuel tube/quick-connect fittings (A), (B), (C), (D) connect the fuel rail (E) to fuel feed hose (F), the fuel feed hose to the fuel line (G), the fuel line (H) to the fuel tank unit (I), fuel filler vapor recirculation tube (J) to the fuel fill pipe (K), and fuel vapor line (L) to the EVAP canister (M). When removing or installing the fuel feed hose, fuel tank unit or fuel tank, it is necessary to disconnect or connect the quick-connect fittings. Pay attention to the following:







- The fuel feed hose, fuel line and quick-connect fittings are not heat-resistant; be careful not to damage them during welding or other heat-generating procedures.
- The fuel feed hose, fuel line and quick-connect fittings are not acid-proof; do not touch them with a shop towel which was used for wiping battery electrolyte. Replace them if they came into contact with electrolyte or something similar.
- When connecting or disconnecting the fuel feed hose, fuel line and quick-connect fittings, be careful not to bend or twist them excessively. Replace them if damaged.




A disconnected quick-connect fitting can be reconnected, but the retainer on the mating pipe cannot be reused once it has been removed from the pipe. Replace the retainer when
- replacing the fuel rail.
- replacing the fuel line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the fuel gauge sending unit.
- it has been removed from the pipe.
- it is damaged.

Fuel Line/Quick-Connect Fitting Removal

1. Relieve fuel pressure.

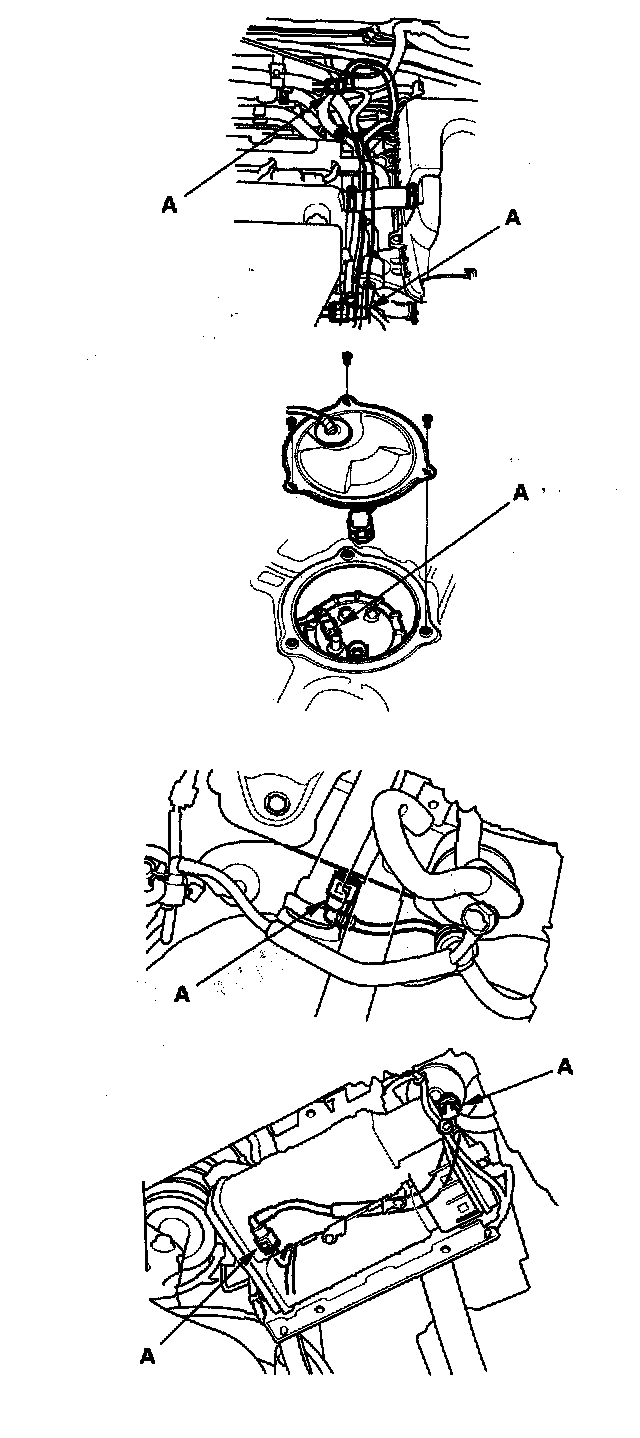

2. Check the fuel quick-connect fittings (A) for dirt, and clean if needed.

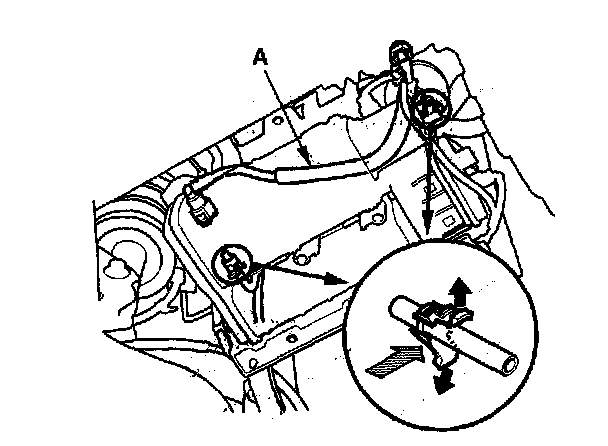

3. Hold the connector (A) with one hand and squeeze the retainer tabs (B) with the other hand to release them from the locking pawls (C). Pull the connector off.

NOTE:
- Be careful not to damage the line (D) or other parts. Do not use tools.

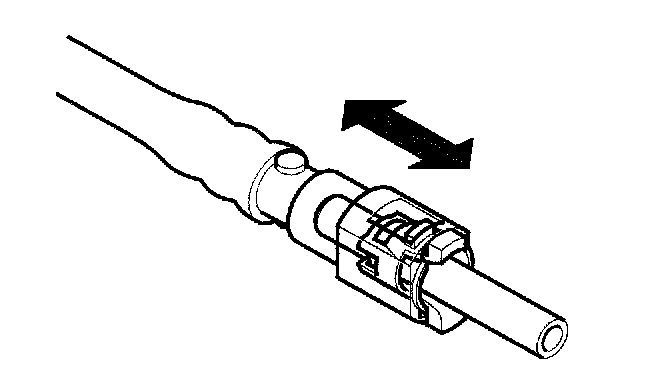

- If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
- Do not remove the retainer from the pipe; once removed, the retainer must be replaced with a new one.

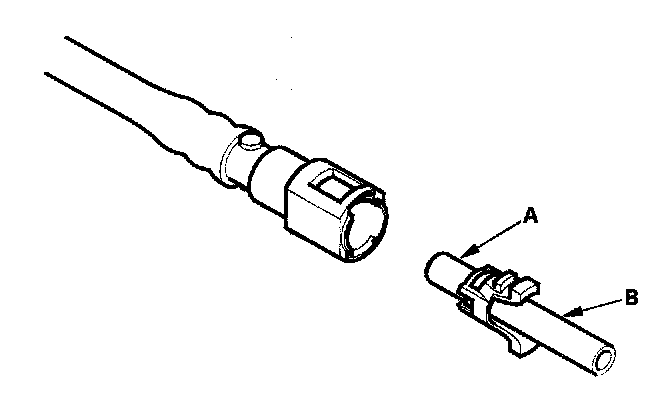

4. Check the contact area (A) of the line (B) for dirt and damage.
- If it is dirty, clean it.
- If it is rusty or damaged, replace the fuel pump, fuel filter, or fuel feed line.

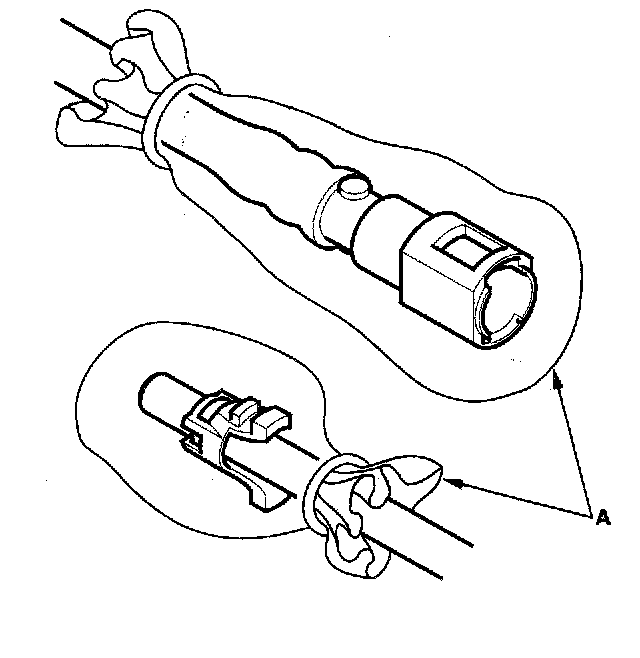

5. To prevent damage and keep foreign matter out, cover the disconnected connector and line end with plastic bags (A).

NOTE: The retainer cannot be reused once it has been removed from the line.

Replace the retainer when:
- replacing the fuel rail.
- replacing the fuel feed line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the fuel gauge sending unit.
- it has been removed from the line.
- it is damaged.

Fuel Line/Quick-Connect Fitting Installation

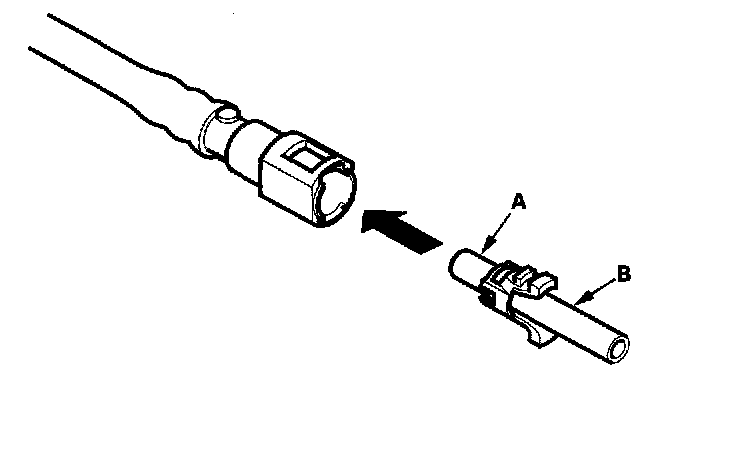

1. Check the contact area (A) of the pipe (B) for dirt and damage, and clean if necessary.

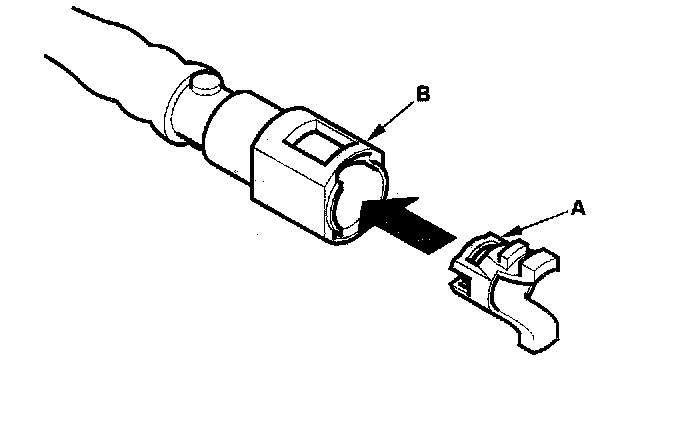

2. Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
- replacing the fuel rail.
- replacing the fuel feed line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the fuel gauge sending unit
- removing the retainer from the line.







3. Before connecting a new fuel tube/quick-connect fitting assembly (A), remove the old retainer from the mating pipe.

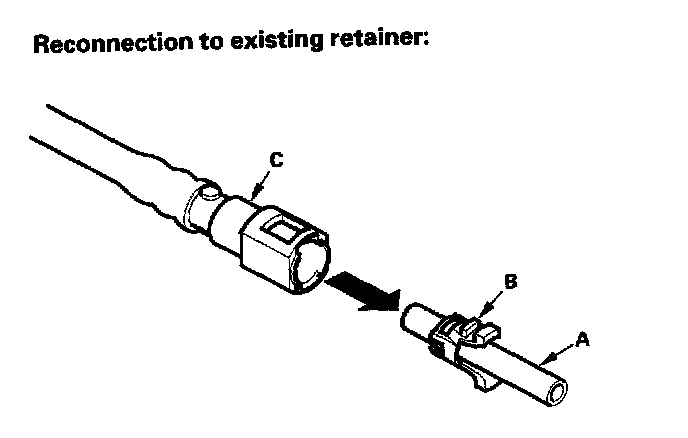

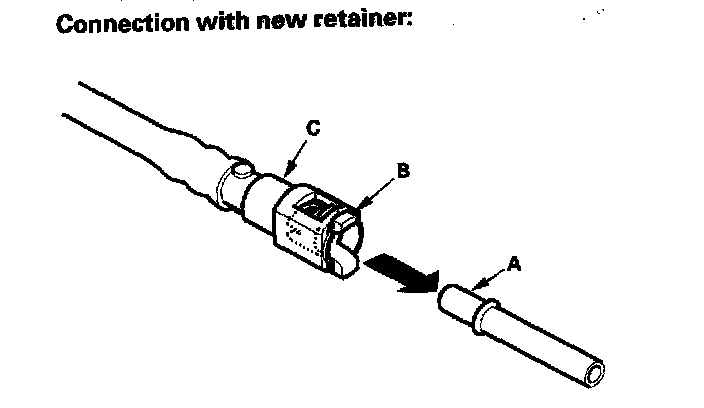

4. Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the connector tabs (C). Then press the quick-connect fittings onto the pipe until both retainer pawls lock with a clicking sound.

NOTE: If it is hard to connect, put a small amount of new engine oil on the line end.




5. Make sure the connection is secure and that the pawls are firmly locked into place; check visually and by pulling the connector.
6. Reconnect the negative cable to the battery, and turn the ignition switch ON (II). The fuel pump will run for about 2 seconds, and fuel pressure will rise. Repeat 2 or 3 times, and check that there is no leakage in the fuel supply system.
