Variable Induction Position Sensor: Locations

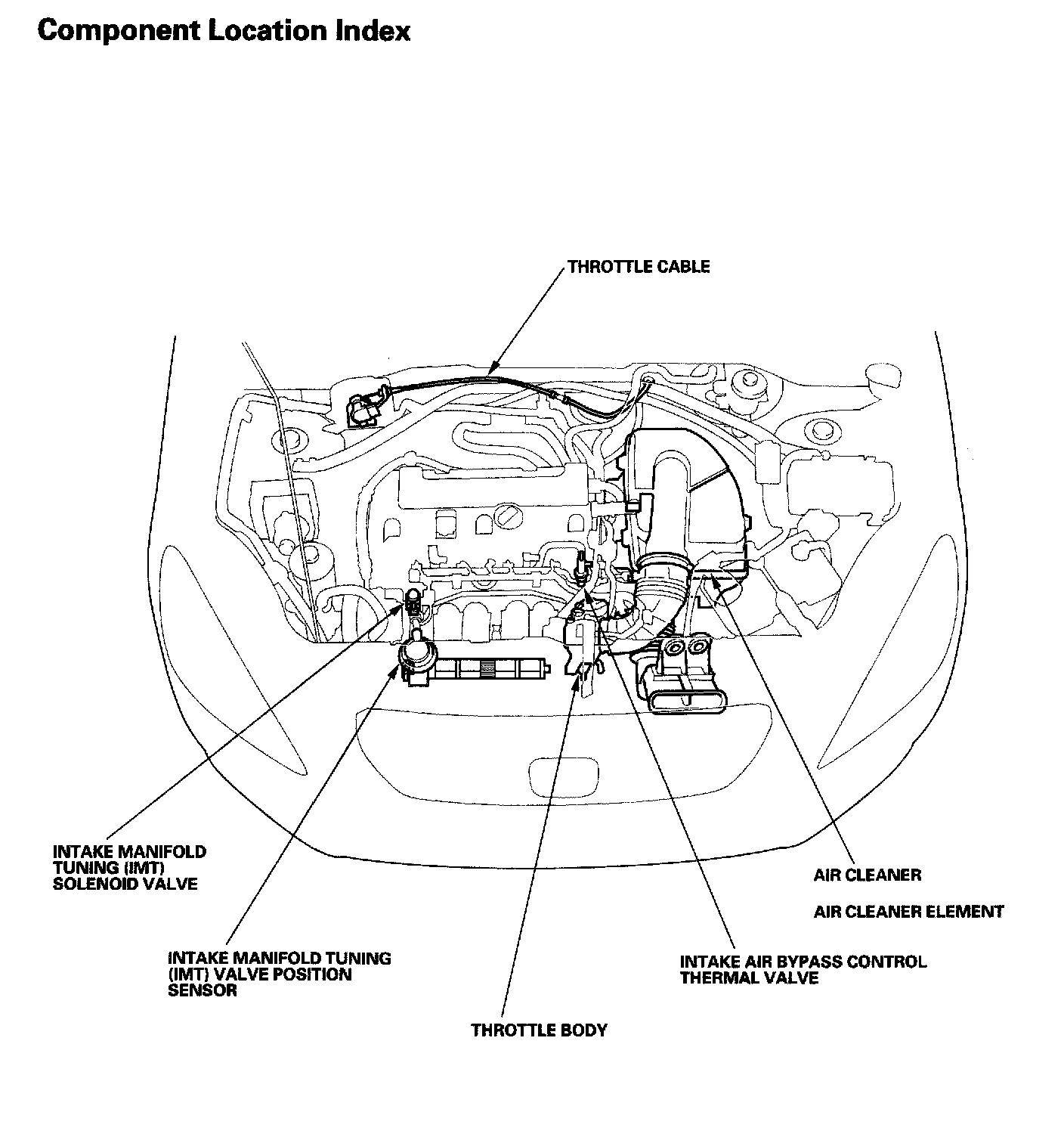

Intake Air System - Component Location Index:

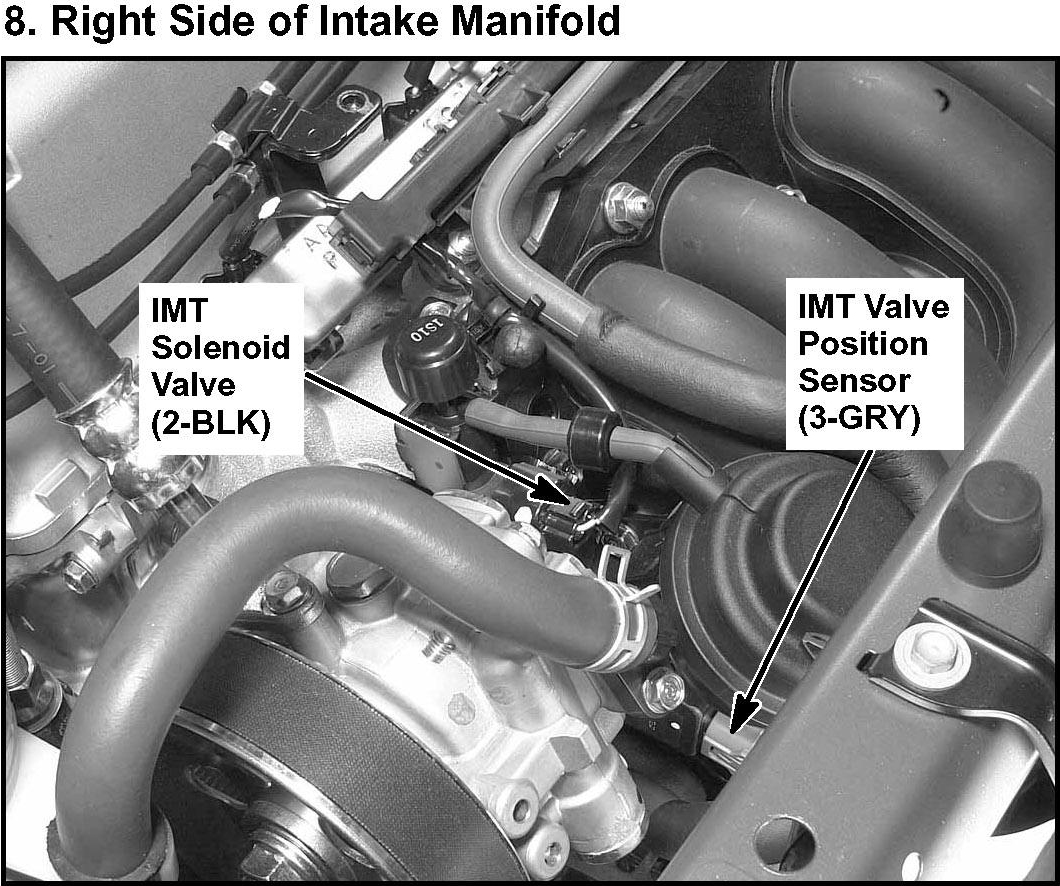

8. Right Side Of Intake Manifold:
