Pinout Values and Diagnostic Parameters

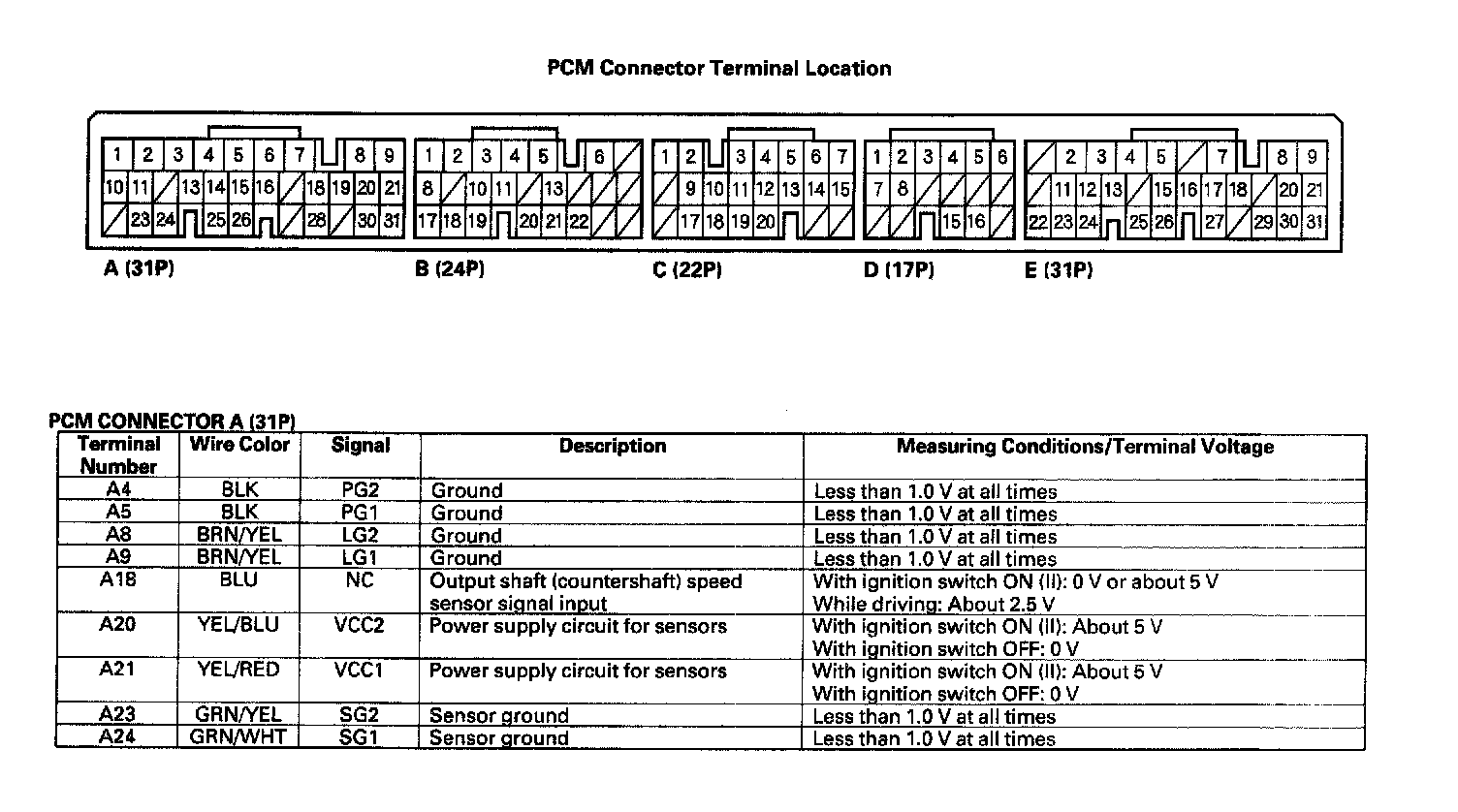

PCM Inputs and Outputs

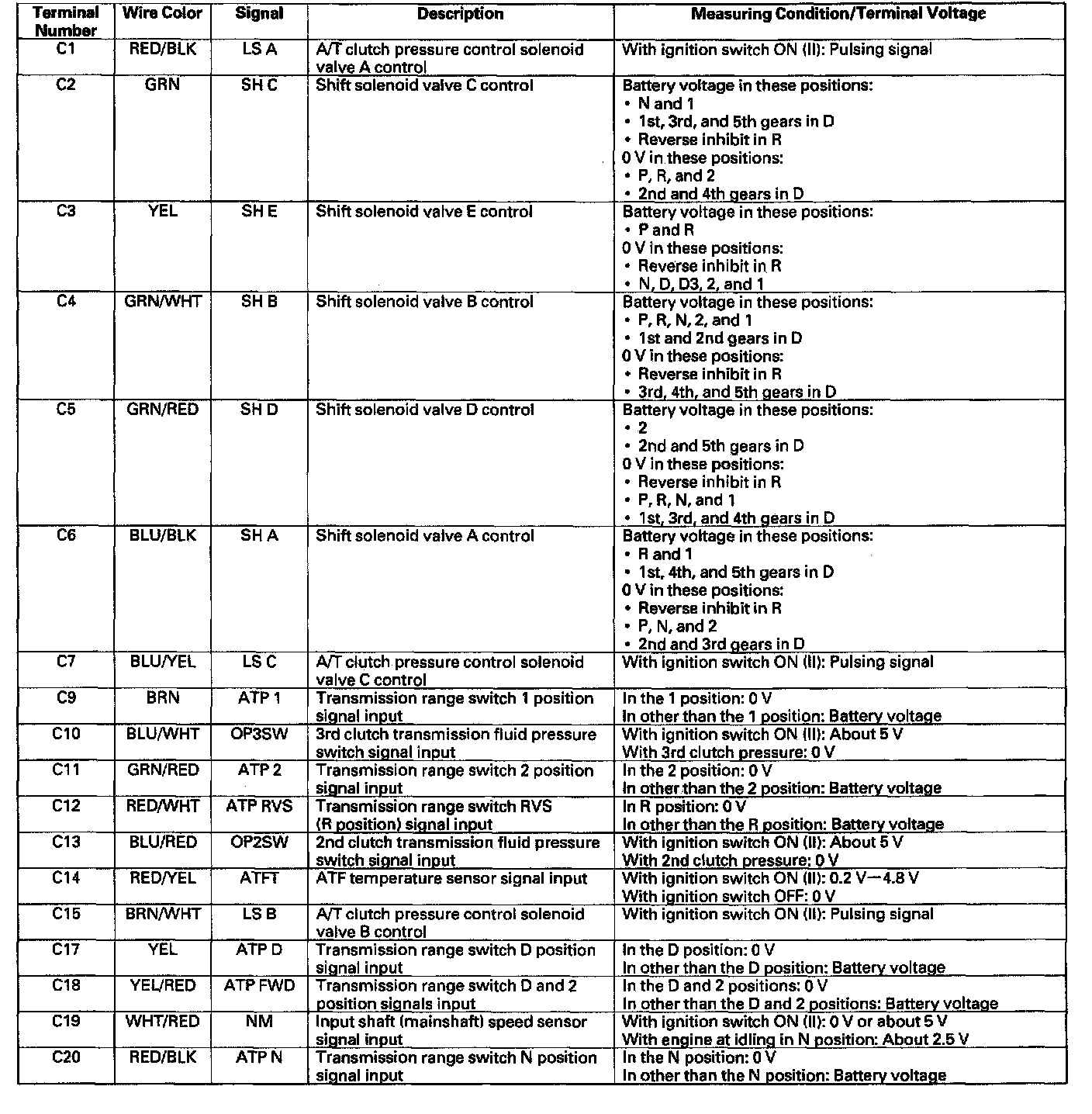

PCM CONNECTOR C (22P)
PCM Inputs and Outputs
