Wiper Control Module: Locations

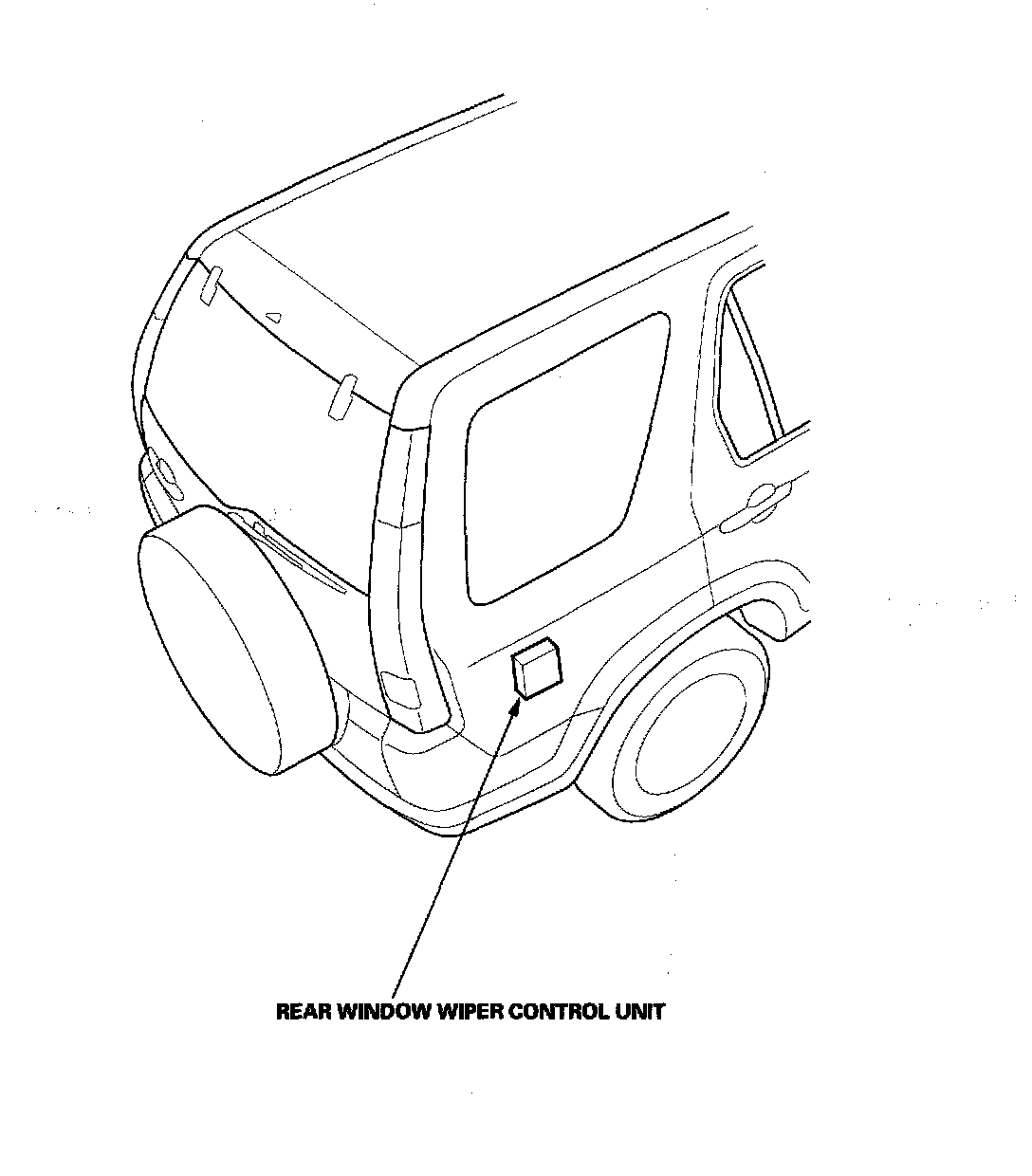

Relay And Control Unit Locations - Rear:



Hatch Glass Opener - Component Location Index:

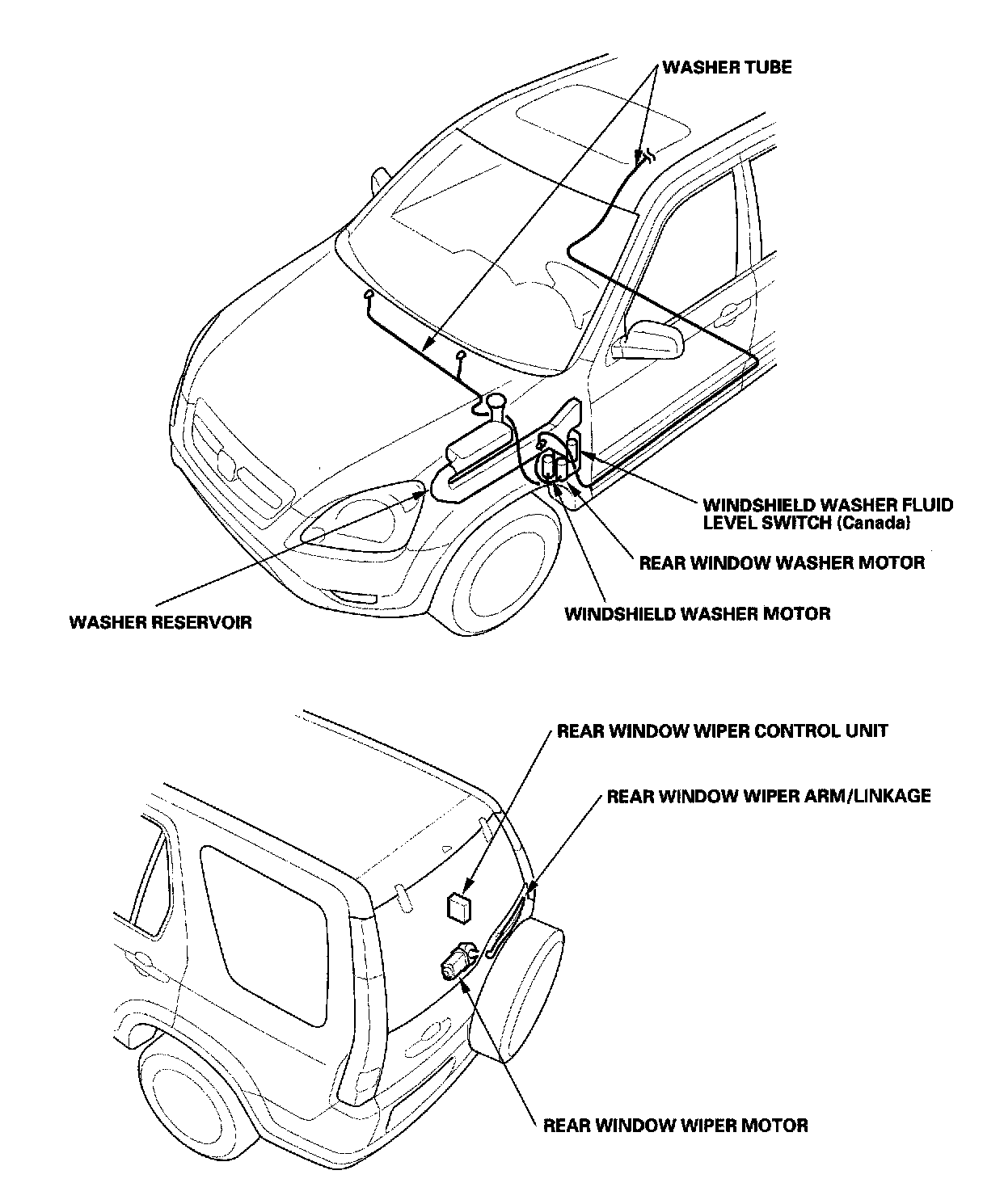

Wipers/Washers - Component Location Index:

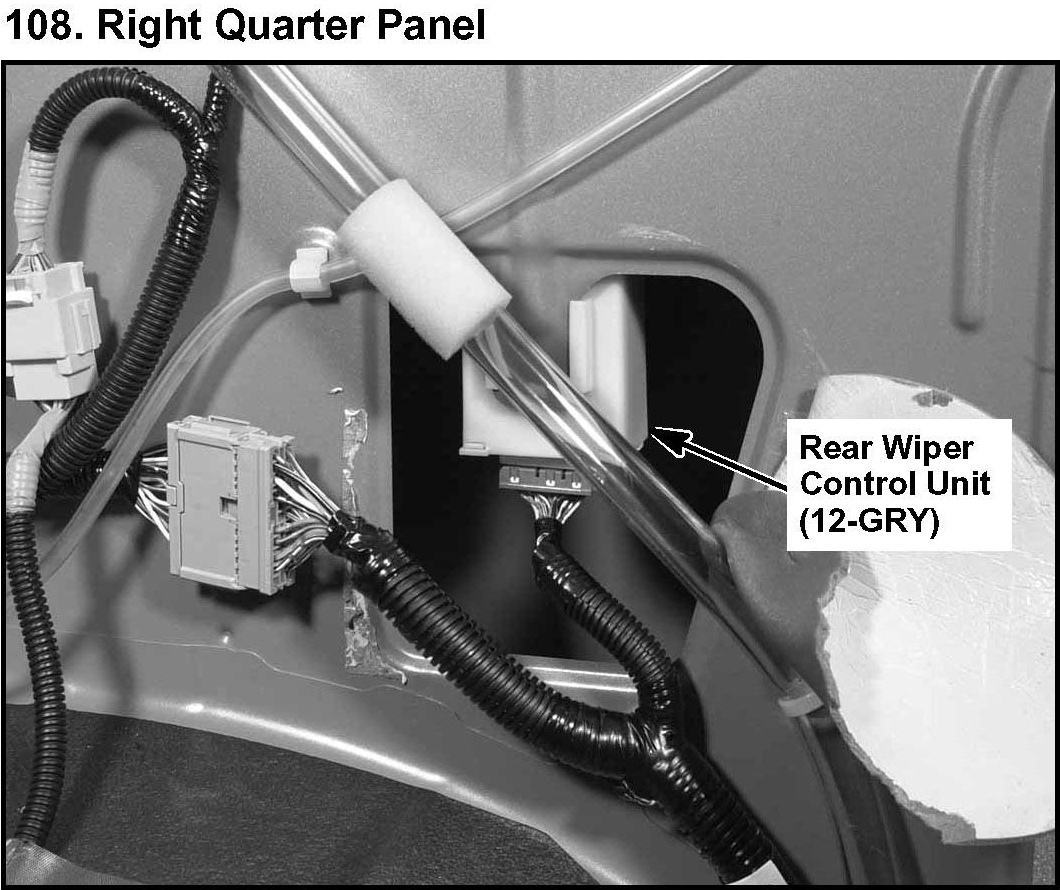

108. Right Quarter Panel:
